Powder metallurgy sintered metal precision 16mm dc motor micro mini planetary gearbox

Powder metallurgy sintered metal precision 16mm dc motor micro mini planetary gearbox

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2

≥100 Pieces

US $1.5

≥1000 Pieces

US $1

≥10000 Pieces

US $0.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: custom

Weight (KG):: 0.3

Place of Origin:: Guangdong, China

Brand Name:: YXPM

Outer diameter:: 16mm

Shape:: Round

Applicable drive motor:: 12. 24V DC motor

Output shaft shape:: D-shaped shaft, round shaft, H-shaped shaft

Gearbox type:: Planetary reduction gearbox

Gear material:: Powder Metallurgy metal

Turn around:: Forward rotation, reverse rotation, two-way rotation

Bearing form:: Oil-impregnated bearings or ball bearings are available

Suitable temperature:: -15℃ ~ 70℃

Product name:: sintered metal precision 16mm dc motor micro mini planetary gearbox

Quick Details

Gearing Arrangement:: Planetary

Output Torque:: custom

Input Speed:: 5-1500rpm (custom)

Output Speed:: custom

Weight (KG):: 0.3

Place of Origin:: Guangdong, China

Brand Name:: YXPM

Outer diameter:: 16mm

Shape:: Round

Applicable drive motor:: 12. 24V DC motor

Output shaft shape:: D-shaped shaft, round shaft, H-shaped shaft

Gearbox type:: Planetary reduction gearbox

Gear material:: Powder Metallurgy metal

Turn around:: Forward rotation, reverse rotation, two-way rotation

Bearing form:: Oil-impregnated bearings or ball bearings are available

Suitable temperature:: -15℃ ~ 70℃

Product name:: sintered metal precision 16mm dc motor micro mini planetary gearbox

Product Overview

Sintered micro planetary gearbox

We are manufacturer and exporter of sintered metal parts with 9 years experience, mainly produce miniature planetary gearbox, gear wheel, metal bushing, and other sintered structural metal components,any metal parts can be customized.according to your drawing.

Powder metallurgy(PM) is a state of the art metal-forming process used to produce net-shape components,which typically uses more than 97% of the starting raw material in the finished part. It is basically a “chipless”metalworking process, which save you about 80% cost than traditional process under the same quality.

FEATURES AT A GLANCE

Advantage of planetary gear systems

* Light weight,small size,

* High carrying capacity, long service life

* Smooth operation, low noise

* Large output torque, large speed ratio

* High efficiency, power diversion

* Multi-tooth meshing

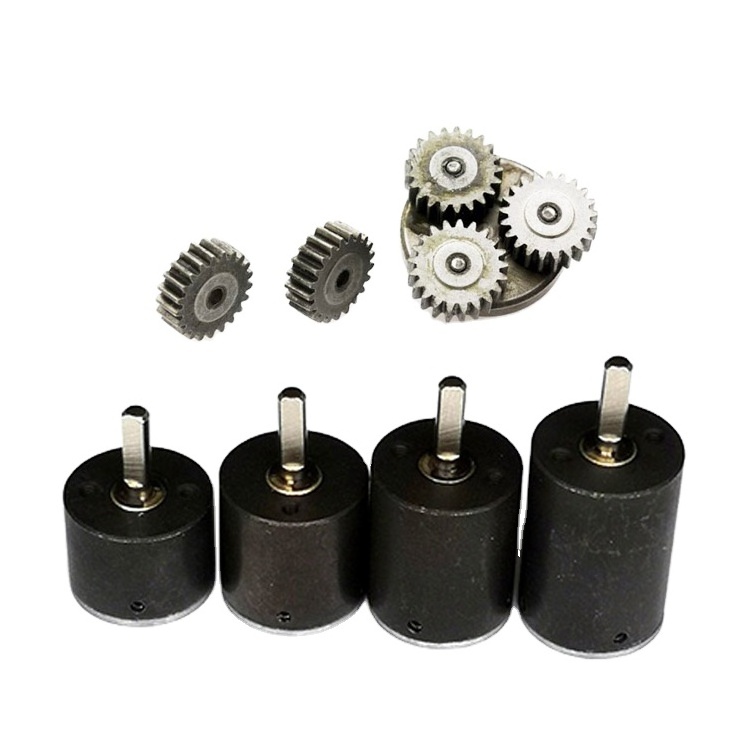

Planetary gearbox inner metal parts

Sintered internal ring gear

Sintered planetary gear

Features of the planetary gearbox

*The highest single-stage transmission ratio can reach 6:1 * Low backlash (﹤2.5°), low noise, high transmission efficiency (above 85% single stage) * Gear material and forming method can be selected arbitrarily, providing a variety of cost options * 16mm planetary gearbox (reducer) can be made into 12V, 24V DC planetary gear motor, according to your needs (voltage, power, speed, etc.) * Product solutions that can meet special characteristics such as high speed, high temperature, heavy load, and sealing * Higher load torque, you can choose from 16mm, 20mm, 22mm, 28mm, 30mm, 32mm, 36mm, 38mm, 42mm planetary gearbox series and customized size is available

Dimensions of the 16mm planetary gearbox

Product Specifications

Pinion Specifications

Gearbox model

The metal gear and Production Process can be customized. More details or custom please feel free to contact us.

Powder Metallurgy processing

Contrast for PM and Traditional Process

Item	PM	Precision casting	Machining operation	Stamping
Range of Applying material	High	Medium-high	Medium	Medium
Design Tolerance	High	High	High	Low
Small Size	High	Low	High	High
Thickness	High	High	Low	High
Supply Ability	High	Medium	Low	High
Raw material ultilization	High	Low	Low	Low

Contrast for PM and Precision Casting Molding

Property	PM	Precision Casting Molding
Surface Roughness	Ra1.6	Ra1.6
Minimum Thickness	0.8mm	2mm
Maximum Thickness	60mm	Unlimited
Minimum Diameter	0.5mm	2mm
Tolerance of Diameter	+/_0.01mm	+/_0.2mm
