Quick Details
-
Brand Name:
-
HECERE
-
Dimensions:
-
98.0 mm (L) x 65.0 mm (W )x 12.8 mm (H)
-
Weight:
-
70g
-
Model:
-
ACR122U
-
PC-linked Mode:
-
PC/SC
-
Communication Protocol:
-
USB CCID
-
Speed:
-
USB Full Speed (12 Mbps)
-
Standard:
-
ISO/IEC 18092 NFC, ISO 14443 Type A & B, FeliCa
-
Reading Distance:
-
2-5cm
-
Warranty:
-
1 Year
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO/IEC 18092 NFC, ISO 14443 Type A & B, FeliCa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
HECERE
-
Dimensions:
-
98.0 mm (L) x 65.0 mm (W )x 12.8 mm (H)
-
Weight:
-
70g
-
Model:
-
ACR122U
-
PC-linked Mode:
-
PC/SC
-
Communication Protocol:
-
USB CCID
-
Speed:
-
USB Full Speed (12 Mbps)
-
Standard:
-
ISO/IEC 18092 NFC, ISO 14443 Type A & B, FeliCa
-
Reading Distance:
-
2-5cm
-
Warranty:
-
1 Year
Products Description

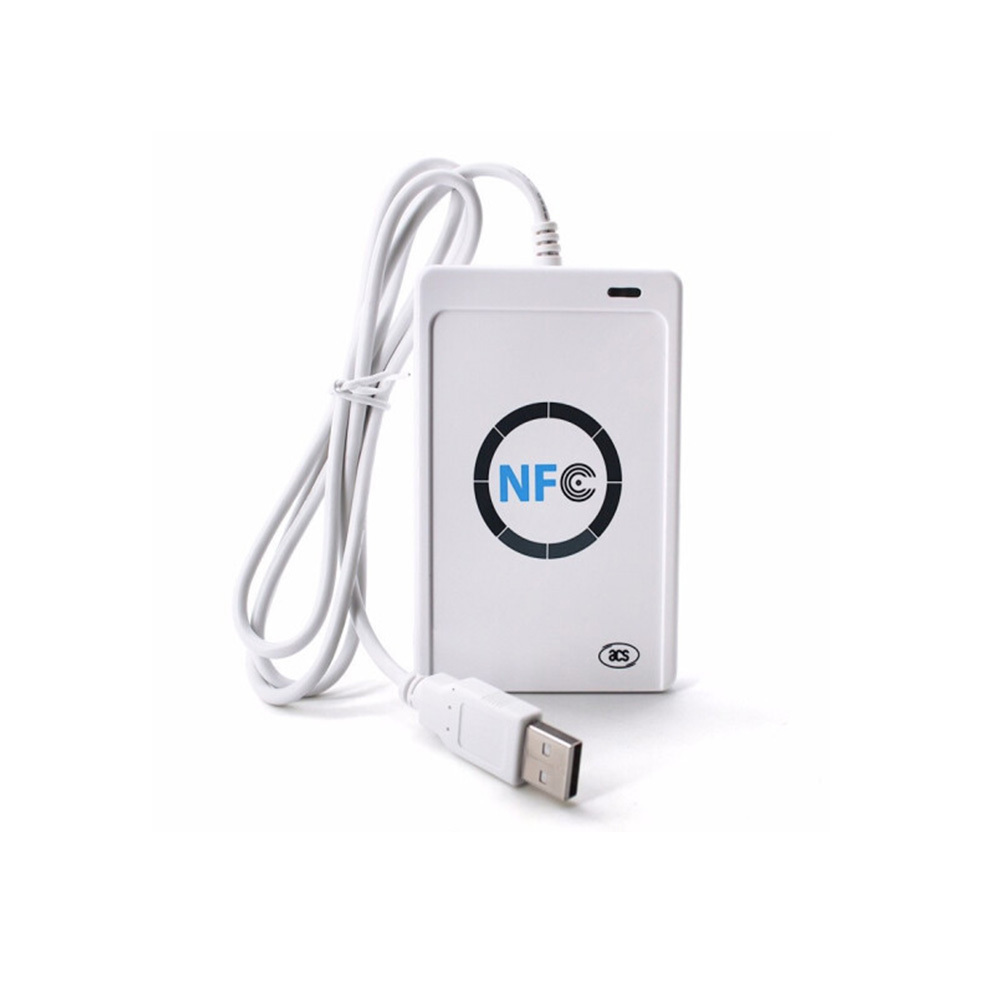

ACR122U
is a PC-linked contact-less smart card reader/writer developed on the 13.56 MHz contact-less technology. It is the world’s first
CCID
-compliant contact-less card reader/writer that follows both
ISO 14443
and
ISO 18092.
This device is designed to support not only MI-FA and
ISO 14443 Type A and B
cards but also FeliCa and NFC tags.
By making use of up to
424 Kbps read/write speed
for NFC tag access and up to
12 Mbps
for USB full speed,
ACR122U
can
efficiently r
ead from and write to various contact-less cards/tags. It is also
PC/SC-compliant
which allows inter-operability across different applications and platforms. You can experience the convenience in using ACR122U, with its compact size and the various features it offers, for applications such as payment, access control, time and attendance, and mass transit.
|
Dimensions
|
|
98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
|
|
|
|||
|
Weight
|
|
70 g
|
|
|
|||
|
Color
|
|
Pearl White
|
|
|
|||
|
Protocol
|
|
ISO 14443 T=CL for ISO 14443-4 compliant cards
|
|
|
|||
|
Operating Frequency
|
|
13.56mhz
|
|
|
|||
|
Operating Distance
|
|
Up to 50 mm (depending on tag type)
|
|
|
|||
|
PC-linked Mode
|
|
PC/SC,CT-API (through wrapper on top of PC/SC)
|
|
|
|||
|
Communication Type
|
|
USB 2.0 Full Speed Interface,CCID
|
|
|
|||
|
Model
|
|
ACR122u
|
|
|
|||
Features:
* USB 2.0 Full Speed Interface
* CCID Compliance
* Smart Card Re ader: * Rea d/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals: * User-controllable bi-color LED
* User-controllable
* USB 2.0 Full Speed Interface
* CCID Compliance
* Smart Card Re ader: * Rea d/write speed up to 424 kbps
* Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag
type)
* Supports ISO 14443 Type A and B cards, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
* Built-in anti-collision feature (only 1 tag is accessed at any time)
* Application Programming Interface: * Supports PC/SC
* Supports CT-API (through wrapper on top of PC/SC)
* Peripherals: * User-controllable bi-color LED
* User-controllable
Physical Characteristics :
Dimensions .................................... 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight............................................ 70 g
Color .............................................. Pearl White
USB Host Interface
Protocol.......................................... USB CCID
Connector Type.............................. Standard Type A
Power Source................................. From USB port
Speed............................................ . USB Full Speed (12 Mbps)
Supply Voltage............................... 5 V
Supply Current .............................. Max. 200 mA
Cable Length.................................. 1.0 m, Fixed
Contactless Smart Card Interface
Standard ........................................ ISO/IEC 18092 NFC, ISO 14443 Type A & B, MI FA, FeliCa
Protocol.......................................... ISO 14443 T=CL for ISO 14443-4 compliant cards
....................................................... T=CL Emulation for MI- FA Classic, ISO 18092, FeliCa and NFC Tags
Operating Frequency ..................... 13.56 MHz
Operating Distance ........................ Up to 50 mm (depending on tag type)
Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps
Antenna Size.................................. 50 mm x 40 mm
Built-in Peripherals
LED................................................ 1 bi-color: Red and Green
Buzzer............................................ Monotone
Application Programming Interface
PC-linked Mode.............................. PC/SC
....................................................... CT-API (through wrapper on top of PC/SC)
Operating Conditions
Temperature .................................. 0 °C – 60 °C
Humidity ......................................... Max. 90% (non-condensing)
MTBF ............................................. 408,500 hrs
Certifications/Compliance
EN 60950/IEC 60950, ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS 2, REACH
VCCI (Japan), KC (Korea), Microsoft® WHQL
Dimensions .................................... 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight............................................ 70 g
Color .............................................. Pearl White
USB Host Interface
Protocol.......................................... USB CCID
Connector Type.............................. Standard Type A
Power Source................................. From USB port
Speed............................................ . USB Full Speed (12 Mbps)
Supply Voltage............................... 5 V
Supply Current .............................. Max. 200 mA
Cable Length.................................. 1.0 m, Fixed
Contactless Smart Card Interface
Standard ........................................ ISO/IEC 18092 NFC, ISO 14443 Type A & B, MI FA, FeliCa
Protocol.......................................... ISO 14443 T=CL for ISO 14443-4 compliant cards
....................................................... T=CL Emulation for MI- FA Classic, ISO 18092, FeliCa and NFC Tags
Operating Frequency ..................... 13.56 MHz
Operating Distance ........................ Up to 50 mm (depending on tag type)
Smart Card Read/Write Speed....... 106 Kbps, 212 Kbps, 424 Kbps
Antenna Size.................................. 50 mm x 40 mm
Built-in Peripherals
LED................................................ 1 bi-color: Red and Green
Buzzer............................................ Monotone
Application Programming Interface
PC-linked Mode.............................. PC/SC
....................................................... CT-API (through wrapper on top of PC/SC)
Operating Conditions
Temperature .................................. 0 °C – 60 °C
Humidity ......................................... Max. 90% (non-condensing)
MTBF ............................................. 408,500 hrs
Certifications/Compliance
EN 60950/IEC 60950, ISO 14443, ISO 18092, USB Full Speed, PC/SC, CCID, CE, FCC, RoHS 2, REACH
VCCI (Japan), KC (Korea), Microsoft® WHQL
