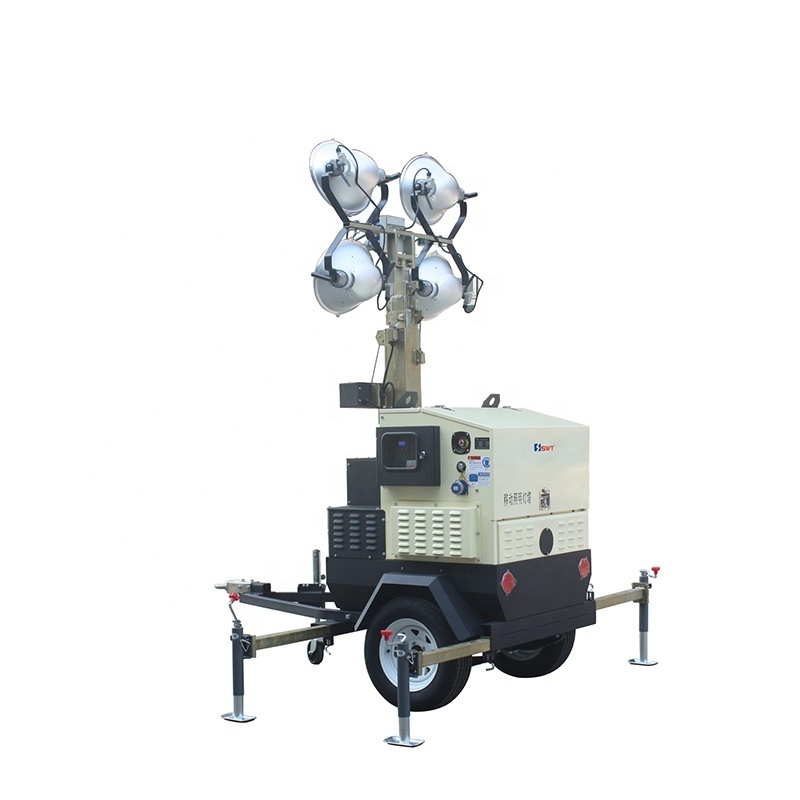

1. IP65 Metal Halide lights.
2. Hot Dip Galvannized mast for longer service time, 359° rotating manually.
3. User-friendly control panel , with tempered glass window for clear check and protection.
4. Fast accessible emergency button.
5. IP 44 outdoor electric plugs and sockets.
6. Rugged Canopy, galvanized steel board with anti-rust painting to stand with varied weather，widely accessible for easy maintenance.
7.
A
style tow frame with supporting jack.
8. Four 5000lb individual stabilizing legs.
9. 14" Sunraysia rim with regular tires.
- Product Details
- {{item.text}}
Quick Details
-
IP Rating:
-
IP65
-
CRI (Ra>):
-
65-70
-
Input Voltage(V):
-
230V/240V
-
Lamp Luminous Flux(lm):
-
110000
-
Warranty(Year):
-
12 Months/1000 Hours
-
Working Lifetime(Hour):
-
10000
-
Working Temperature(℃):
-
-30~50
-
Frequency:
-
50HZ/60HZ
-
Engine type:
-
KUBOTA D1105-E2BG-CHN-1
-
Alternator type:
-
MECC ALTE LT3N-130/4
-
Controller:
-
Smart gen
-
Lamps:
-
4X1000W metal halide lamps
-
Mast:
-
9m Electric Mast
-
Fuel Tank:
-
68L
-
Continuous Running:
-
28/23 Hours (100% Load)
-
Size:
-
2420mmX1360mmX3050mm
-
Weight:
-
850kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SWT
-
Model Number:
-
I9T4000
-
IP Rating:
-
IP65
-
CRI (Ra>):
-
65-70
-
Input Voltage(V):
-
230V/240V
-
Lamp Luminous Flux(lm):
-
110000
-
Warranty(Year):
-
12 Months/1000 Hours
-
Working Lifetime(Hour):
-
10000
-
Working Temperature(℃):
-
-30~50
-
Frequency:
-
50HZ/60HZ
-
Engine type:
-
KUBOTA D1105-E2BG-CHN-1
-
Alternator type:
-
MECC ALTE LT3N-130/4
-
Controller:
-
Smart gen
-
Lamps:
-
4X1000W metal halide lamps
-
Mast:
-
9m Electric Mast
-
Fuel Tank:
-
68L
-
Continuous Running:
-
28/23 Hours (100% Load)
-
Size:
-
2420mmX1360mmX3050mm
-
Weight:
-
850kg
PRODUCT SPECIFICATIONS
|
Place of origin
|
China
|
|
|
|
|||
|
Brand
|
SWT
|
|
|
|
|||
|
Model
|
i9T4000
|
|
|
|
|||
|
Rated voltage
|
230v/240v
|
|
|
|
|||
|
Light source
|
Led
|
|
|
|
|||
|
Color rendering index
|
70-85
|
|
|
|
|||
|
Operating temperature
|
-30℃~50℃
|
|
|
|
|||
|
Frequency
|
50hz/60hz
|
|
|
|
|||
|
Engine
|
Kubota D1105
|
|
|
|
|||
|
Alternator
|
Meccalte LT3n-130/4
|
|
|
|
|||
Light tower three views
Products Information
Features
|
Dimension
|
Length
|
2420mm
|
|
Dimension
|
Width
|
1360mm
|
|
2
|
Height
|
3050mm
|
|
3
|
Full extending height
|
8.8m
|
|
4
|
Generator set power(kW, 1500rpm/1800rpm)
|
6kW/7.5kW
|
|
5
|
Gross Weight
|
850kg
|
|
Engine
|
Model
|
D1105-E2BG-CHN-1 (KUBOTA）
|
|
7
|
Speed(rpm)
|
1500/1800
|
|
8
|
Number of cylinders
|
3
|
|
|
Engine character
|
4 cycles, water-cooled diesel
|
|
|
Combustion System
|
E-TVS
|
|
|
Engine aspiration
|
Naturally aspirated
|
|
|
Emission level
|
Regular
|
|
Alternator
|
Model
|
LT3N-130/4 （MECCALTE）
|
|
|
Frequency(Hz)
|
50/60
|
|
|
Rated Voltage(V)
|
230V (50HZ), 240V (60HZ) AC
|
|
|
Insulation
|
Class H
|
|
|
Protection grade
|
IP23
|
|
Mast & Light
|
Type of Lights
|
Metal Halide
|
|
|
Light fixture
|
Oval
|
|
|
Luminous flux(LM)
|
440000(4×110000)LM
|
|
|
Number & power of lights
|
4x1000W
|
|
|
Number of mast sections
|
6
|
|
|
Mast direction
|
Upright
|
|
|
Mast extention
|
Electrical (Vertical, 3500 lb winch)
|
|
|
Mast rotation
|
359° Manual rotation with self locking
|
|
|
Light tilt
|
Maually
|
|
Trailer
|
Trailer suspension & axle with brakes
|
Leaf springs & single axle without brake
|
|
|
Tow bar
|
A style frame with a supporting jack
|
|
|
Stabilizing legs & number
|
4pcs drawable bar with manual jacks
|
|
|
Wheels' rim size & tire
|
14 rim with regular tires
|
|
|
Tow adapter
|
2" ball coupler or 3" pintle ring
|
|
|
Tail lights
|
Tail reflector
|
|
|
Max. towing speed
|
80km/h
|
|
Addtiional Features
|
Fuel tank type
|
Iron fuel tank（ Single-deck）
|
|
|
Fuel tank capacity
|
100 liters
|
|
|
Operating hours with full fuel
|
40/36hours
|
|
|
Wires & electric components
|
Regular
|
|
|
Generator starting type or controller
|
HGM1790N（SMARTGEN）
|
|
|
Power outlet sockets
|
1 unit of Euro standard 16A single phase power outlet socket
|
|
|
Maintenance tool
|
Option
|
|
|
Max. against wind when fully extended
|
17.5m/s
|
|
|
Acoustic pressure
|
72dB(A) at 7m away
|
|
|
Standard color
|
Optional regular canopy's color, galvanized masts, tow bar & stabilizing legs
|
|
|
Max. load qty in 40 HC
|
16
|
