Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Model Number:
-
HW13, HW16, HW22, HW32
-
Dimension(Long * Breadth * High):
-
4492*3185*2950
-
Engine Model:
-
Shangchai SC8D143G2B1/Customization
-
Rated power:
-
95.5/1900 108/1900
-
Ground specific pressure (kpa):
-
0.063
-
Fuel tank (L):
-
300
-
Blade type:
-
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
-
Color:
-
Yellow/Customizable
Quick Details
-
Machine Weight:
-
13700 KG
-
Dozing Capacity:
-
3.4m³, 3.7m³
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HW
-
Model Number:
-
HW13, HW16, HW22, HW32
-
Dimension(Long * Breadth * High):
-
4492*3185*2950
-
Engine Model:
-
Shangchai SC8D143G2B1/Customization
-
Rated power:
-
95.5/1900 108/1900
-
Ground specific pressure (kpa):
-
0.063
-
Fuel tank (L):
-
300
-
Blade type:
-
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
-
Color:
-
Yellow/Customizable
My friend,Welcome to Shandong HENGWANG Group Co., Ltd.
Get exclusive services and exclusive discounted prices.

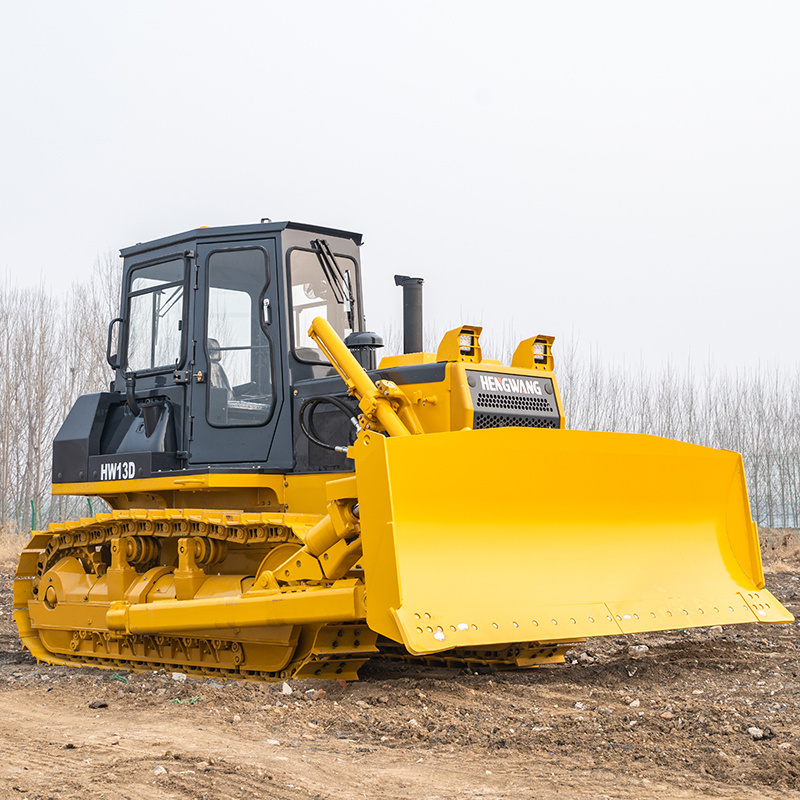

| HW13 Mini Bulldozer | |||
| Operating weight (Kg) | 13700 | Number of track shoes (one side/piece) | 38 |
| Minimum turning radius (mm) | 4466 | Chain track pitch (mm) | 188 |
| Ground length(mm) | 2365 | Number of rollers(one side) | 6 |
| Ground specific pressure (kpa) | 0.063 | Fuel tank (L) | 300 |
| Engine model | Shangchai SC8D143G2B1(China-II)/SC8DK(China-III)/Cummins 6CTA8.3-C145/Customization | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
| Rated power/rated speed (kW/rpm) | 95.5/1900 108/1900 | Dozing capacity (m³) | Straight tilt blade 3.7 Angle blade 3.4 |
| Overall dimensions of machine (mm) | 4492*3185*2950 | Ma× drop below ground of blade(mm) | 590 |
| Forward speed (km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | Lift height of blade(mm) | 930 |
| Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | Ripper type | Three-shank ripper |
| Track center distance (mm) | 1880 | Ripping depth of ripper(mm) | 467 |
| Track shoe width (mm) | 460 | Lifting height of ripper(mm) | 559 |
| HW16 (Standard version)Bulldozer | |||
| Operating weight (Kg) | 17000 | Number of track shoes (one side/piece) | 38 |
| Minimum turning radius (mm) | 4466 | Chain track pitch (mm) | 203.2 |
| Ground length(mm) | 2430 | Number of rollers | 6 |
| (one side) | |||
| Ground specific pressure (kpa) | 0.067 | Fuel tank (L) | 320 |
| Engine model | WD10G178E25/Customization | Working hydraulic tank(L) | 108 |
| Rated power/rated speed (kW/rpm) | 131/1850 | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
| Overall dimensions of machine (mm) | 5140*3388*3032 | Blade Capacity (m³) | 4.5/4.3/Customization |
| Forward speed (km/h) | F1:0-3.29 F2:0-5.82 F3:0-9.63 | Ripper type | Single-shank three-shank |
| Reversing speed (km/h) | R1:0-4.28 R2:0-7.59 R3:0-12.53 | Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) |
| Track center distance (mm) | 1880 | Winch type | Hydraulic winch/Customization |
| Track shoe width (mm) | 510/560 | Winch motor model | INM7-3600D480111/Customization |
| HW22 (Standard version)Bulldozer | |||
| Operating weight (Kg) | 23450( With tow frame) | Chain track pitch (mm) | 215.9 |
| Minimum turning radius (mm) | 3300 | Number of rollers (one side) | 6 |
| Ground specific pressure (kpa) | 0.077 | Number of supporting wheels (one side) | 6 |
| Engine model | NT885-C280S10/Customization | Fuel tank (L) | 450 |
| Rated power/rated speed (kW/rpm) | 175/1800 | Working hydraulic tank(L) | 110 |
| Overall dimensions of machine (mm) | 5750*3725*3402 | Blade type | Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
| Forward speed (km/h) | F1:0-3.6 F2:0-6.5 F3:0-11.2 | Blade Capacity (m³) | 4.5/4.3/Customization |
| Reversing speed (km/h) | R1:0-4.3 R2:0-7.7 R3:0-13.2 | Ripper type | Single-shank three-shank |
| Track center distance (mm) | 2000 | Ripping depth (mm) | 695 (Single-shank) and 666 (Three-shank) |
| Track shoe width (mm) | 560 | Winch type | Hydraulic winch/Customization |
| Number of track shoes(one side/piece) | 38 | Winch motor model | INM7-3600D480111/Customization |
Advantage:
The HW13, HW16 ,HW22 and HW32 bulldozers have reinforced chassis, arms, and blades , which can handle the most challenging large obstacles, such as large rocks and boulders.
*The blade is thicker, and the arm coating is improved to enhance strength and durability.
*It is particularly suitable for heavy mining applications.
*It is one of the best-selling products of Hengwang in Africa, where large-scale mining is prevalent.
*Widely used in mining, rock, coal, wetland, farm, water conservancy, power station, scrap station, transportation and other use scenarios.
