Product name:
-

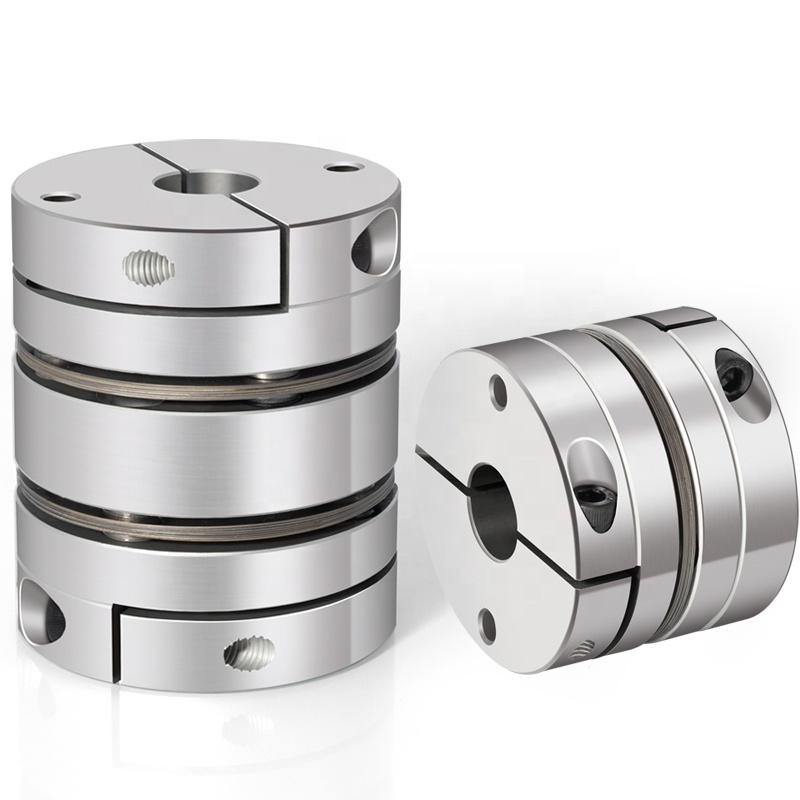

Flexible Couplings Coupler
-
Type:
-
Flexible Clamp Coupling
-
Body Material:
-
Aluminum Alloy
-
Model:
-
MP-D32L29
-
Diameter:
-
32mm
-
Length:
-
29mm
-
Bore size of hubs:
-
4-15mm
-
Fixed type:
-
Clamp Types
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, Advertising Company
-
Structure:
-
Jaw / Spider
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
greenleaf
-
Place of Origin:
-
china,lishui
-
Product name:
-
Flexible Couplings Coupler
-
Type:
-
Flexible Clamp Coupling
-
Body Material:
-
Aluminum Alloy
-
Model:
-
MP-D32L29
-
Diameter:
-
32mm
-
Length:
-
29mm
-
Bore size of hubs:
-
4-15mm
-
Fixed type:
-
Clamp Types
Product Description
Why Do We Need Couplings?
1，The most important role of a coupling (shaft coupling) is to connect the drive shaft of a motor etc. with the driven shaft of a ball screw etc. to transmit the motor power to the driven shaft, as shown in the figure below.
2，The offset between the cores of the driving shaft and the driven shaft is called misalignment. There are three different types of misalignment: lateral, angular, and axial (offset in axial direction).
caused
vibration, noise, uneven wear on the bearing and so on.
Couplings provide tolerance for the misalignment remaining after assembly.
3,Jaw type couplings have elastic bodies such as elastomer built in as an intermediate component to absorb impacts and vibration.
Our three type coupling's features
Jay type Resin sleeve placed in the middle of the structure provides cushioning that damps vibration and absorbs shock.
It/s
excellent for
HighTorque\General purpose motor
very good at
Allowable Misalignment\Cost\
Vibration absorption\Servo motor\
Stepping Motor
good at
ZeroBacklash\
Torsional Stiffness.
Disk Type as The flexibility of disc (metal spring) allows misalignments.
HighTorque\
AllowableMisalignment\
Servomotor\Stepping Motor,
good at
cost.
Slit Type Slitting metal cylinders gives the flexibility to accommodate varying degrees of misalignments.
Zero Backlash,
very good at
Torsional Stiffness.
good at
High Torque\ Allowable
Misalignment\
Cost\Servomotor\Stepping Motor
Size Information
Ball screw model available
|
Pitch 1mm
|
SFK00401,SFK00601,SFK00801
|
|
|
|
|||
|
Pitch 2mm
|
SFK00802,SFK01002,SFK01202,SFK01402,,SFK01602,SFK02002,SFK02502
|
|
|
|
|||
|
Pitch 4mm
|
SFK01004,SFU1204, SFU1604, SFU2004, SFU2504 for example
|
|
|
|
|||
|
Pitch 5mm
|
SFU1605, SFU2005, SFU2505, SFU3205, SFU4005, SFU5005 for example
|
|
|
|
|||
|
Pitch 8mm
|
SFU2508,SFU3208,SFU4008 for example
|
|
|
|
|||
|
Pitch 10mm
|
SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310, SFU8010 for example
|
|
|
|
|||
|
Double nut
|
DFU1604,DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010, DFU6310, DFU8010 for example
|
|
|
|
|||
|
Big lead
|
SFS1616,SFS1620,SFS2525,SFE1616,SFE2020,SFE2525,SFE3232,SFE4040,
SFE5050,SFY1616,SFY1632,SFY2020,SFY2040,SFY2525,SFY2550,SFY3232,SFY3264,SFY4040,SFY4080,SFY5050,SFY50100 for example
|
|
|
|
|||
|
Ball screw parts
|
Ball screw nut, nut housing,ball screw support BK,BF,EK,EF,FK,FF，motor bracket
|
|
|
|
|||
|
End machining
|
As your drawing
|
|
|
|
|||
|
Left and right thread
|
SFU,DFU,SFI,DFI can made
|
|
|
|
|||
|
Non standard ball screw
|
First pls sent yr drawing or product requirements to us ,we'll communicate with engineers
|
|
|
|
|||
