Quick Details
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
203dpi(8 dots/mm)
-
Brand Name:
-
Cashino
-
Place of Origin:
-
Fujian, China
-
Power::
-
DC5-9V,3A;DC12V/24V,2A
-
Size:
-
122*115.5*66mm(W*L*H)
-
Installation port size:
-
116.3*110mm(W*L)
-
Insert Depth:
-
56mm
-
Paper Thickness:
-
0.055-0.09mm
-
Effective Printing Width:
-
48mm
-
Paper Roll Diameter:
-
Max:50mm Min:13mm
-
Interface:
-
Serial(RS232/TTL)+USB Cash Drawer port(12V/1A)
-
TPH:
-
100km
-
Roll Core Inner Diameter:
-
13mm(min)
Quick Details
-
Interface Type:
-
Serial(RS232/TTL)+USB Cash Drawer port(12V/1A)
-
Max Paper Size:
-
58mm
-
Black Print Speed:
-
90mm/s / 200mm/s
-
Color Print Speed:
-
Null
-
Max. Resolution:
-
203dpi(8 dots/mm)
-
Brand Name:
-
Cashino
-
Place of Origin:
-
Fujian, China
-
Power::
-
DC5-9V,3A;DC12V/24V,2A
-
Size:
-
122*115.5*66mm(W*L*H)
-
Installation port size:
-
116.3*110mm(W*L)
-
Insert Depth:
-
56mm
-
Paper Thickness:
-
0.055-0.09mm
-
Effective Printing Width:
-
48mm
-
Paper Roll Diameter:
-
Max:50mm Min:13mm
-
Interface:
-
Serial(RS232/TTL)+USB Cash Drawer port(12V/1A)
-
TPH:
-
100km
-
Roll Core Inner Diameter:
-
13mm(min)

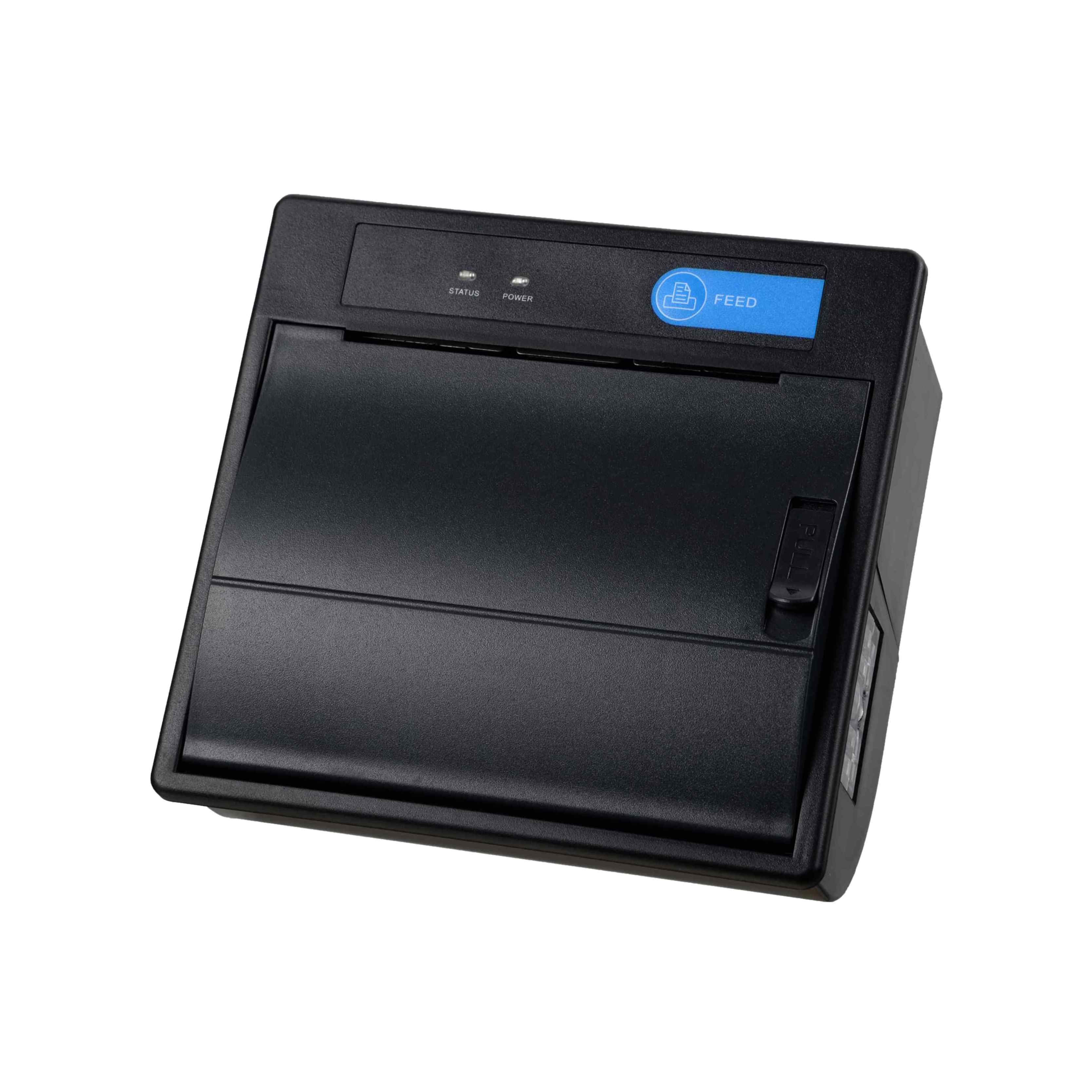

Product Display
Product Parameters
|
print mode
|
Thermal line printing
|
|
print width
|
72mm
|
|
print resolution
|
203dpi(8dots/mm)
|
|
print speed
|
90mm/s ; 120mm/s
|
|
media roll outer diameter max
|
60mm
|
|
Paper Thickness
|
55 to 90µm
|
|
TPH Life
|
100km
|
|
Cutter life
|
1,000,000 cuts or more
|
|
Interface
|
RS232/TTL+USB Drawer
|
|
Dimensions(WxLxH)
|
122x115.5x66mm
|
|
Installation port size (WxL)
|
116.3x110mm
|
|
Insert Depth size
|
56mm
|
|
Power
|
5-9V/12V/24V
|
Certifications
Exhibition
Our Customer Says
Payment & Delivery
FAQ
Q1.How could I get a sample?
A1:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2.Sample time?
A2:Existing items: Within 1-2 days.
Q3.Whether you could make our brand on your products?
A3:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4.Whether you could make your products by our color?
A4:Yes, The color of products can be customized if you can meet our MOQ.
Q5.How to guarantee the quality of your products?
A5: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
