Quick Details
-
Brand Name:
-
Clean-Link
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
2 KG
-
Warranty:
-
1 Month
-
After-sales Service Provided:
-
No overseas service provided
-
Frame:
-
Foldaway paper,Galvanization or Aluminum
-
class:
-
G3,G4,F5,F6,F7,F8
-
Temp. resistance:
-
80°c
-
Thickness:
-
22mm-25mm
-
Dimension:
-
595*592*22/495*595*22 etc.
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO
Quick Details
-
Efficiency:
-
G4-F8
-
Porosity:
-
1-10um
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Clean-Link
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
2 KG
-
Warranty:
-
1 Month
-
After-sales Service Provided:
-
No overseas service provided
-
Frame:
-
Foldaway paper,Galvanization or Aluminum
-
class:
-
G3,G4,F5,F6,F7,F8
-
Temp. resistance:
-
80°c
-
Thickness:
-
22mm-25mm
-
Dimension:
-
595*592*22/495*595*22 etc.
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO

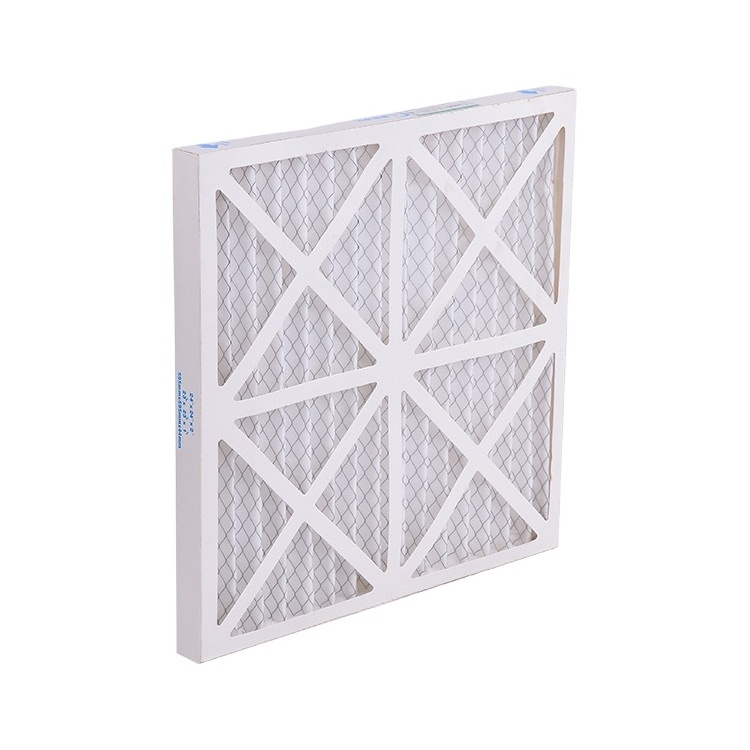

Cardboard synthetic fibre conditioning system exhaust pleated coalescing filter
1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times’ filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80℃;
5.The rank of the filtration: G4.F5.F6.F7.F8.
1.Large dust holding capacity
2.The low pressure loss in the initial period
3.Lager air flow
Note: Other specifications are available on request.
|
N ormal size |
A ctual size W*H*W(mm) |
Rated air flow( m³ /h) |
||
|
|
|
1.5m/s |
2.5m/s |
3.0m/s |
|
24*24*1 |
595*595*22 |
2040 |
3400 |
- |
|
20*24*1 |
495*595*22 |
1785 |
2975 |
- |
|
20*20*1 |
495*495*22 |
1445 |
2380 |
- |
|
12*24*1 |
287*595*22 |
1020 |
1700 |
- |
|
24*24*2 |
595*595*44 |
2040 |
3400 |
4250 |
|
20*24*2 |
495*595*44 |
1700 |
2805 |
3570 |
|
20*20*2 |
495*495*44 |
1445 |
2380 |
2975 |
|
16*24*2 |
390*595*44 |
1445 |
2380 |
2675 |
|
16*20*2 |
390*495*44 |
1105 |
1870 |
2380 |
|
12*24*2 |
287*595*44 |
1020 |
1700 |
2125 |
|
24*24*4 |
595*595*90 |
2040 |
3400 |
4250 |
|
20*20*4 |
495*495*90 |
1455 |
2380 |
2975 |
|
12*24*4 |
287*595*90 |
1020 |
1700 |
2125 |
1. We have specialized in the export of air filters for over 11 years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand
4. The dimension can be customized .
5. The products have passed ISO90012008 and SGS certification.
6. With independent R&D and design capablities .
