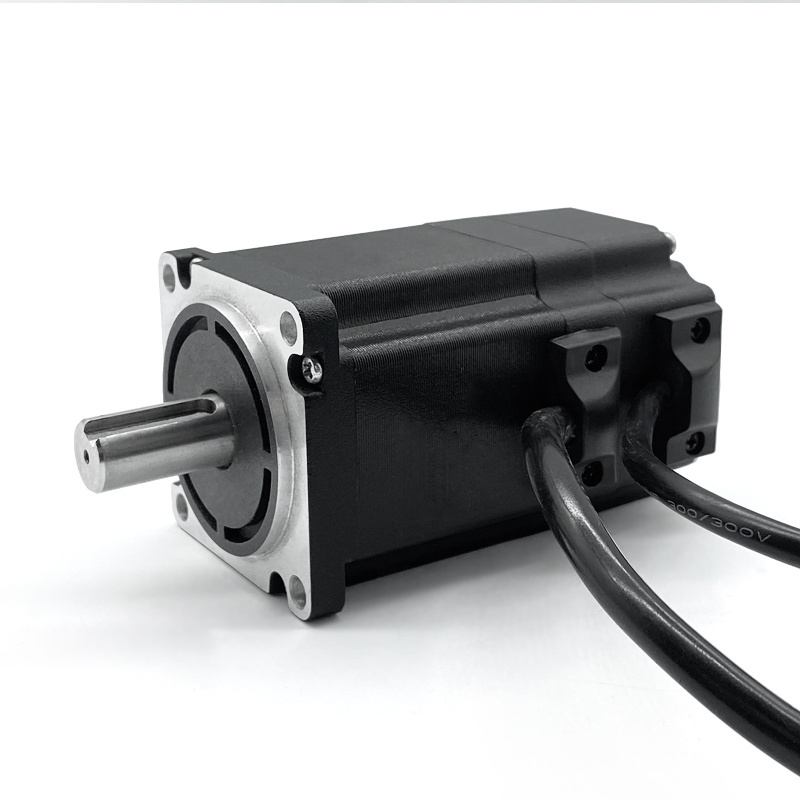

Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JSS
-
Model Number:
-
60BL
-
Torque:
-
3
-
Certification:
-
CE
-
Rated voltage:
-
24V
-
Peak current:
-
4.3A
-
Rated Power:
-
78W
-
Rated Torque:
-
0.25 N.m
-
Peak Torque:
-
0.75 N.m
-
Rated speed:
-
3000 Rpm
-
Body length:
-
78mm
-
Mass:
-
0.85 Kg
Quick Details
-
Speed(RPM):
-
custom
-
Continuous Current(A):
-
custom
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
JSS
-
Model Number:
-
60BL
-
Torque:
-
3
-
Certification:
-
CE
-
Rated voltage:
-
24V
-
Peak current:
-
4.3A
-
Rated Power:
-
78W
-
Rated Torque:
-
0.25 N.m
-
Peak Torque:
-
0.75 N.m
-
Rated speed:
-
3000 Rpm
-
Body length:
-
78mm
-
Mass:
-
0.85 Kg
Products Description
|
|
JSS60BSA080B030X
|
JSS60BSA080D030X
|
JSS60BSA100B030X
|
||
|
Number of poles
|
8
|
|
|
||
|
Number of phases
|
3
|
|
|
||
|
Rated voltage (VDC )
|
24
|
48
|
24
|
||
|
Rated speed ( RPM )
|
3000
|
3000
|
3000
|
||
|
Continuous stall torque ( N.m)
|
0.30
|
0.36
|
0.60
|
||
|
Rated torque ( N.m)
|
0.25
|
0.30
|
0.50
|
||
|
Rated power (W)
|
78
|
94
|
157
|
||
|
Peak torque (N.m)
|
0.75
|
0.90
|
1.50
|
||
|
Peak current (A)
|
13.08
|
7.85
|
26.15
|
||
|
Torque costant ( Nm/A)
|
0.057
|
0.115
|
0.057
|
||
|
Back EMF (V/KRPM )
|
4.095
|
8.190
|
4.095
|
||
|
Rotor inertia (g.cm2)
|
0.24
|
0.24
|
0.48
|
||
|
Motor length (mm)
|
78
|
78
|
99
|
||
|
Weight (Kg)
|
0.9
|
0.9
|
1.3
|
||
|
|
JSS60BSA100D030X
|
JSS60BSA120D030X
|
JSS60BSA140D030X
|
||
|
Number of poles
|
8
|
|
|
||
|
Number of phases
|
3
|
|
|
||
|
Rated voltage (VDC )
|
48
|
|
|
||
|
Rated speed ( RPM )
|
3000
|
3000
|
3000
|
||
|
Continuous stall torque ( N.m)
|
0.72
|
1.08
|
1.44
|
||
|
Rated torque ( N.m)
|
0.60
|
0.90
|
1.20
|
||
|
Rated power (W)
|
188
|
282
|
377
|
||
|
Peak torque (N.m)
|
1.80
|
2.70
|
3.60
|
||
|
Peak current (A)
|
15.69
|
23.54
|
31.38
|
||
|
Torque costant ( Nm/A)
|
0.115
|
0.115
|
0.115
|
||
|
Back EMF (V/KRPM )
|
8.190
|
8.190
|
8.190
|
||
|
Rotor inertia (g.cm2)
|
0.48
|
0.72
|
0.96
|
||
|
Motor length (mm)
|
99
|
120
|
140
|
||
|
Weight (Kg)
|
1.3
|
1.7
|
2.1
|
||
FAQ
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5. Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
