Quick Details
-
Product Name:
-
ISDBT HD Encoder Modulator
-
Input:
-
8/12/16/20/24 HD inputs
-
Video Encoding:
-
MPEG-4 AVC/H.264
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Audio Encoding:
-
MPEG-1 Layer 2
-
Bit rate:
-
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
-
Maximum simulcrypt CA:
-
4
-
Modulation:
-
DVB-C, DVB-T, ATSC, ISDB-T Modulation
-
LOGO Insert:
-
Yes
-
Management:
-
Web-based Management Easy
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ustarlink
-
Model Number:
-
WS-4024HM
-
Product Name:
-
ISDBT HD Encoder Modulator
-
Input:
-
8/12/16/20/24 HD inputs
-
Video Encoding:
-
MPEG-4 AVC/H.264
-
Bit-rate:
-
1Mbps~13Mbps each channel
-
Audio Encoding:
-
MPEG-1 Layer 2
-
Bit rate:
-
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps
-
Maximum simulcrypt CA:
-
4
-
Modulation:
-
DVB-C, DVB-T, ATSC, ISDB-T Modulation
-
LOGO Insert:
-
Yes
-
Management:
-
Web-based Management Easy

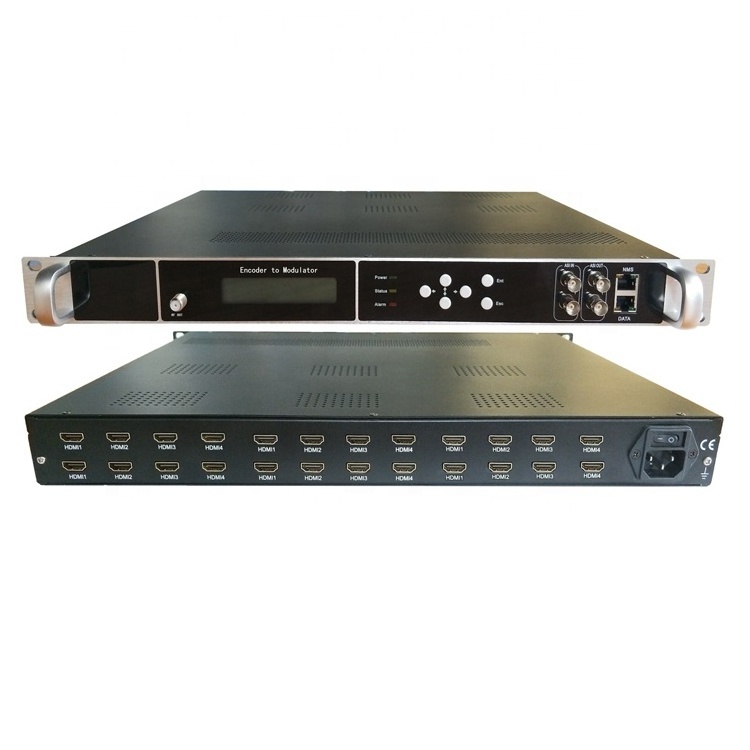

WS-4024HM All in one equipment 24 HD ISDB-T/ATSC/ DVB-C/ DVB-T Encoder Modulator
Product Overview
The encoder modulator is a professional high integration device which includes encoding, multiplexing, scrambling and modulation. It supports 8/12/16/20/24 HD input, one DVB-C (ATSC optional) tuner input and maximum 512 IP input with Data1 (GE) port. It also supports DVB-C RF out with 16 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6 non-adjacent carriers, and supports 16/8/6 MPTS as mirror of 16/8/6 carriers through Data2 (GE) output port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment
Key Features
* 8/12/16/20/24 HD input, MPEG-4 AVC/H.264 Video encoding
* 1DVB-C(ATSC optional) tuner input for re-mux
* Each carrier out channel process maximum 32 IP from DATA1 input port (UDP&RTP protocol)
* MPEG1 Layer II Audio encoding and support audio gain adjustment
* Support 16 groups multiplexing/Scrambling/DVB-C modulating
* Support 8 groups multiplexing/DVB-T/ATSC modulating---Optional
* Support 6 groups multiplexing/ISDB-T modulating---Optional
* Support 1 ASI out as mirror of one of RF output carriers--- Optional
* Support 16 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- DVB-C RF out
* Support 8 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
* Support 6 MPTS IP (DATA2 port only) output over UDP, RTP/RTSP-- ISDB-T RF out
* Support LOGO, Caption and QR code insertion (Language Supported: Chinese
English for more languages please consult us…)
* Support PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Control via web management, and easy updates via web
Inner Principle Chart
Specifications
|
Input |
8/12/16/20/24 HD inputs for option 1 DVB-C Tuner for re-mux, F type interface 512 IP input over UDP and RTP, DATA1, RJ45—DVB-C RF out 256 IP input over UDP and RTP, DATA1, RJ45—DVB-T RF out 192 IP input over UDP and RTP, DATA1, RJ45—ISDB RF out |
|||||
|
Video |
Resolution |
Input |
1920*1080_60P, 1920*1080_60i, 1920*1080_50P, 1920*1080_50i, 1280*720_60P, 1280*720_50P, 720*576_50i,720*480_60i, |
|||
|
Output |
1920*1080_30P, 1920*1080_25P, 1280*720_30P, 1280*720_25P, 720*576_25P,720*480_30P, |
|||||
|
Encoding |
MPEG-4 AVC/H.264 |
|||||
|
Bit-rate |
1Mbps-13Mbps each channel |
|||||
|
Rate Control |
CBR/VBR |
|||||
|
GOP Structure |
IP P (P Frame adjustment, without B Frame ) |
|||||
|
Audio |
Encoding |
MPEG-1 Layer 2 |
||||
|
Sampling rate |
48KHz |
|||||
|
Resolution |
24-bit |
|||||
|
Audio Gain |
0-255 Adjustable |
|||||
|
Bit-rate |
64kbps,128Kbps,192kbps,224kbps,256kbps,320kbps,384kbps |
|||||
|
Multiplexing |
Maximum PID Remapping |
180 input per channel |
||||
|
Function |
PID remapping ( automatically or manually) |
|||||
|
Accurate PCR adjusting |
||||||
|
Generate PSI/SI table automatically |
||||||
|
Scrambling |
Maximum simulcrypt CA |
4 |
||||
|
Standard |
ETR289, ETSI 101197, ETSI 103197 |
|||||
|
Connection |
Local/remote connection |
|||||
|
Modulation |
DVB-C |
QAM Channel |
16 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||
|
Standard |
EN300 429/ITU-T J.83A/B |
|||||
|
MER |
not less than 40db |
|||||
|
RF frequency |
50-960MHz, 1KHz step |
|||||
|
RF output level |
-20+10dbm (87-117 dbµV), 0.1db step |
|||||
|
Symbol Rate |
5.0Msps-7.0Msps, 1ksps stepping |
|||||
|
|
J.83A |
J.83B |
||||
|
Constellation |
16/32/64/128/256QAM |
64/256 QAM |
||||
|
Bandwidth |
8M |
6M |
||||
|
DVB-T |
Standard |
EN300744 |
||||
|
FFT mode |
2K,4K, 8K |
|||||
|
Bandwidth |
6M, 7M, 8M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
not less than 42 dB |
|||||
|
RF frequency |
50-960MHz, 1KHz step |
|||||
|
RF out |
8 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||||
|
RF output level |
-20 +10 dBm (87-117 dbuV), 0.1db step |
|||||
|
ISDB-T |
Standard |
ARIB STD-B31 |
||||
|
Bandwidth |
6M |
|||||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||||
|
Transmission Mode |
2K, 4K, 8K |
|||||
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||||
|
MER |
not less than 40dB |
|||||
|
RF frequency |
50-960MHz, 1KHz step |
|||||
|
RF out |
6 non-adjacent carriers output (maximum bandwidth 192MHz) |
|||||
|
RF output level |
-20dBm +10dBm, 0.1dB stepping |
|||||
System Connection Sample (IP Based)
