Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price

Large capacity lamella Clarifiers price

FOB Reference Price: Get Latest Price
≥1 Sets
US $4923
≥10 Sets
US $4700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight:
Depends on capacity
Size:
Depends on capacity
Power:
0.5~5.5
Weight (KG):
2000 kg
Product name:
Large capacity lamella Clarifiers price
MOQ:
1 Set
Production capacity:
5-50T/H
Voltage:
220V/380V /Customized
Function:
Producing Fresh Water
Filter Media:
Polypropylene
Control:
Electric Auto Control (PLC Siemens)
Color:
Customers Demands
Certification:
ISO9001

Quick Details

Place of Origin:
Shandong, China
Brand Name:
Guanrun
Material:
Wooden package with film, Carbon Steel
Weight:
Depends on capacity
Size:
Depends on capacity
Power:
0.5~5.5
Weight (KG):
2000 kg
Product name:
Large capacity lamella Clarifiers price
MOQ:
1 Set
Production capacity:
5-50T/H
Voltage:
220V/380V /Customized
Function:
Producing Fresh Water
Filter Media:
Polypropylene
Control:
Electric Auto Control (PLC Siemens)
Color:
Customers Demands
Certification:
ISO9001
Product Description

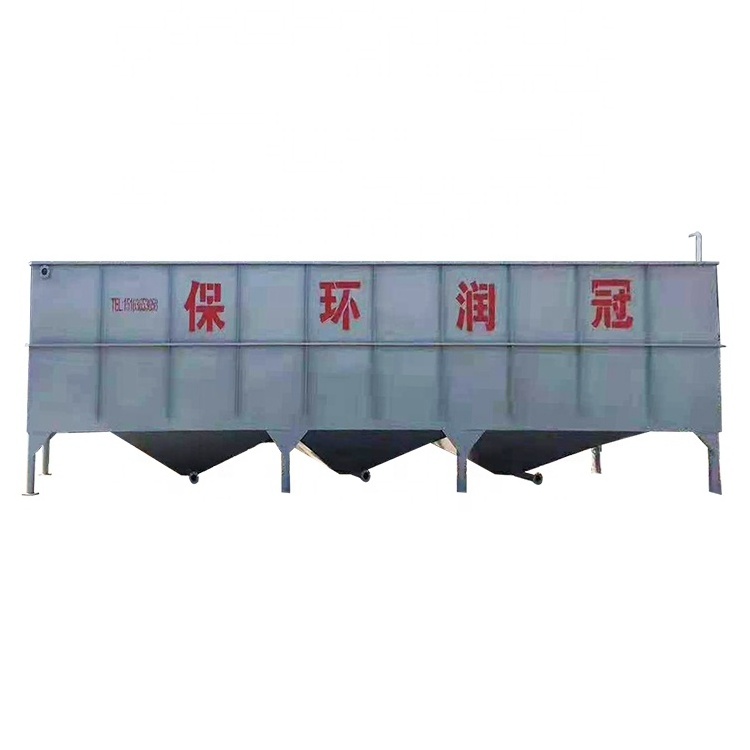

Large capacity lamella Clarifiers price
Large capacity lamella Clarifiers price can be used in the treatment wastewater, It can remove SS, oil/grease and parts of COD/BOD
*Pulp & paper
*Electroplating
*Metal processing
*Muddy water
*Coal slurry
*Crystal grinding wastewater
*River water
Usage:
(1) Make the suspended solids settle at the bottom of the clarifier tank.
(2) to speed up the suspended solids sedimentation
(3) separate and concentrate suspended particles and sludge.
Typical lamella clarifier design consists of a series of inclined plates framework component. The Lamella clarifier works when a solid/liquid stream that has been flocculated, enters a tank, and flows upward between a pack of inclined plates. The solids fall to the plate surface, where they slide by gravity down to a sludge collection hopper. The clarified effluent flows through orifice holes and exits the top of the settler. At the bottom of the vessel a hopper or funnel collects these particles as sludge. The sludge may be continuously or intermittently discharged. Above the inclined plates , all particles have been settled and the clarified water is produced, which is drawn off into an outlet channel. The clarified water was discharged .
Specification
Product name
Inclined Plates clarifier
Material
Stainless Steel
Application
Water Storage
Type
Water Filter Parts
Usage
Pure Water Process
Model
GRXG-5
GRXG-10
GRXG-15
GRXG-20
GRXG-25
GRXG-30
GRXG-40
GRXG-50
Processing power（T/H）
5
10
15
20
25
30
40
50
Size of the device
2.5*2*3.5
2.5*2.5*4
5*2.5*4
6*3*4.5
8*3*4.5
8*3.5*4.5
10*3.5*4.5
12*3.5*4.5
Workshop flow chart
Cut W elding Quality Inspection Ship
