Quick Details
-
Brand Name:
-
idc
-
Model Number:
-
72V 32AH
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
12kg, 12kg
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Battery type:
-
18650 Rechargeable Li-ion Battery
-
Product name:
-
18650 Lithium Battery Pack
-
Capacity:
-
10ah/18ah/24.5ah/30ah/32ah/50ah
-
Voltage:
-
24v/48V/51.2V/60v/72v
-
Warranty:
-
12 Months
-
Nominal Capacity:
-
10Ah/15ah/24.5ah/32ah/Customized
-
Type:
-
18650/21700/26650/32650/327000lifepo4/custom
-
Cycle life:
-
1000 Times
-
Keywords:
-
72V Battery
Quick Details
-
Storage Type:
-
normal storage
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
idc
-
Model Number:
-
72V 32AH
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
12kg, 12kg
-
The charging ratio:
-
1c
-
The discharge rate:
-
1c
-
Battery type:
-
18650 Rechargeable Li-ion Battery
-
Product name:
-
18650 Lithium Battery Pack
-
Capacity:
-
10ah/18ah/24.5ah/30ah/32ah/50ah
-
Voltage:
-
24v/48V/51.2V/60v/72v
-
Warranty:
-
12 Months
-
Nominal Capacity:
-
10Ah/15ah/24.5ah/32ah/Customized
-
Type:
-
18650/21700/26650/32650/327000lifepo4/custom
-
Cycle life:
-
1000 Times
-
Keywords:
-
72V Battery
72v 32ah battery for Dualtron Thunder 2 battery 72v 40ah Dualtron Thunder 2 battery for Dualtron Thunder 2 electric scooter
Product Description
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
32Ah |
Standard discharge( 0.2C 5 A) after standard charge |
|
Minimum |
32Ah |
|||
|
2 |
N ominal Voltage |
72V |
Mean Operation Voltage |
|
|
3 |
Voltage at end of Discharge |
55V |
Discharge Cut-off Voltage |
|
|
4 |
Charging at end of Voltage |
84V |
||
|
5 |
Internal Impedance |
28mΩ |
||
|
6 |
Standard charge |
Constant Current 0.2C 5 A Constant Voltage 84V 0.02C 5 A cut-off |
||
|
7 |
Standard discharge |
Constant Current 1C 5 A end Voltage 55V |
||
|
8 |
Fast charge |
Constant Current0.5C 5 A Constant Voltage 84V 0.02C 5 A cut-off |
||
|
9 |
Fast discharge |
Constant Current 3C 5 A end Voltage 55V |
||
|
10 |
Maximum Continuous Charge Current |
0.5C 5 A |
||
|
11 |
Maximum Continuous Discharge Current |
3C 5 A |
||
|
12 |
Operation Temperature Range |
Charge:5~45 ℃ |
60+/-25%R.H. Bare Cell |
|
|
Discharge:-10~60 ℃ |
||||
|
13 |
Storage Temperature Range |
Less than 1 year:-20~25 ℃ |
60+/-25%R.H. at the shipment state |
|
|
Less then 3 months:-20~40 ℃ |
||||
|
14 |
Weight |
Approx 12kg |
||
|
15 |
Dimension |
385*70*118mm |
||
General Feature
Long cycle life more than 1000times
Over-charge/over-discharge/over-current safety protection
Short circuit safety protection
High temperature safety protection
In-built safety protection BMS
All battery are complied with CE/UN38.3/EC/EN62133/MSDS standards

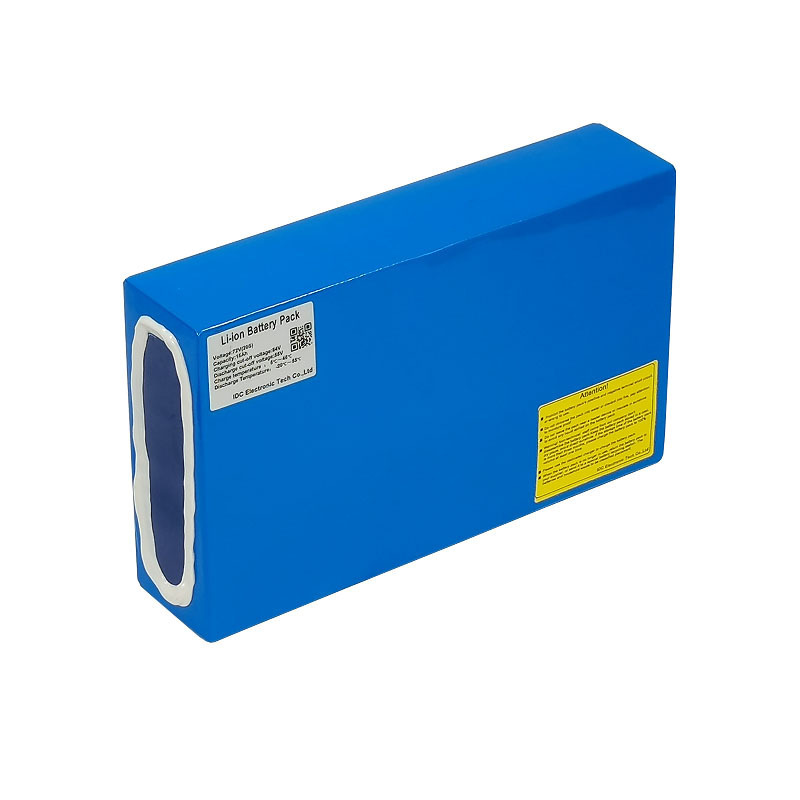

Product Images
Any different shape,voltage,capacity,dimension and logo etc.can be customized as customers' requirement
Any discharge plugs can be choose according to customer requirement
Application
The PVC lithium ion battery packs can be widely used in ebike,electric scooter,robot,medical device,electric motorcycle,electric wheelchair,energy storage etc.
Production Process
Package/Shipping
1.Packing:All goods are 100% tested pass before dispatch and packed by customized sponges with high hardness/thick cartons
2.For Samples:can ship within 5-10days
