Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Shape:
-
plate, band, ring and so on
-
Alloy material:
-
alloy, copper, iron and so on
-
Heating elements:
-
tubular heater
-
Wattage tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Max operating temp:
-
300℃
-
Dimension tolerance:
-
±1 mm
-
Terminal type:
-
plug, screw, leadn wire and so on
-
Application:
-
extruder, injection molding machine
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Shape:
-
plate, band, ring and so on
-
Alloy material:
-
alloy, copper, iron and so on
-
Heating elements:
-
tubular heater
-
Wattage tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Max operating temp:
-
300℃
-
Dimension tolerance:
-
±1 mm
-
Terminal type:
-
plug, screw, leadn wire and so on
-
Application:
-
extruder, injection molding machine
Cast In heaters for all plastics processing applications including, air and liquid cooled barrel heaters, L-shaped heaters, vent cut out heaters, heat only cast in barrel heaters, air cooled with shroud, hollow cast nozzle heaters, and cooling jackets for cast in barrel heaters.
LIQUID COOLED CAST-IN BARREL HEATERS.
Cast band heaters (Cast-in) are available in Aluminium (400ºC), Brass (600ºC) and Bronze (700ºC). Cast aluminium water-cooled units are the most common. The
casting contains both Incoloy sheathed heating elements and stainless steel cooling tubes. The heaters are available with bolt clamping or separate stainless steel strap clamping. Heating elements are supplied standard with threaded stud terminals for electrical connections. Sheet metal terminal boxes and other termination options are available.
FIN CAST-IN BARREL HEATERS.
Fin Cast Heaters contain Incoloy sheathed elements to provide the heating. The fin offer a large surface area for airflow to act as the cooling medium. These heaters are
intended to be used with sheet metal or cast shrouds. The heaters are available with bolt clamping or separate stainless steel strap clamping.

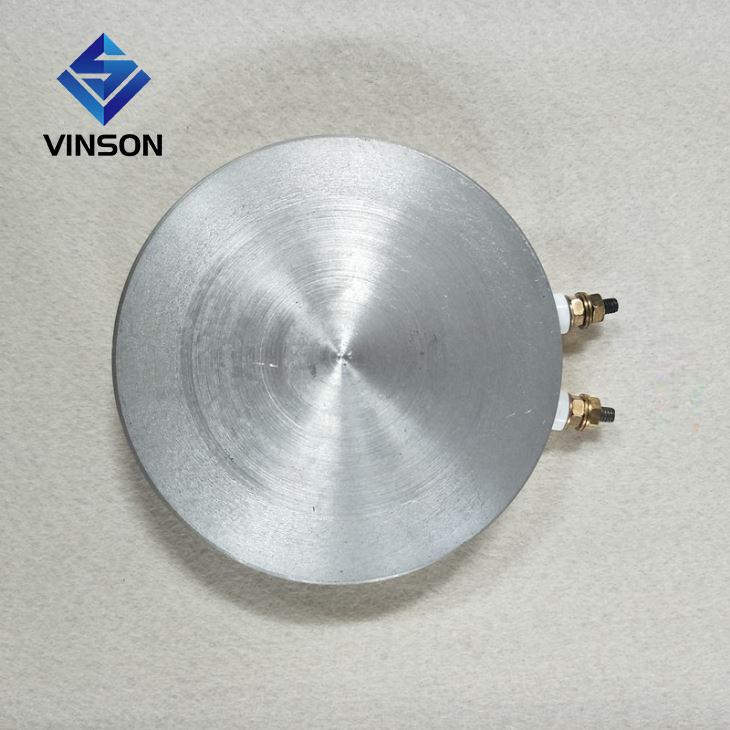

CAST ALUMINIUM HEATER PLATE.
Cast plates and platens are available in virtually any shape and in a huge variety of sizes. They are available in any material and can be offered with heating and cooling
options. Mounting holes, notches, and any number of machining options and surface finishes are available.
Applications.
• Heating plates for presses
• Extruder dies and sheaths
• Heating plates for homogeneous heating (rubber, aerated concrete curing)
• Sealing on packaging lines
• Mills
Advantages.
•Gravity moulding ensures an excellent material homogeneity and thus a perfect heat transfer.
• Constant surface temperature is achieved through appropriate forming
• As this is indirect heating, the heating, the heating resistance is protected. The solid or fluid to be heated is not in contact with the resistance.
• High protection against corrosion
• The end-to-end control of the design and production chain alloows us to deliver a product which suits your process perfectly
