Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
80 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
brand Name:
-
Perfect Laser
-
Product name:
-
Ezcad Industry 20W Fiber Laser Marking Equipment
-
Engraving Speed:
-
8000mm/s Stainless Steel Fiber Laser Marking Machine
-
Engraving Area:
-
110*110mm
-
Dimension:
-
0.79*0.27*0.60m
-
Laser wavelength:
-
1064±4nm
-
Delivery:
-
5-7 working days
-
Laser source:
-
USA IPG Technology
Quick Details
-
Working Accuracy:
-
99.99%
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
80 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
brand Name:
-
Perfect Laser
-
Product name:
-
Ezcad Industry 20W Fiber Laser Marking Equipment
-
Engraving Speed:
-
8000mm/s Stainless Steel Fiber Laser Marking Machine
-
Engraving Area:
-
110*110mm
-
Dimension:
-
0.79*0.27*0.60m
-
Laser wavelength:
-
1064±4nm
-
Delivery:
-
5-7 working days
-
Laser source:
-
USA IPG Technology

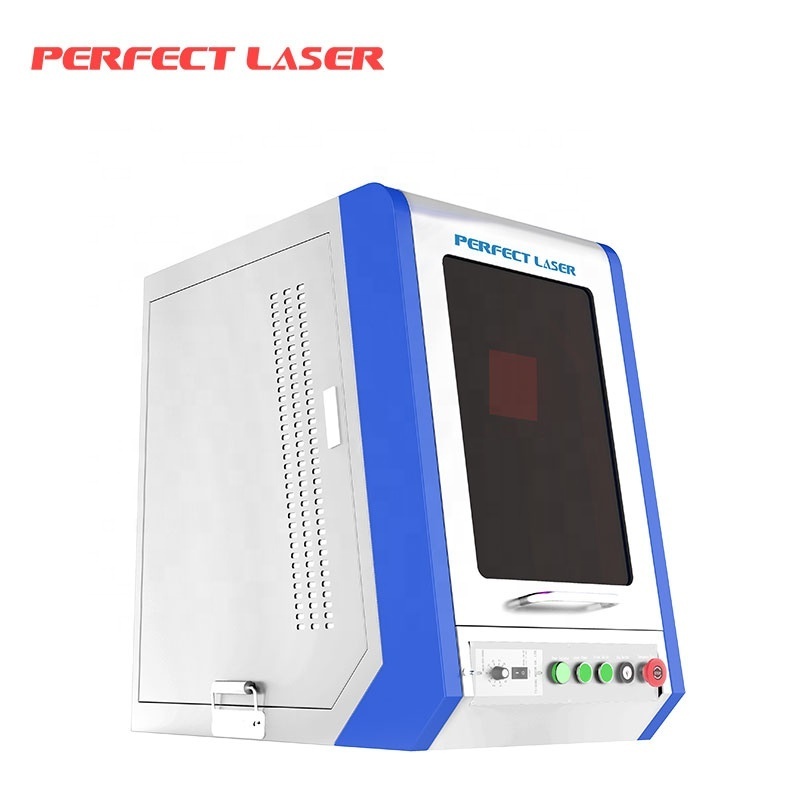

Small desktop closed metal nameplate/military dog plate industrial laser engraving machine
Feature of
Metal Nameplate/Military Dog Tag Industrial Laser Engraving Machine
1.High-tech,and it can make on both metal and non-metal.
2.Self-clean system
3.Lifetime over 100000hours.
4.Accuracy and speed is very well.
Deep laser engraving machine gold laser marking machine price
Desktop Factory China Manufacture Laser Logo Printing Machine
have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside. Environmental, friendly and healthy. It is special designed for European market, which has high demands for working environment.
Advantages of fiber laser marking machine
1. Low operation cost, free maintenance for over 10 years
2. Fast Speed: Imported laser scanning system makes the marking speed up to 7000mm/s.
3. High Precision: Re-position precision is 0.002mm
4. High-Rate of Electrical-Optical Conversion: The efficiency of optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: Easy operation, English User Manual, VCD training video, software sending together with the machine. 24 hours online service.
8. Air Cooling: Adopts air cooling, has excellent cooling effect than the other cooling method.
10w 20w fiber laser marking machines can be carved both on metal materials and some non-metallic materials.
This kind of enclosed fiber laser marking machine mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry, IC, plastic buttons and other graphic surface.
The effect of 10w 20w fiber laser marker on Bitmap marking is particularly outstanding.
It is also called:10w fiber laser marking machines,20w fiber laser marking machines,fiber laser marking machine price,10w fiber laser marker,20w fiber laser marker,10w fiber laser engraving machines.
|
Model No.
|
PEDB-200
|
|
|
|||
|
Type
|
Full Enclosed Style
|
|
|
|||
|
Laser Source
|
|
|
|
|||
|
IPG Series:
|
Pulsed, High Energy Ytterbium Fiber Lasers
|
|
|
|||
|
Mode of operation
|
Pulsed
|
|
|
|||
|
Polarization
|
random
|
|
|
|||
|
Nominal average output power
|
10W - 20W
|
|
|
|||
|
Central emission wavelength:
|
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
|
|
|||
|
Emission Bandwidth
(FWHM) |
<10 nm
|
|
|
|||
|
Pulse width, (FWHM)
|
100 ns
|
|
|
|||
|
Laser switching ON time
|
180 μsec
|
|
|
|||
|
Laser switching OFF time
|
180 μsec
|
|
|
|||
|
Pulse Repetition Rate* kHz
|
20-80 kHz
|
|
|
|||
|
Energy per pulse
(PRR = 20 kHz) |
0.95 mJ
|
|
|
|||
|
Output fiber delivery length
|
3m
|
|
|
|||
|
Operating voltage
|
220V
|
|
|
|||
|
Max. Power consumption
|
600W
|
|
|
|||
|
Laser system
|
|
|
|
|||
|
Scanning Speed
|
0-7000mm/s
|
|
|
|||
|
Marking Speed:
|
0-5000mm/s
|
|
|
|||
|
Marking size:
|
110mm*110mm (F-theta 160)
|
|
|
|||
|
Spot size:
|
≤40 micron (F-theta 160)
|
|
|
|||
|
Cooling unit:
|
Air cooled
|
|
|
|||
|
Pilot laser:
|
650nm diode laser, visible red light for marking guide
|
|
|
|||
|
Continuous working time:
|
≥16h
|
|
|
|||
|
Humidity:
|
45%-85% (no condensation)
|
|
|
|||
|
Operating temperature:
|
0~40℃
|
|
|
|||
|
Control units
|
Laser Mark (English Version)
|
|
|
|||
After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment
if your order is not shipped on time, or if the pre-shipment product quality (optional) does
not match the terms agreed on your contract. Your payment is protected up to 100% of an
amount - agreed between you and the supplier - called the Trade Assurance Order Amount.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
