Quick Details
-
Product Name:
-
Steel Tube Mill
-
Welding Mode:
-
TIG
-
Voltage:
-
220/380/415/420/440V
-
Current Frequency:
-
50 Hz / 60 Hz
-
Pipe Diameter:
-
12.7-50.8mm
-
Thickness:
-
0.5-2.5mm
-
Pipe Shape:
-
Round,Square Etc
-
Export Port:
-
Foshan/Guangzhou/Shenzhen/Customer designated port
-
Price Model:
-
CIF/FOB/EXW...
-
After-Sell Service:
-
Installation, Guidance, Training,Maintenance
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GXG
-
Weight (KG):
-
12000
-
Product Name:
-
Steel Tube Mill
-
Welding Mode:
-
TIG
-
Voltage:
-
220/380/415/420/440V
-
Current Frequency:
-
50 Hz / 60 Hz
-
Pipe Diameter:
-
12.7-50.8mm
-
Thickness:
-
0.5-2.5mm
-
Pipe Shape:
-
Round,Square Etc
-
Export Port:
-
Foshan/Guangzhou/Shenzhen/Customer designated port
-
Price Model:
-
CIF/FOB/EXW...
-
After-Sell Service:
-
Installation, Guidance, Training,Maintenance

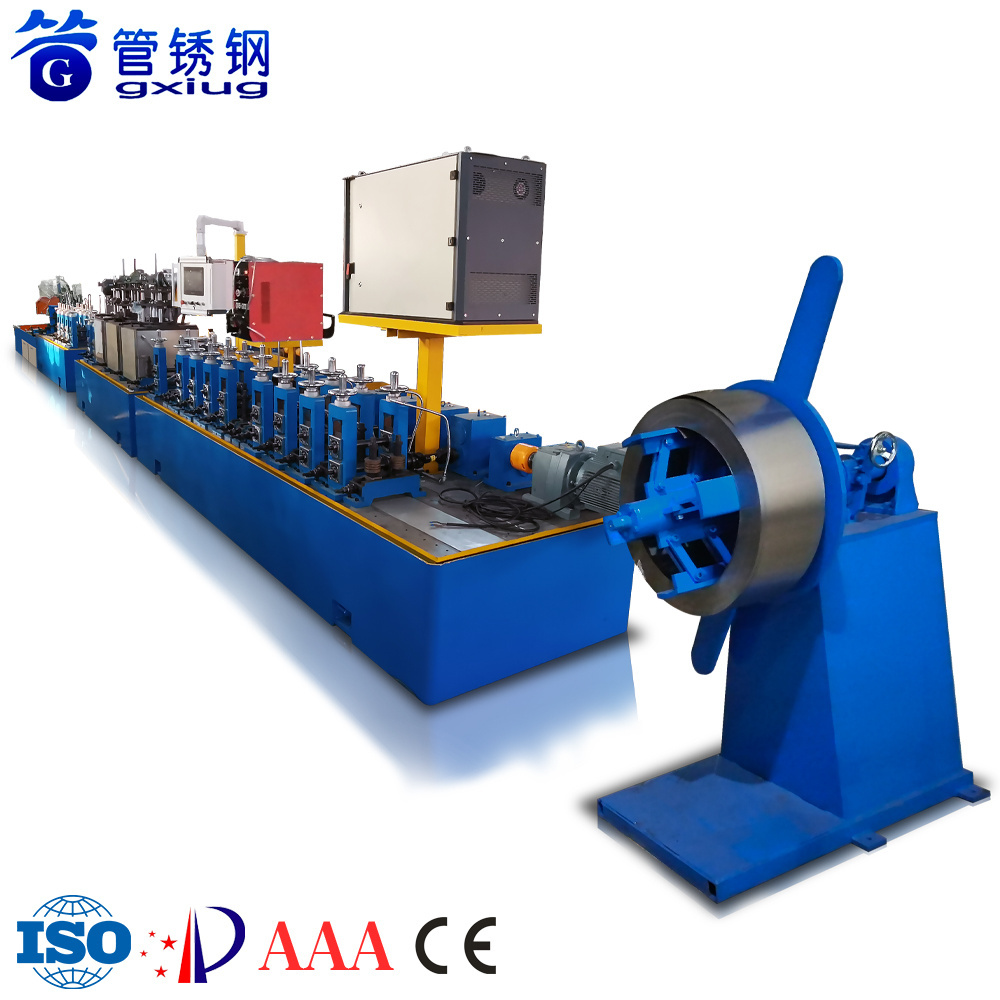

GXG Technology Stainless Steel Pipe Welding Machine Manufacturer Tube Production Line Factory
TUBE MATERRIAL:Stainless steel / iron / carbon steel / titanium steel, etc.
PIPE SHAPE: Round Square Etc
USDAGE: Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc
Stainless Steel Pipe Welding Machine Manufacturer Tube Production Line Factory is a professional equipment with relatively thick production and processing wall thickness and high requirements for unit design. It can be used to produce industrial and high standard decorative pipes with high requirements such as structural support pipe, frame and pressure pipe. In addition, by welding the pipe making machine with the die design, different shapes of pipes can be extruded directly and easily, such as round, square, rectangular and other shapes, which are suitable for the manufacture of stainless steel, iron, carbon steel and other metal materials, and for the production and processing of pipes in Europe and America.
GXG Technology Stainless Steel Pipe Welding Machine Manufacturer Tube Production Line Factory
| MODEL | Round Tube Range (mm) | Square Tube Range (mm) | Wall Thickness Range (mm) | Horizontal Shaft Diameter(mm) | Vertical Shaft Diameter(mm) | Main Motor Power(kw) | Installation Dimension (L*W m) | Rated Voltage(v) |
| GXG-20 |
Ø5-20 |
15*15 |
0.15-1.0 |
Ø40 |
Ø20 |
5.5*2 |
20*1 | 220 / 380 415 / 440 |
| GXG-30 |
Ø15-32 |
25*25 | 0.3-1.5 | Ø40 | Ø20 | 5.5+7.5 | 21*1 | |
| GXG-40 |
Ø25-51 |
10*10-40*40 | Ø: 0.3-2.0 / 1.5 | Ø40 | Ø25 | 7.5*2 | 22*1.3 | |
| GXG-50 |
Ø38-76 |
20*20-60*60 | Ø: 0.5-2.5 / 1.8 | Ø50 | Ø30 | 11*2 | 24*1.4 | |
| GXG-60 |
Ø63-114 |
40*40-90*90 | Ø: 0.5-3.0 / 2.2 | Ø60 | Ø35 | 15*2 | 26*1.5 | |
| GXG-70 |
Ø89-168 |
70*70-130*130 | Ø: 0.8-4.0 / 3.0 | Ø70 | Ø40 | 18.5KW*2 | 32*2.2 | |
| GXG-80 | Ø114-219 | 90*90-170*170 | Ø: 1.0-6.0 / 4.0 | Ø80 / 90 | Ø50 / 60 | 22KW*2 / 30KW*2 | 36*2.6 / 40*2.8 | |
| GXG-90 | Ø168-273 | 130*130-210*210 | Ø: 2.0-7.0 / 5.0 | Ø90 / 100 | Ø60 / 70 | 37KW*2 /45KW*2 | 38*2.8 / 50*4 | |
| GXG-100 | Ø219-325 | 170*170-250*250 | Ø: 2.0-8.0 / 6.0 | Ø100 / 100 | Ø70 / 80 | 45KW*2 / 55KW*2 | 40*3 / 55*4.5 | |
| GXG-120 | Ø168-325 | 130*130-250*250 | 3.0-12.0 / 8.0 | Ø120 | Ø90 | 55+75 | 60*5 |
