Quick Details
-
Material:
-
Copper-Aluminum
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHAER
-
Model Number:
-
DTL-2-240
-
Material:
-
Copper-Aluminum
Product

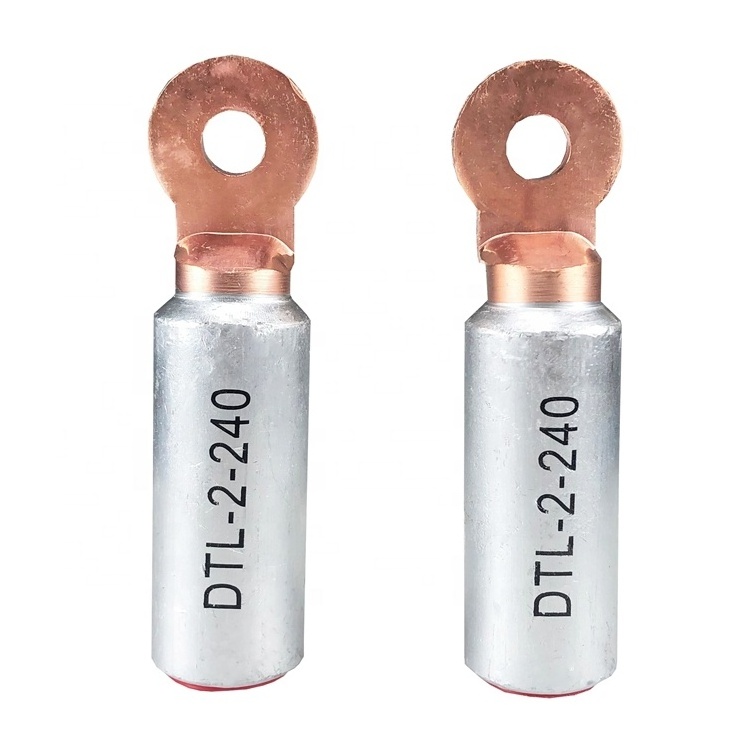

Crimping Cable Lug
Product Description
| Material: | Copper+aluminum | Condductor/cable applicable: | 240 mm2 |
| Apperance: | Yellow+white | ||
| Stud hole diameter: | 13 mm | Inner diameter of tube: | 19.5mm |
| Packing unit: | Poly bag + box + carton | ||
| Equipment: | Punching machine, welding | ||
| Application: | Cable/wire end crimping | ||
DTL-2 Series Cable Lug
Dimension
| Model | φ | d | L | L1 | B | D |
| DTL-2-16 | 11 | 5.5 | 80 | 38 | 3.5 | 16 |
| DTL-2-25 | 11 | 6.5 | 80 | 38 | 3.5 | 16 |
| DTL-2-35 | 11 | 8.2 | 80 | 38 | 3.5 | 16 |
| DTL-2-50 | 13 | 9.7 | 90 | 43 | 4.5 | 20 |
| DTL-2-70 | 13 | 11 | 90 | 43 | 4.5 | 20 |
| DTL-2-95 | 13 | 12.5 | 90 | 43 | 4.5 | 20 |
| DTL-2-120 | 13 | 14.5 | 114 | 58 | 5.5 | 25 |
| DTL-2-150 | 13 | 16.5 | 114 | 58 | 5.5 | 25 |
| DTL-2-185 | 13 | 17.5 | 124 | 60 | 6 | 32 |
| DTL-2-240 | 13 | 19.5 | 124 | 60 | 6 | 32 |
| DTL-2-300 | 13 | 23 | 130 | 60 | 6.5 | 34 |
| DTL-2-400 | 13 | 26 | 155 | 90 | 7 | 34 |
| DTL-2-500 | 13 | 29 | 155 | 90 | 7 | 40 |
