Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
C04HU-1
-
Warranty:
-
12 Months
-
Product Type::
-
code readers / ELM 327/ OBD 2
-
Hardware Version::
-
V1.5
-
Communication Mode::
-
USB
-
Chip::
-
ST
-
Software platform::
-
Windows
-
Color::
-
Black
-
Size::
-
45mm x25mmx 75mm (cable length 150cm)
-
Packing::
-
Colorful box
-
Connector::
-
OBDII 16-pin standard plug
-
Working Tempreture:
-
-40℃-85℃
-
Certification:
-
FCC, CE, Rohs
Quick Details
-
Voltage:
-
9v-16V
-
Power:
-
No
-
Applicable Models:
-
support all OBDII protocols
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
C04HU-1
-
Warranty:
-
12 Months
-
Product Type::
-
code readers / ELM 327/ OBD 2
-
Hardware Version::
-
V1.5
-
Communication Mode::
-
USB
-
Chip::
-
ST
-
Software platform::
-
Windows
-
Color::
-
Black
-
Size::
-
45mm x25mmx 75mm (cable length 150cm)
-
Packing::
-
Colorful box
-
Connector::
-
OBDII 16-pin standard plug
-
Working Tempreture:
-
-40℃-85℃
-
Certification:
-
FCC, CE, Rohs
1. Specification
| Model No.: | C04HU | Working Voltage: | 9v-16V |
| Product Type: | code readers / ELM 327/ OBD 2 | Working Current: | 15mA |
| Hardware Version: | V1.5 | Standby Current: | 0mA |
| Communication Mode: | USB | Packing: | Colorful box |
| Chip: | ST | Material: | Plastic |
| Software platform: |
Windows
|
Connector: | OBDII 16-pin standard plug |
| Color: | Black | Working Tempreture: | -40℃-85℃ |
| Size: |
45mm x25mmx 75mm
(cable length 150cm) |
Operating humidity: | <60% |

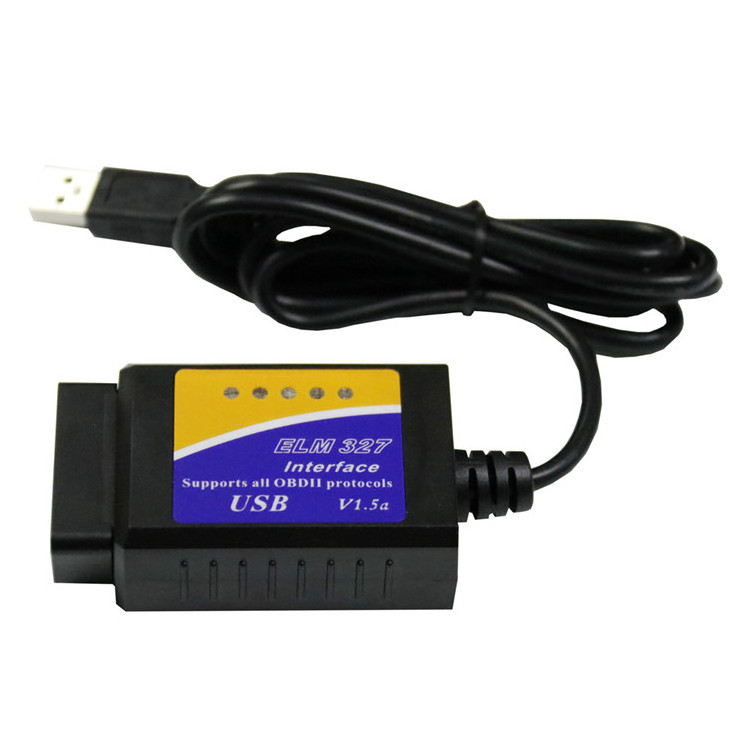

2. Product Photo
1) Size
2) Interface: 16pin Interface port
3.USB ELM327 Description
Customer can dowload software for Smartphone(Android, Symbian), PC(Windows XP, Windows 7 and Windows 8) from our
website: www.elm327.com
OBD-II Software for ELM327 usb is a free program that allows you to use your PC and a hardware interface to get the information
from your car's computer.
The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's
hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
1) Multi-Protocol Support:
1.
SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
2)Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...
3) Compatible software:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, DashCommand, EOBD;
IOS version: OBD Car Doctor, DashCommand, EOBD;
Symbian version: OBDScope.
4) Support System:
Windows XP, Windows 7/8, Android, IOS, Symbian.
5) Item Includes:
1 * OBDII ELM 327
6) All OBD2 options
4. Certificates
