- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7440mmx2350mmx3450
-
Machine Weight:
-
76000 kg
-
Bucket capacity:
-
1m3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
Cummins
-
Power:
-
82kw
-
Brand Name:
-
XCMG
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7440mmx2350mmx3450
-
Machine Weight:
-
76000 kg
-
Bucket capacity:
-
1m3
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service1:
-
Video technical support
-
After Warranty Service2:
-
Online support
-
Certification:
-
CE ISO
Products Description

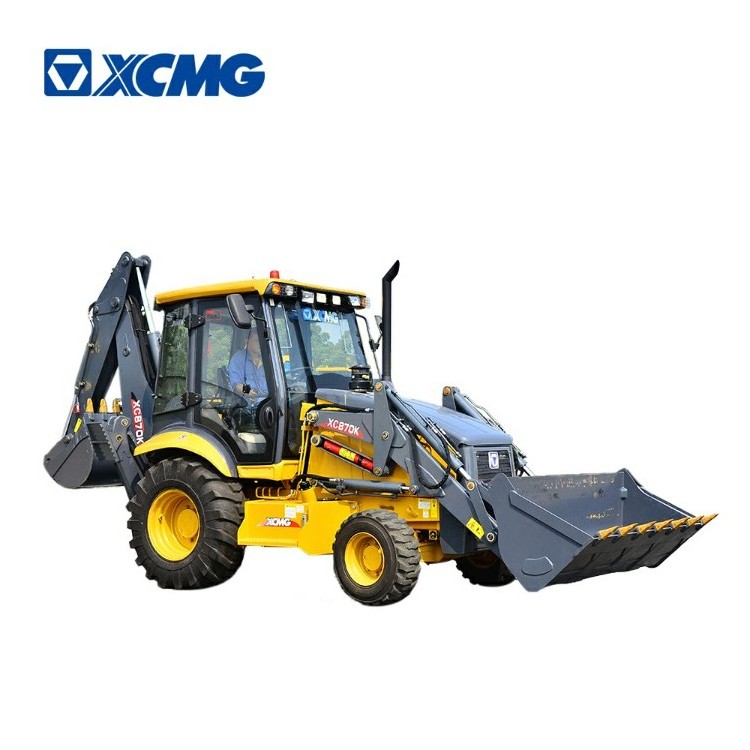

XCMG Official Manufacturer XC870K chinese hyundai backhoe china loader
.
1, The XC870K overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2, The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
3, The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
4, The XCMG's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
Specification
|
Description
|
|
Unit
|
Parameter value
|
|
Chassis type
|
|
|
integrated
|
|
Drive style
|
|
|
4 drive/2 drive
|
|
Digging working device
|
|
|
middle
|
|
Outline dimensions
|
|
mm
|
7440×2350×3450
|
|
Total weight
|
|
kg
|
7600
|
|
Max. travel speed
|
|
km/h
|
≥40
|
|
Wheelbase
|
|
mm
|
2180
|
|
Engine
|
Power
|
kW
|
82
|
|
|
Supplier
|
|
tier 3 tier 2 tier 3 tier 2
|
|
Loading device
|
Bucket capacity
|
m³
|
1
|
|
|
Rated load
|
kg
|
2500
|
|
|
Max. breakout
|
kN
|
66
|
|
|
Max. discharge height
|
mm
|
2770
|
|
|
Max. discharge distance
|
mm
|
755
|
|
|
System pressure
|
Mpa
|
24
|
|
Digging device
|
Bucket capacity
|
m³
|
0.3
|
|
|
Max. digging radius
|
mm
|
5460
|
|
|
Max. digging depth
|
mm
|
4425
|
|
|
Max. digging force
|
kN
|
63
|
|
|
System pressure
|
Mpa
|
24
|
