Quick Details
-
Interface Standard:
-
CCS
-
Output Current:
-
DC
-
Input Voltage:
-
1000v
-
Product name:
-
EV Charging Station
-
Power factor:
-
≥0.98
-
Efficiency:
-
>95%
-
Measuring accuracy:
-
Level 0.5
-
Output voltage range:
-
CCS: 250~1000VDC
-
Communication:
-
4G/Wifi/OCPP 1.6J(optional)
-
User interface:
-
LCD 7 inch Touch Screen / RFID card and APP
-
Versatility:
-
EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014
-
Security design:
-
overload protection
-
Energy Meter:
-
CE certified
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SPBEV90K-D4
-
Brand Name:
-
SPB
-
Interface Standard:
-
CCS
-
Output Current:
-
DC
-
Input Voltage:
-
1000v
-
Product name:
-
EV Charging Station
-
Power factor:
-
≥0.98
-
Efficiency:
-
>95%
-
Measuring accuracy:
-
Level 0.5
-
Output voltage range:
-
CCS: 250~1000VDC
-
Communication:
-
4G/Wifi/OCPP 1.6J(optional)
-
User interface:
-
LCD 7 inch Touch Screen / RFID card and APP
-
Versatility:
-
EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014
-
Security design:
-
overload protection
-
Energy Meter:
-
CE certified

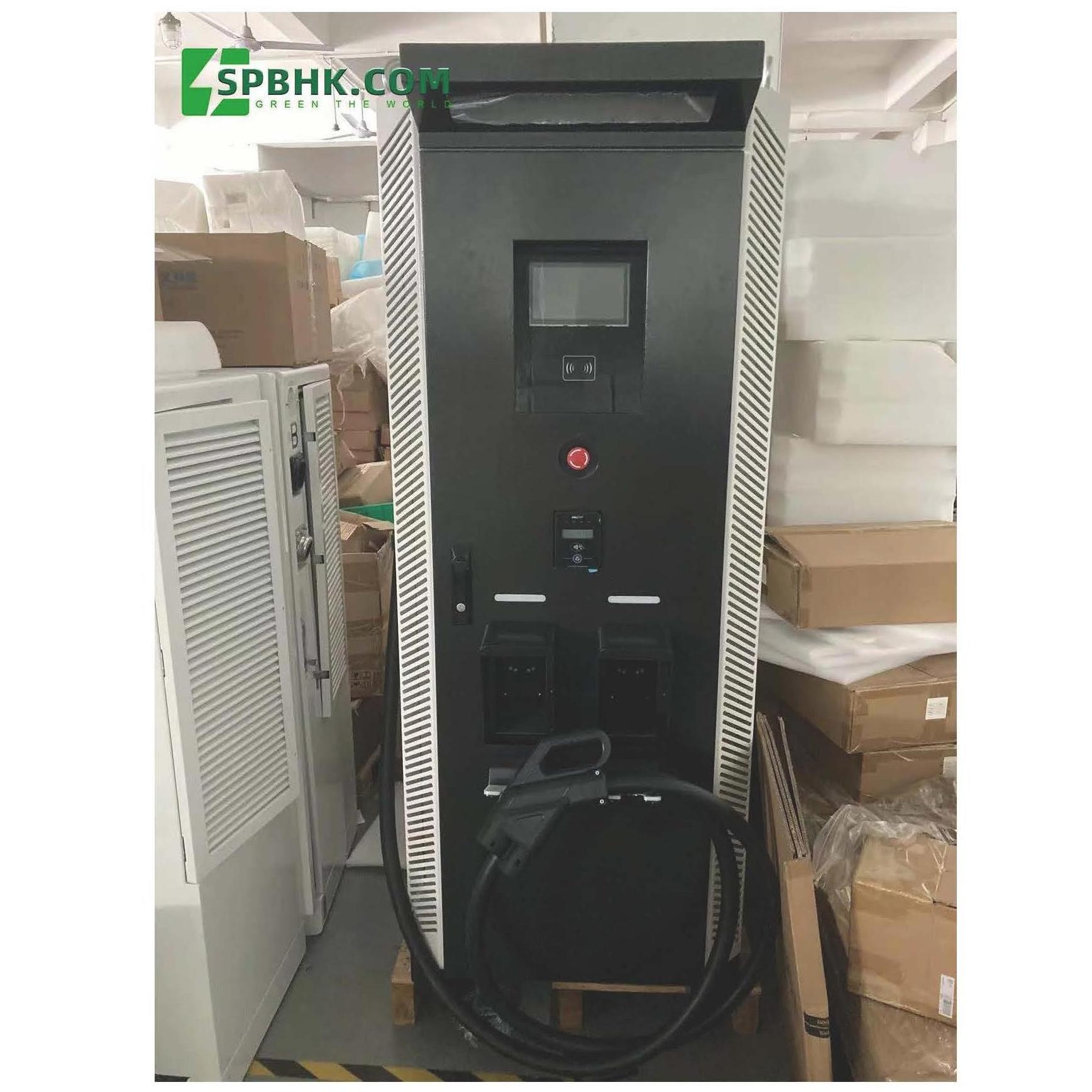

EV Charging Station for Cars 120Kw CCS 2 Electric Car EV Charger Smart Mobile Fast Charging Pile with OCPP
Main features:
* High Efficiency: One charger with two outputs, simultaneously charging
Two CCS2 DC connectors, with output up to 180kW
Constant power from 250~1000V voltage, less heat with smaller current* Flexible Option: App operation or RFID authentication or plug and play
High protection grade as IP54, with IP65 optional
Optional POS terminal for contactless credit card payment
* Intelligent Control: Ethernet/4G/Wi-Fi communication all supported
OCPP 1.6 communication protocol with CMS
Intelligent operation by App and cashless payment
* Secureand Safe: Type A RCD for residual current protection
PTB certified energy meter with accurate measurement
ISO15118 prepared for advanced feature of Plug&Charge
* High Efficiency: One charger with two outputs, simultaneously charging
Two CCS2 DC connectors, with output up to 180kW
Constant power from 250~1000V voltage, less heat with smaller current* Flexible Option: App operation or RFID authentication or plug and play
High protection grade as IP54, with IP65 optional
Optional POS terminal for contactless credit card payment
* Intelligent Control: Ethernet/4G/Wi-Fi communication all supported
OCPP 1.6 communication protocol with CMS
Intelligent operation by App and cashless payment
* Secureand Safe: Type A RCD for residual current protection
PTB certified energy meter with accurate measurement
ISO15118 prepared for advanced feature of Plug&Charge
|
Technical Features
|
|
|
|
|||
|
Max Power
|
Up to 120KW
|
Up to 150KW
|
Up to 180KW
|
|||
|
Input/Output power
|
400VAC±10%-50/60Hz-
3phase |
400VAC±10%-50/60Hz-
3phase |
400VAC±10%-50/60Hz-3phase
|
|||
|
Power factor
|
≥0.98
|
|
|
|||
|
Efficiency
|
>95%
|
|
|
|||
|
Measuring accuracy
|
Level 0.5
|
|
|
|||
|
Output voltage range
|
CCS: 250~1000VDC
|
|
|
|||
|
Output current range
|
0-165A
|
0-200A
|
0-250A
|
|||
|
Communication
|
PLC (between charger & vehicle) /4G/Wififi/OCPP 1.6J(optional)
|
|
|
|||
|
User interface
|
LCD 7 inch Touch Screen / RFID card and APP
|
|
|
|||
|
Versatility
|
EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014
|
|
|
|||
|
Security design
|
Over/under voltage protection, overload protection, current leakage protection, grounding protection,lightening surge protection
|
|
|
|||
|
DC Plugs
|
CCS2 Cable 5M or 7M(Optional)
|
|
|
|||
|
Energy Meter
|
CE certified
|
|
|
|||
|
RCD
|
Type A or Type B(optional)
|
|
|
|||
|
Physical Properties
|
|
|
|
|||
|
Warranty
|
2 years
|
|
|
|||
|
Cooling
|
Air cooled
|
|
|
|||
|
IP Level
|
IP54
|
|
|
|||
|
Sound noise
|
<70DB in all directions
|
|
|
|||
|
Operating temperature
|
-20°C to +50°C
|
|
|
|||
|
Humidity
|
Max.95%(non-regulating)
|
|
|
|||
|
Product Dimensions
|
700*925*1770mm
|
|
|
|||
|
Package Dimension
|
800*1100*1900(L*W*H)mm Wooden packing
|
|
|
|||
