Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V
-
Product name:
-
Biscuit Waffle Snow Ice Cream Rolled Sugar Cone Machine
-
Name:
-
Rolled Sugar Cone Machine
-
Usage:
-
Ice Cream Cone Machine Price
-
Function:
-
Multifunctional
-
Type:
-
Fully Automatic
-
Raw material:
-
Wheat Flour
-
Item:
-
Ice Cream Waffle Cone Maker
-
Mixer:
-
190L
-
Power:
-
14-24KW
-
Certification:
-
CE ISO
Quick Details
-
Brand Name:
-
GELGOOG
-
Dimension(L*W*H):
-
9.80*1.90*1.73M
-
Weight:
-
5300KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V
-
Product name:
-
Biscuit Waffle Snow Ice Cream Rolled Sugar Cone Machine
-
Name:
-
Rolled Sugar Cone Machine
-
Usage:
-
Ice Cream Cone Machine Price
-
Function:
-
Multifunctional
-
Type:
-
Fully Automatic
-
Raw material:
-
Wheat Flour
-
Item:
-
Ice Cream Waffle Cone Maker
-
Mixer:
-
190L
-
Power:
-
14-24KW
-
Certification:
-
CE ISO
Hot Sale Industrial Full Automatic Cone Baking Production Line Biscuit Waffle Snow Ice Cream Rolled Sugar Cone Machine Price
Tina: Email: tina @gelgoog.com.cn Skype:gelgoogtina

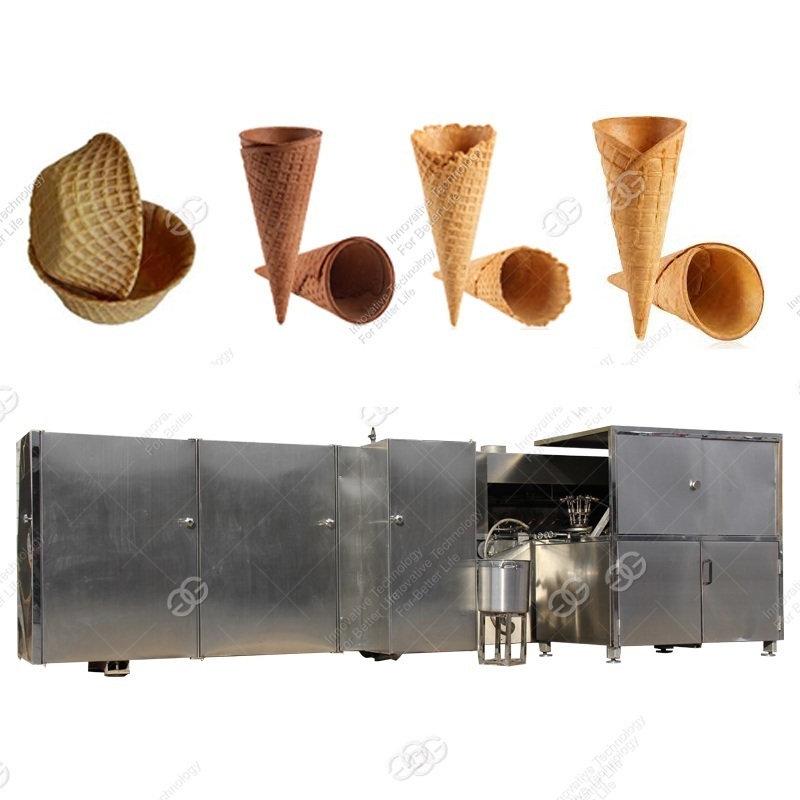

| Introduction of Automatic Rolled Sugar Cone Machine |
We produce many kinds of Automatic Ice Cream Cone Making Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.
We also have the wafer ice cream cone machines,such as for different popular shapes in china and all over the worlds.
Welcome to contact us with your cone pictures,design,size and capacity then we can talk more and suggest you the suitable ice cream cone machines.
| More Pictures of Automatic Rolled Sugar Cone Machine |
| Features of Automatic Ice Cream Cone Machine Price |
♦ The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.
♦ The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.
♦ The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.
| Features of Automatic Rolled Sugar Cone Machine |
|
Model |
GG37×2-16A |
GG45×2-16A |
GG53×2-16A |
|
Drive motor |
380V 1.5KW |
380V 1.5KW |
380V 2.2KW |
|
Rolling system motor |
380V 0.37KW |
380V 0.37KW |
380V 0.37KW |
|
Air blower |
380V 1.1KW |
380V 1.1KW |
380V 1.6KW |
|
Gas consumption(kg/h) |
5-7 |
6-7 |
8-12 |
|
Producing capacity(pcs/h) |
3500-4000 |
4500-5000 |
5500-6000 |
|
Food-grade conveyor |
5000*460*500 |
5000*460*500 |
5000*460*500 |
|
Automatic counter |
3000*460*400 |
3000*460*400 |
3000*460*400 |
|
Mixer |
190L |
190L |
190L |
|
Machine measurement (m) |
7.05×1.90×1.73 |
8.52×1.90×1.73 |
9.80×1.90×1.73 |
|
Total weight |
4200kgs |
4800kgs |
5300kgs |
| More Pictures of Automatic Rolled Sugar Cone Machine |
| FAQ of Automatic Rolled Sugar Cone Machine |
♦ What kind of ice cream cone your machine can make?
Our machine can make rolled ice cream cone,bowl shape cone,egg roll,and wafer biscuit cone.
♦ What’s the voltage of your machines?
380V,other voltage can be customized.
♦ 3.How can i get quotation?
Send your requirements(cone shape,size,angle,and picture)and leave your email,we will send you quotation soon.
♦ Do you have automatic ice cream cone production line?
Yes,we have several models can be choose.
♦ Which kind of payment method you can accept?
T/T.Western Union,L/C.
After Sale Service
♥
Warranty policy one year from shipment
♥
We will send you the replacement after received the broken part
♥
Evaluate the customs rish and choose safest shipping company before shipping.
♥
Follow status up time by time until the goods arrived.
We can arrange shipment either by ship, by air or by truck/train, or through international combined shipment, we have most realiable shipping company, able to arrange the soonest and safety shipment for you.
1.About shipping:
You can choose express, by air, by train or by sea. Always we will give our best recommend based on our experience.
We cooperate with China best shipping company to get best price and fast delivery.
You will get full feedback when your machine is on the way.
2.Packaging specification:
We always use standard export wooden packing, carton box.
