Quick Details
-
Power:
-
12W
-
Air source:
-
max 0.99 Mpa
-
Pressure setting:
-
0.05 - 0.99 Mpa
-
Accessories:
-
needle, barrel and adaptor
-
HS Code:
-
8424899990
-
control mode:
-
manual/16 freely set modes
-
time setting:
-
0.01-99.99s, 0.001-9.999s
-
min.dispensing volume:
-
0.0001ml
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Waterun
-
Name:
-
B-A6 glue dispensing machine
-
Power:
-
12W
-
Air source:
-
max 0.99 Mpa
-
Pressure setting:
-
0.05 - 0.99 Mpa
-
Accessories:
-
needle, barrel and adaptor
-
HS Code:
-
8424899990
-
control mode:
-
manual/16 freely set modes
-
time setting:
-
0.01-99.99s, 0.001-9.999s
-
min.dispensing volume:
-
0.0001ml

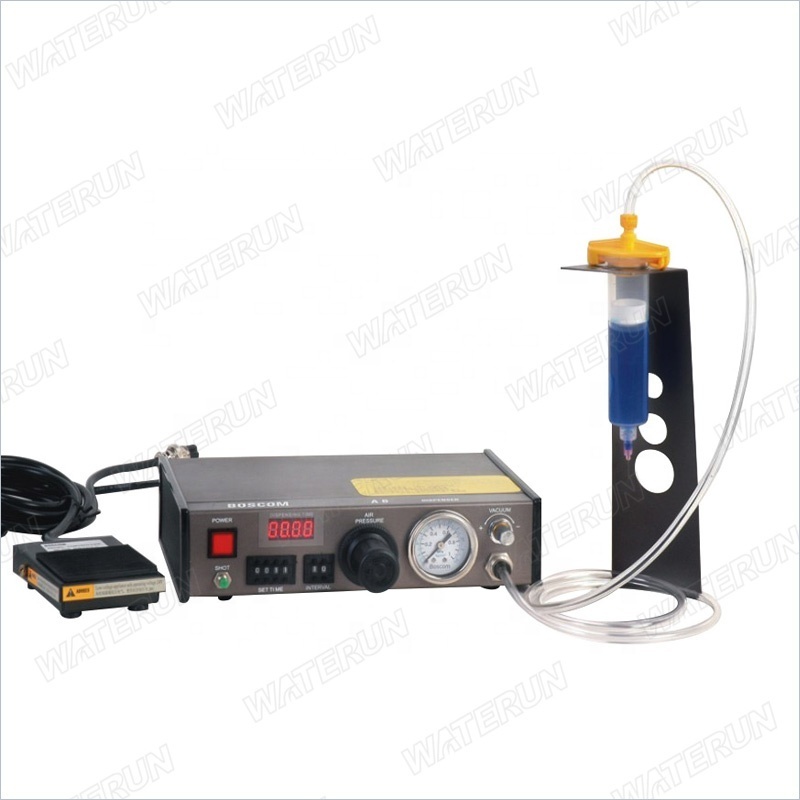

B-A6 High-precision Multi-functional Dispensing Controller
→ Power consumption: 12W
→ Air source: Max 0.99 Mpa Pressure setting: 0.05-0.99 Mpa
→ Control mode: Manual / 16 freely set modes
→ Time setting: 0.01-99.99s, 0.001-9.999s
→ Dispensing time display: 4-digit LED display
→ Dispensing interval adjustment: 0.1-9.9s
→ Repetitive accuracy: ± 0.01% Dispensing frequency: > 1000/min
→ Min. dispensing volume: 0.0001 ml
→ Dimension: 235mm x 225mm x 63mm Weight: 3 Kg
High precision glue/liquid dispensing machine can dispensing solder tin, tin paste, UV adhesive, lubricant, epoxy resin, fast cure adhesive, silicone resin, etc material, it is an ideal dispensing machine for adhering, fixing, dot coating, line coating, etc.
Best Quality
100% inspection before shipments.
Zero mistake is our goal.
Cost Down
we always offer competitive prices and help our customers to cost down.
Fast Delivery
We keep a lot of stock for regular products.
NEPCON Thailand 2016
The exhibition team presented our hot sell and new products Fume Extractor and Automatic Screw Fastening Robots, Soldering Robot and Glue Dispensing Robot, and also provided solutions to achieve the complete automation.
NEPCON Vietnam 2015
We showed the Soldering Fume Extraction System Models and Visitors are invited to observe the significant effect of fume purify in the simulated work environment.
KES 2014
We have attended the KES which offers a comprehensive and energy saving lighting equipment, showing our fume extraction systems for different kinds of application.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days for the glue dispensing machines
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.
