Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
This heater is also multi usage for air heating or immersion liquid heating with screws.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUHENG
-
Dimension(L*W*H):
-
Cutomer's Request
-
Weight:
-
Final Dimension
-
Working Temperature Range:
-
1 - 800 ℃
-
Sheath material:
-
stainless steel 304, 316, 321 and Incoloy 800
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Max operating temp:
-
800 degree celsius
-
Thermocouple option:
-
J type and K type
-
Diameter:
-
3-25mm
-
Length:
-
15-2000mm
-
Resistance Wire:
-
Nichrome 8020
-
Leading wire:
-
fiberglass, swaged fiberglass, PTFE, silicone rubber, etc
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, Mexico, Japan, Malaysia
-
Showroom Location:
-
Canada, United States, Mexico, Morocco
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ROHS
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YUHENG
-
Dimension(L*W*H):
-
Cutomer's Request
-
Weight:
-
Final Dimension
-
Working Temperature Range:
-
1 - 800 ℃
-
Sheath material:
-
stainless steel 304, 316, 321 and Incoloy 800
-
Wattage Tolerance:
-
+5%, -10%
-
Resistance tolerance:
-
+10%, -5%
-
Max operating temp:
-
800 degree celsius
-
Thermocouple option:
-
J type and K type
-
Diameter:
-
3-25mm
-
Length:
-
15-2000mm
-
Resistance Wire:
-
Nichrome 8020
-
Leading wire:
-
fiberglass, swaged fiberglass, PTFE, silicone rubber, etc
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United States, Mexico, Japan, Malaysia
-
Showroom Location:
-
Canada, United States, Mexico, Morocco
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Marketing Type:
-
New Product 2020
-
Certification:
-
CE ROHS
Product Description

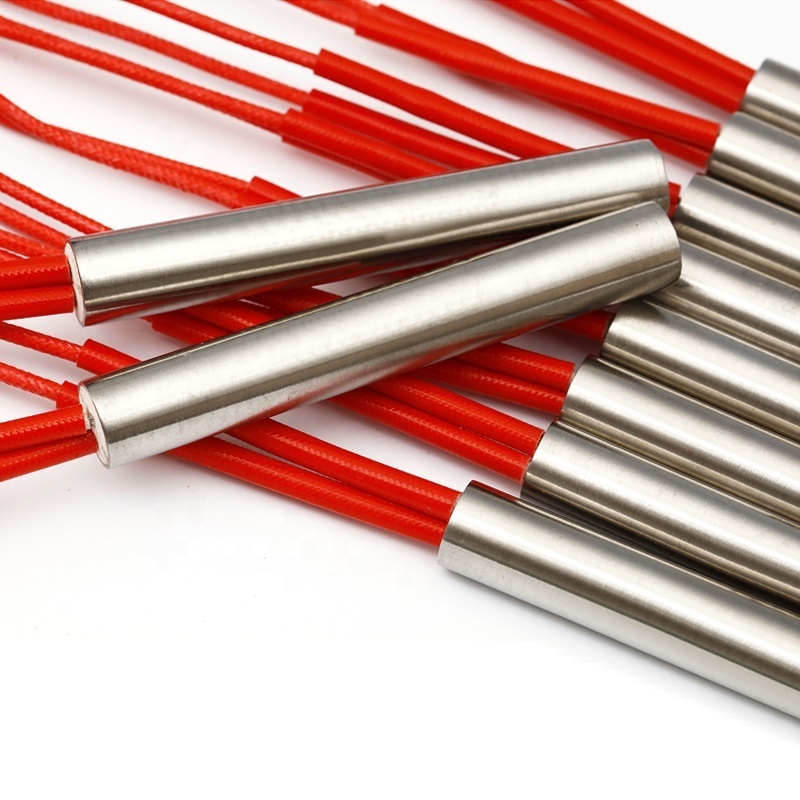

Electric Mold Cartridge Heaters Heating Element Cylindrical Tubular 6mm Tube AC110V/220V/380V 50W/60W/80W/90W/100W
is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080), high temperature leads and seamless stainless steel sheath(SS304,321,316, Incoloy800,840).
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Usually in tube form, it is widely used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Features
1. Tube diameter: Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone)
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: PTFE or Silicone)
Catrridge Heater Construction
Product Specification
|
Outer Sheath Material
|
Stainless Steel 304, 321, 316; Incoloy 800; Incoloy 840
|
|
Resistance Heating Wire
|
Nichrome 8020 resistance wire
|
|
Wattage Tolerance
|
+5%, -10%
|
|
Resistance Tolerance
|
+10%, -5%
|
|
Voltage Available
|
12 to 600 volts customied
|
|
Maxium Heating Temperature
|
800 Degree Celsius
|
|
Length Tolerance
|
±1mm
|
|
Diameter Tolerance
|
±0.02mm
|
|
Standard Cold Size
|
5-10mm
|
|
Insulation Resistance (cold)
|
≥ 500 MΩ
|
|
Maxium Leakage Current (cold)
|
≤0.5 mA
|
|
Lead Orientation
|
A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.
B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater |
Product Application
* Injection moulding-Internal heating of nozzies
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
* Hot runner systems-Heating of manifolds
* Packaging industry-Heating of cutting bars
* Packaging industry-Heating of hot stamps
* Laboratories-Heating of analytical equipment
* Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood/Fluid Warmer,Temperature Therapy
* Telecommunications:Deicing,Enclosure Heater
* Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
* Food Service:Steamers,Dish Washers,
* Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
