Quick Details
-
Brand Name:
-
VIKSTARS/OEM
-
Model Number:
-
VS-IHB-F05/10/15/20/30
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
10/°30°/45°/60°
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
85-265V
-
Lamp Luminous Efficiency(lm/w):
-
120-160, 120-160
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
41
-
Product Name:
-
LED Stadium Light
-
LED Driver:
-
Constant isolated driver
-
LED Light Source:
-
SMD 3030/5050 LEDs
-
Power:
-
500w/1000w/1500w/2000w/3000w
-
Beam angle:
-
10/°30°/45°/60°
-
Size:
-
56.3*31.3*41.3/66.5*60.3*57.4/66.5*88.5*81.1/116.6*60.3*57.3cm
-
Installation:
-
Bracket arm
-
Warranty(Years):
-
5-7years
-
Keyword:
-
high mast industry stadium light lamp
Quick Details
-
Lamp Luminous Flux(lm):
-
60000lm-480000lm
-
Warranty(Year):
-
5-7Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIKSTARS/OEM
-
Model Number:
-
VS-IHB-F05/10/15/20/30
-
Color Temperature(CCT):
-
2700-6500K
-
Beam Angle(°):
-
10/°30°/45°/60°
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
85-265V
-
Lamp Luminous Efficiency(lm/w):
-
120-160, 120-160
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 50
-
Product Weight（kg）:
-
41
-
Product Name:
-
LED Stadium Light
-
LED Driver:
-
Constant isolated driver
-
LED Light Source:
-
SMD 3030/5050 LEDs
-
Power:
-
500w/1000w/1500w/2000w/3000w
-
Beam angle:
-
10/°30°/45°/60°
-
Size:
-
56.3*31.3*41.3/66.5*60.3*57.4/66.5*88.5*81.1/116.6*60.3*57.3cm
-
Installation:
-
Bracket arm
-
Warranty(Years):
-
5-7years
-
Keyword:
-
high mast industry stadium light lamp
Hot Items
Specification
Square module led stadium light with brim high mast lighting price in malaysia for airport tower tunnel outdoor lamp
|
Model No
|
VS-IHB-F05
|
VS-IHB-F10
|
VS-IHB-F15
|
VS-IHB-F20
|
VS-IHB-F30
|
|
Power
|
500W
|
1000W
|
1500W
|
2000W
|
3000W
|
|
Voltage
|
85-265Vac
|
85-265Vac
|
85-265Vac
|
85-265Vac
|
85-265Vac
|
|
Efficiency
|
120-160 lm/w
|
120-160 lm/w
|
120-160 lm/w
|
120-160 lm/w
|
120-160 lm/w
|
|
LED Chip
|
SMD 3030/5050
|
SMD 3030/5050
|
SMD 3030/5050
|
SMD 3030/5050
|
SMD 3030/5050
|
|
LEDs QTY
|
920×1pcs
|
920×2pcs
|
920×3pcs
|
920×4pcs
|
920×6pcs
|
|
C.R.I
|
>70Ra
|
>70Ra
|
>70Ra
|
>70Ra
|
>70Ra
|
|
IP Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Color Temp
|
2700K-6500K
|
2700K-6500K
|
2700K-6500K
|
2700K-6500K
|
2700K-6500K
|
|
Working Temp
|
-20℃ - 50℃
|
-20℃ - 50℃
|
-20℃ - 50℃
|
-20℃ - 50℃
|
-20℃ - 50℃
|
|
Beam Angle
|
10/°30°/45°/60°
|
10/°30°/45°/60°
|
10/°30°/45°/60°
|
10/°30°/45°/60°
|
10/°30°/45°/60°
|
|
Installation
|
Bracket
|
Bracket
|
Bracket
|
Bracket
|
Bracket
|
|
Lifespan
|
>50000 hrs
|
>50000 hrs
|
>50000 hrs
|
>50000 hrs
|
>50000 hrs
|
|
Size
|
56.3*31.3*41.3cm
|
66.5*60.3*57.4cm
|
66.5*88.5*81.1cm
|
116.6*60.3*57.3
cm
|
116.6*88.5*81.1cm
|
|
Package
|
59.5*39*26cm
|
72*72*26cm
|
106*72*26cm
|
118.5*72*26cm
|
118.5*72*26cm
|
|
NW
|
11kg
|
27.3kg
|
41kg
|
54.6kg
|
82kg
|
|
Warranty
|
5-7years
|
5-7years
|
5-7years
|
5-7years
|
5-7years
|
Product Description

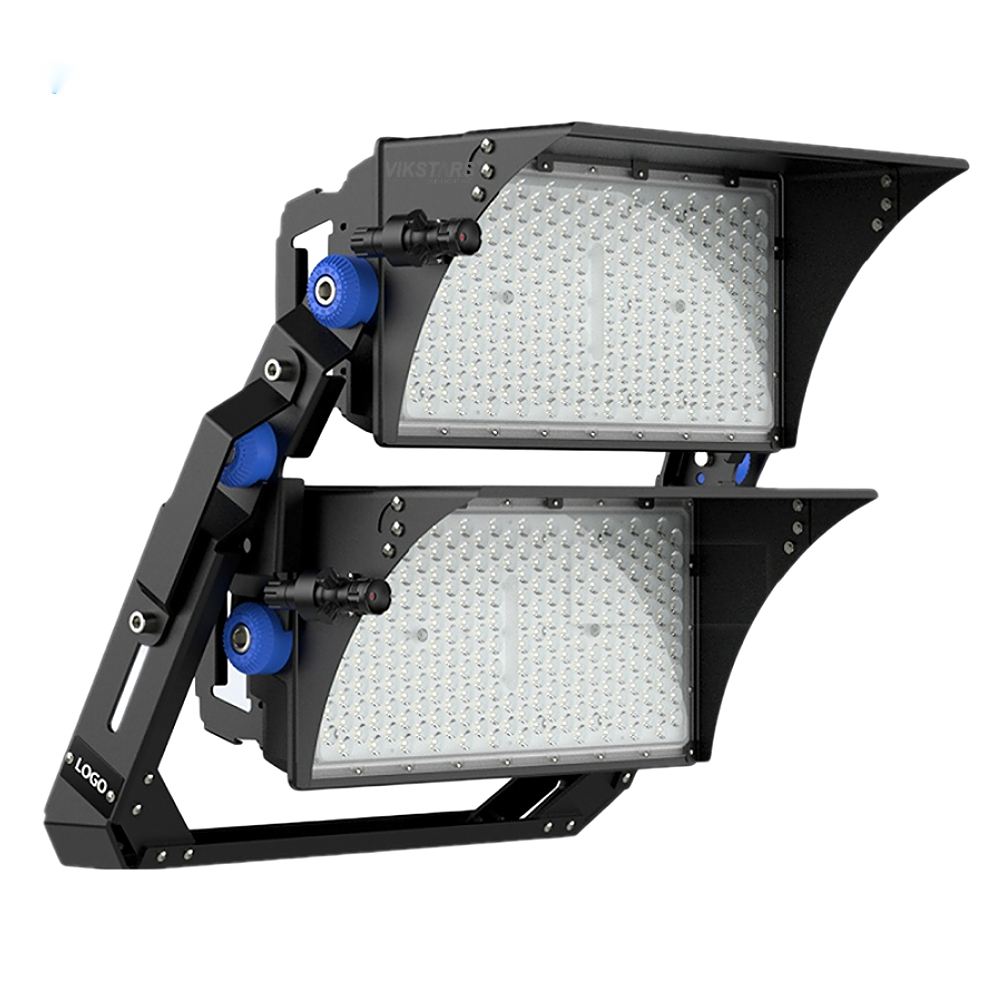

500-2000W module stadium lights front and back
Advantages
1. Module design, slide side, easy to install and deliver.
2.
SMD3030/5050 leds, the efficiency can be up to 160lm/w, provide more luminous flux and better lighting effect.
3.
10/°30°/45°/60° beam angle for option.
4. The cap brim enhance the light concentration and protect the PC lens from sunshine & rain to prolong the lifespan of the lens.
4. The cap brim enhance the light concentration and protect the PC lens from sunshine & rain to prolong the lifespan of the lens.
5. The die casting aluminum housing case provides better heat dissipation and waterproof for the light.
6. Adopt 85-265vac wide range voltage design, suitable for more lighting condition.
6. Adopt 85-265vac wide range voltage design, suitable for more lighting condition.
3000/4000/6000K for option
2
high mast industry stadium light lamp
500-2000w Module Flood Light Sizes
Applications
LED stadium light are widely used in industry for Indoor and outdoor lighting: stadium, highways, main road, gyms, airport, sport field, hall, wharf, tower and other lighting programs.
