Quick Details
-
Cooling Capacity:
-
1ton
-
Place of Origin:
-
China
-
Brand Name:
-
Haiyao
-
Voltage:
-
220V 60Hz/380V 50Hz
-
Power:
-
3000W
-
Dimension(L*W*H):
-
L-Type: 5*3*2.5 meter
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Video technical support
-
Type of door:
-
Convex Hinged Door
-
Cooling system:
-
Air Cooling
-
Panel Material:
-
Both side of 0.5mm stainless steel 304
-
Foaming Material:
-
Polyurethane(PU)
-
Refrigeration Storage Volume:
-
36cbm
-
Compressor:
-
3HP GEA Bock HGX22e/160-4 S
-
Product name:
-
5 Meter Length Walking cooler and freezer with glass door
Quick Details
-
Temperature:
-
-22°C~0°C
-
Compressor brand:
-
TECUMSEH
-
Panel Thickness:
-
100mm
-
Cooling Capacity:
-
1ton
-
Place of Origin:
-
China
-
Brand Name:
-
Haiyao
-
Voltage:
-
220V 60Hz/380V 50Hz
-
Power:
-
3000W
-
Dimension(L*W*H):
-
L-Type: 5*3*2.5 meter
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Video technical support
-
Type of door:
-
Convex Hinged Door
-
Cooling system:
-
Air Cooling
-
Panel Material:
-
Both side of 0.5mm stainless steel 304
-
Foaming Material:
-
Polyurethane(PU)
-
Refrigeration Storage Volume:
-
36cbm
-
Compressor:
-
3HP GEA Bock HGX22e/160-4 S
-
Product name:
-
5 Meter Length Walking cooler and freezer with glass door
![]() |
1. Polyurethane panels are 100% polyurethane insulation, foamed by high pressure by using BASF foaming material,green to the environment.
2. All the panels are with fire retardant, reach the B1 hard firing material for the safety.
|
3HP GEA Bock
|
![]() |
![]() |
The connection of our cold room is with cam lock construction and excentric fasteners for tight connection and sealing of the cold room. |
Emerson expansion valve R404 |
![]() |
Emerson EK163 3/8 (3-5HP) filter | |
Weiguang Outer-Rotor φ400, 3HP/220V/60Hz | |
Glass door with heater wire | |
Door flame with LED lights |
|
Front rack: Five-layer thickened shelves Inside rack: Stainless steel shelves |
|
1. The cold room panel is durable in use, color lasting & coated layer keeping. 2. The hinged door panel of our cold room is made by heavy duty door hinge, heavy
duty door lock hydraulic door closer.
are made with PE sealing rubber which is with high quality sealing. |
|
|
Jinguan air cooler DD15 |

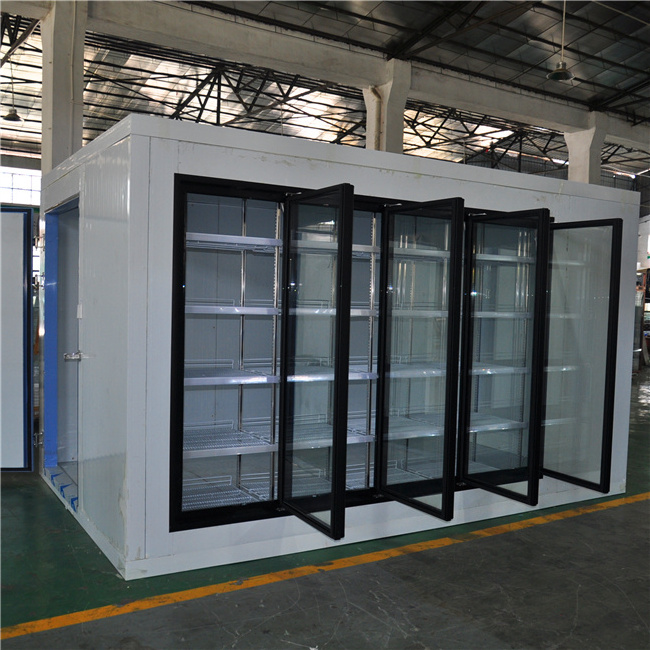

Sample actual photos
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 43kg/m³ which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.
The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
3. Gasket is around the edge of each panel , when panel lock together, the cool air will not leak, and the hot air can not come in.
4. According to the inspection result of national JB/T6527-2006<modular insulation sandwiched panel's conditions>
No. |
Inspection item |
Unit |
Technology Inspection |
Insection result |
1 |
Density |
Kg/m ³ |
32-50 |
43 |
2 |
Compressing strength (10% deformation) |
Kpa |
≥160 |
200 |
3 |
Bending stregth |
Kpa |
≥245 |
331 |
4 |
Absorbing rate |
% |
≤4 |
3 |
5 |
Heating coefficient |
W/m.k |
0.024 |
0.024 |
6. |
Average burning time(vertical) |
S |
≤30 |
3 |
7 |
Average burning height(vertical) |
S |
≤250 |
250 |
5. Panel Thickness
Panel THK(mm) | Operation Temp |
50 | 5°C or above |
75 | -5 °C or above |
100 | -25 °C or above |
150 | -45 °C or above |
200 | -55 °C or above |
