Quick Details
-
Rated Loading Capacity:
-
3.2t
-
Rated Lifting Moment:
-
6.8TON.M
-
Max. Lifting Height:
-
9.5M
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
BOB-LIFT
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
according to customer request
-
Brand:
-
BOB-LIFT( accept OEM)
-
Max lifting moment:
-
6.8t.m
-
Rotation Angle:
-
360
-
Product name:
-
small 3ton hydraulic boom ship vessel marine deck crane
-
Hydraulic System Flow:
-
30L/min
-
Oil Tank Capacity:
-
60L
-
mini marine deck crane:
-
hydraulic knuckle boom crane
Quick Details
-
Weight (KG):
-
1250
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
Ship, Boat, Port, Vessel
-
Rated Loading Capacity:
-
3.2t
-
Rated Lifting Moment:
-
6.8TON.M
-
Max. Lifting Height:
-
9.5M
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
BOB-LIFT
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
according to customer request
-
Brand:
-
BOB-LIFT( accept OEM)
-
Max lifting moment:
-
6.8t.m
-
Rotation Angle:
-
360
-
Product name:
-
small 3ton hydraulic boom ship vessel marine deck crane
-
Hydraulic System Flow:
-
30L/min
-
Oil Tank Capacity:
-
60L
-
mini marine deck crane:
-
hydraulic knuckle boom crane
Product Parameters
|
Max Lifting Capacity
|
Ton
|
3.2
|
|
Max Lifting Moment
|
Ton.m
|
6.8
|
|
Recommend Power
|
KW
|
11
|
|
Hydraulic System Flow
|
L/min
|
30
|
|
Hydraulic System Pressure
|
MPa
|
28
|
|
Oil Tank Capacity
|
L
|
60
|
|
Rotation Angle
|
°
|
360
|
|
Self Weight
|
kg
|
1250
|

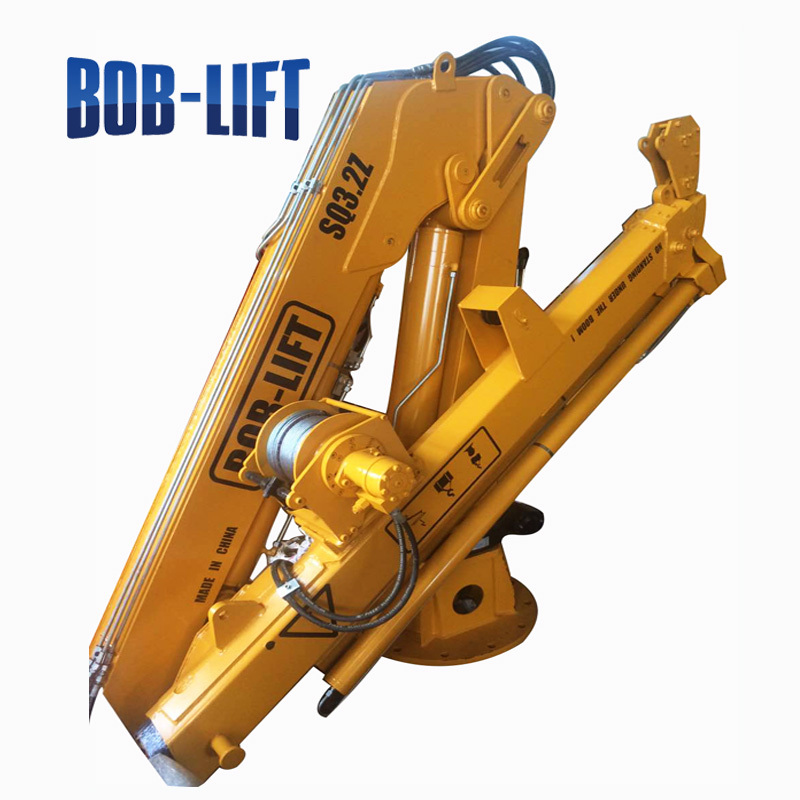

Product Image
CONTACT
BOB-LIFT CRANES
Production Process
Certificate
Customer Visiting
FAQ
1) How many years of your factory?
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
We have 16 years production and nearly 10 years experience, we exported to more than 50 countries & regions.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
