Quick Details
-
Model Number:
-
CYX32
-
Product name:
-
CYX32 piezoelectric pressure sensor transducer 0-10v
-
3 pressure forms:
-
gauge pressure (G), absolute pressure (A), seal gauge pressure (S)
-
Measurement range:
-
-100kPa ~ 0 ~ 10kPa...100MPa
-
Net weight:
-
about 23g (general, CYX19Ti)
-
Diaphragm material:
-
stainless steel 316L / titanium TA1 (CYX19Ti)
-
Response time (10% - 90%):
-
< 1ms
-
Isolated structure:
-
suitable for multiple fluid media
-
Power supply:
-
1.5mA/5V
-
Product size:
-
19mm standard pressure sensor
-
Input impedance:
-
2.7kΩ ~ 5kΩ
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
HUATIAN
-
Model Number:
-
CYX32
-
Product name:
-
CYX32 piezoelectric pressure sensor transducer 0-10v
-
3 pressure forms:
-
gauge pressure (G), absolute pressure (A), seal gauge pressure (S)
-
Measurement range:
-
-100kPa ~ 0 ~ 10kPa...100MPa
-
Net weight:
-
about 23g (general, CYX19Ti)
-
Diaphragm material:
-
stainless steel 316L / titanium TA1 (CYX19Ti)
-
Response time (10% - 90%):
-
< 1ms
-
Isolated structure:
-
suitable for multiple fluid media
-
Power supply:
-
1.5mA/5V
-
Product size:
-
19mm standard pressure sensor
-
Input impedance:
-
2.7kΩ ~ 5kΩ

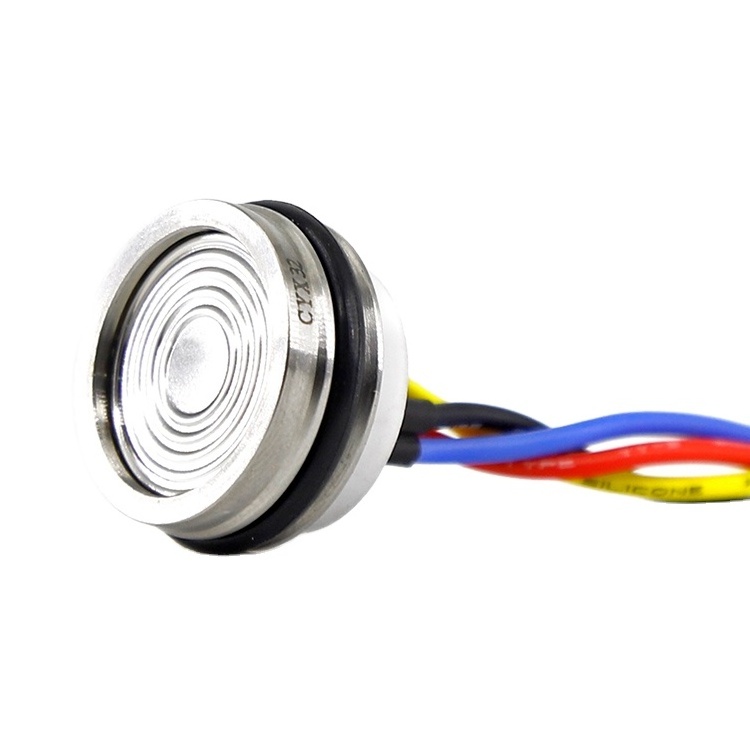

China Huatian CYX32 0-10v all 316L stainless steel pressure sensor transducer for multiple fluid media
Recommend Products
Product Parameters
|
Parameters
|
Typical value
|
Max value
|
Unit
|
|
|
Full scale output
|
100
|
250
|
mV
|
|
|
Zero output
|
± 1
|
± 2
|
mV
|
|
|
Nonlinearity
|
0.2
|
0.5
|
%FS
|
|
|
Hysteresis
|
0.05
|
0.08
|
%FS
|
|
|
Repeatability
|
0.05
|
0.08
|
%FS
|
|
|
Input / output impedance
|
2.6
|
5.0
|
kΩ
|
|
|
Zero temperature drift
(note 1) |
±0.4
|
±1.0
|
%FS, @25℃
|
|
|
Sensitivity temperature drift
(note 2) |
±0.4
|
±1.0
|
%FS, @25℃
|
|
|
Long-term stability
|
0.2
|
0.3
|
%FS / year
|
|
|
Excitation current
|
1.5 (the maximum input voltage can be 10V)
|
|
mA
|
|
|
Insulation resistance
|
500（100VDC）
|
|
MΩ
|
|
|
Compensation temperature (note 3)
|
0～50; -10～70
|
|
℃
|
|
|
Working temperature
|
-40～+125
|
|
℃
|
|
|
Storage temperature
|
-40～+125
|
|
℃
|
|
|
Response time
|
≤1
|
|
ms
|
|
|
Housing and diaphragm material
|
stainless steel 316L
|
|
|
|
|
O-ring
|
viton, nitrile rubber, silicone rubber
|
|
|
|
|
Measuring medium
|
Fluids compatible with 316L, NBR or Viton or silicone
|
|
|
|
|
Life (25 ℃)
|
＞ 1 × 108 pressure cycle (80% FS)
|
|
times
|
|
|
Filling medium
|
silicone oil
|
|
|
|
|
Sealing ring
|
Φ 16 × 1.8mm (nitrile or fluorinated rubber (note 4))
|
|
|
|
Details Images
Product features:
Structure performance:
diaphragm material: stainless steel 316L / titanium TA1 (CYX19Ti)
shell material: stainless steel 316L / titanium TC4 (CYX19Ti)
pressure lead-in tube material: stainless steel 316L
pin lead: gilded Kovar
sealing ring: NBR, Viton (optional)
net weight: about 23g (general, CYX19Ti)
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
● liquid level measurement
● gas and liquid pressure measurement
● pressure detection and calibration instrument
● pressure switch and hydraulic system
● well monitoring
● refrigeration equipment and air conditioning system
● fire Internet of things
