Quick Details
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1800 KG
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CONOVAL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3180*1020*1550mm
-
Power (kW):
-
11 kW
-
Product name:
-
Spiral ribbon mixer
-
Speed of driving shaft:
-
0-28/0-8 r/min
-
Function:
-
Liquid wet dry heating jacket starch seeds sugar powder mixing
-
Capacity:
-
80kg-15000kg
-
Usage:
-
Food/chemical/ industry
Quick Details
-
Barrel Volume (L):
-
1500
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
20 - 60 r.p.m
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1800 KG
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
CONOVAL
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3180*1020*1550mm
-
Power (kW):
-
11 kW
-
Product name:
-
Spiral ribbon mixer
-
Speed of driving shaft:
-
0-28/0-8 r/min
-
Function:
-
Liquid wet dry heating jacket starch seeds sugar powder mixing
-
Capacity:
-
80kg-15000kg
-
Usage:
-
Food/chemical/ industry
Product Description

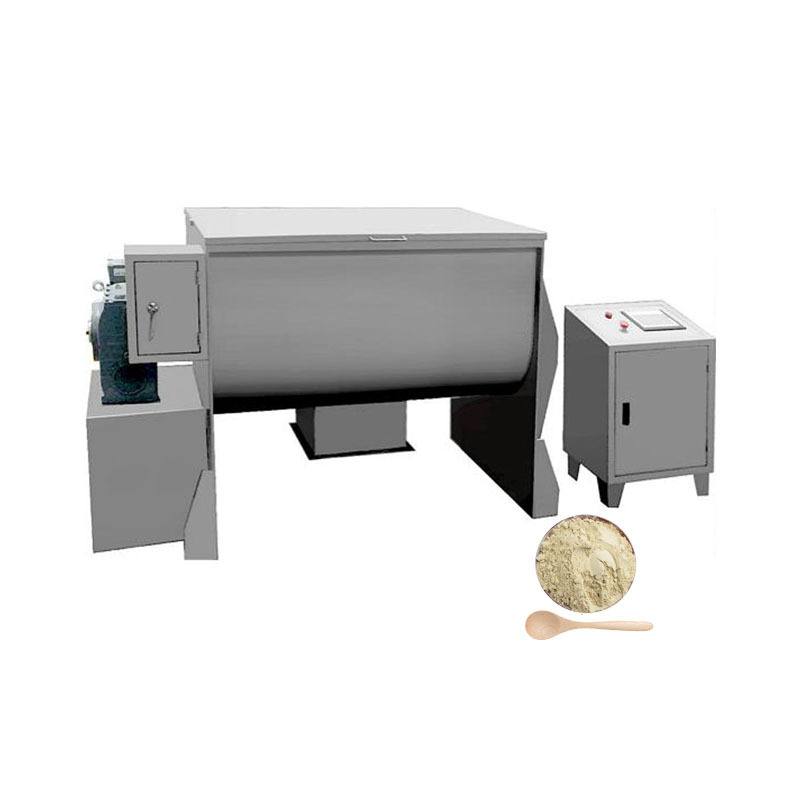

Spiral ribbon mixer
WLDH horizontal helical ribbon mixing machine is widely applied for the solid-solid mixing or solid-slurry mixing in industries of chemical, food, compound fertilizer, health-care products, dyes, paints, rubber, building materials, powdered milk, feed, additives, aquaculture, bioengineering, fine chemical, ceramics, refractory material, rare earth, plastic, glass or nuclear materials, etc.
In WLDH horizontal helical ribbon mixing machine, there are two layers of spiral conveyor, and with unique structure, the
operation is stable, the noise is low, the service life is long, and it is convenient to install. With advantages of fast mixing
speed and good mixing effect, the machine is especially suitable for those sticky products.
operation is stable, the noise is low, the service life is long, and it is convenient to install. With advantages of fast mixing
speed and good mixing effect, the machine is especially suitable for those sticky products.
If scrapers are equipped in the spiral conveyor, the machine can be used for the mixing of sticky or mushy products.
When the product type is changed, different spiral conveyor can be used, and the heating / drying jacket can be equipped.
If the atomizing is needed, special nozzle can be used.
After each mixing, the machine should be cleaned. There is a door, and it is convenient to clean the machine.
When the product type is changed, different spiral conveyor can be used, and the heating / drying jacket can be equipped.
If the atomizing is needed, special nozzle can be used.
After each mixing, the machine should be cleaned. There is a door, and it is convenient to clean the machine.
Main Features：
1.It is suitable for mixing materials of powder-powder and power-liquid, especially for paste,powder and thick materials, such as putty, stone coatings, metal powders etc.
2.It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low
pollution and little destruction to frangible material.
3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4.Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time.
5.The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
2.It is a new type of mixing equipment with high efficiency, high uniformity, high load factor,low energy consumption, low
pollution and little destruction to frangible material.
3.The major sections of a mixer are barrel, ribbon agitators, feeding ports, discharging port and driven unit.
4.Double ribbon mixer drive the material from two ends to centre through the help of the outer ribbon, while the inner ribbon push the material from centre to two ends, thus, material achieve a high mixing effect at short time.
5.The ribbon mixer can be equipped with heating or cooling jacket if temperature control is required. We will add spraying or atomizing unit inside the tank.
Details Images
Working principle:
In WLDH horizontal helical ribbon mixing machine, be driven by the stirring shaft, by the external spiral, powders are driven to move from both sides to the center, and by the internal spiral, powders are driven to move from the center to both sides. At the same time, some powders are pushed by the spiral, and moves along the axial direction. So powders can be mixed quickly, and the mixing effect is good.
Specification
|
Model
|
Max work volume
|
Spindle speed
|
Motor
|
Overall size
|
Machine weight
|
|
|
L
|
R/min
|
Kw
|
Mm
|
Kg
|
|
WLDH-100
|
70
|
76
|
2.2
|
1080*758*615
|
330
|
|
WLDH-300
|
210
|
66
|
4
|
1550*812*1015
|
720
|
|
WLDH-500
|
350
|
66
|
7.5
|
1975*1059*1120
|
980
|
|
WLDH-1000
|
700
|
41
|
11
|
2340*1380*1455
|
1700
|
|
WLDH-1500
|
1050
|
33
|
11
|
3180*1020*1550
|
1800
|
|
WLDH-2000
|
1400
|
33
|
18.5
|
2480*1651*1805
|
2100
|
|
WLDH-3000
|
2100
|
33
|
22
|
2945*1896*1980
|
3000
|
|
WLDH-4000
|
2800
|
29
|
22
|
3038*1946*2205
|
3980
|
|
WLDH-5000
|
3500
|
29
|
30
|
3932*2010*2035
|
4620
|
|
WLDH-6000
|
4200
|
26
|
37
|
3938*1882*2246
|
6180
|
|
WLDH-8000
|
5600
|
26
|
45
|
3986*2160*2516
|
8200
|
|
WLDH-10000
|
7000
|
19
|
55
|
4500*2270*2667
|
8920
|
|
WLDH-12000
|
8400
|
19
|
55
|
4500*2466*2785
|
9520
|
|
WLDH-15000
|
10500
|
17
|
75
|
5363*2470*3020
|
9950
|
|
WLDH-20000
|
14000
|
17
|
75
|
5670*2650*3497
|
11150
|
Notes:If any change of data, we will not notify further
