Quick Details
-
Brand Name:
-
Waleeta
-
Model Number:
-
HDQ-02B
-
Traction force:
-
10~970N/10~294N
-
Drive distance:
-
0~200mm/0~250mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Waleeta
-
Model Number:
-
HDQ-02B
-
Traction force:
-
10~970N/10~294N
-
Drive distance:
-
0~200mm/0~250mm
Products Description

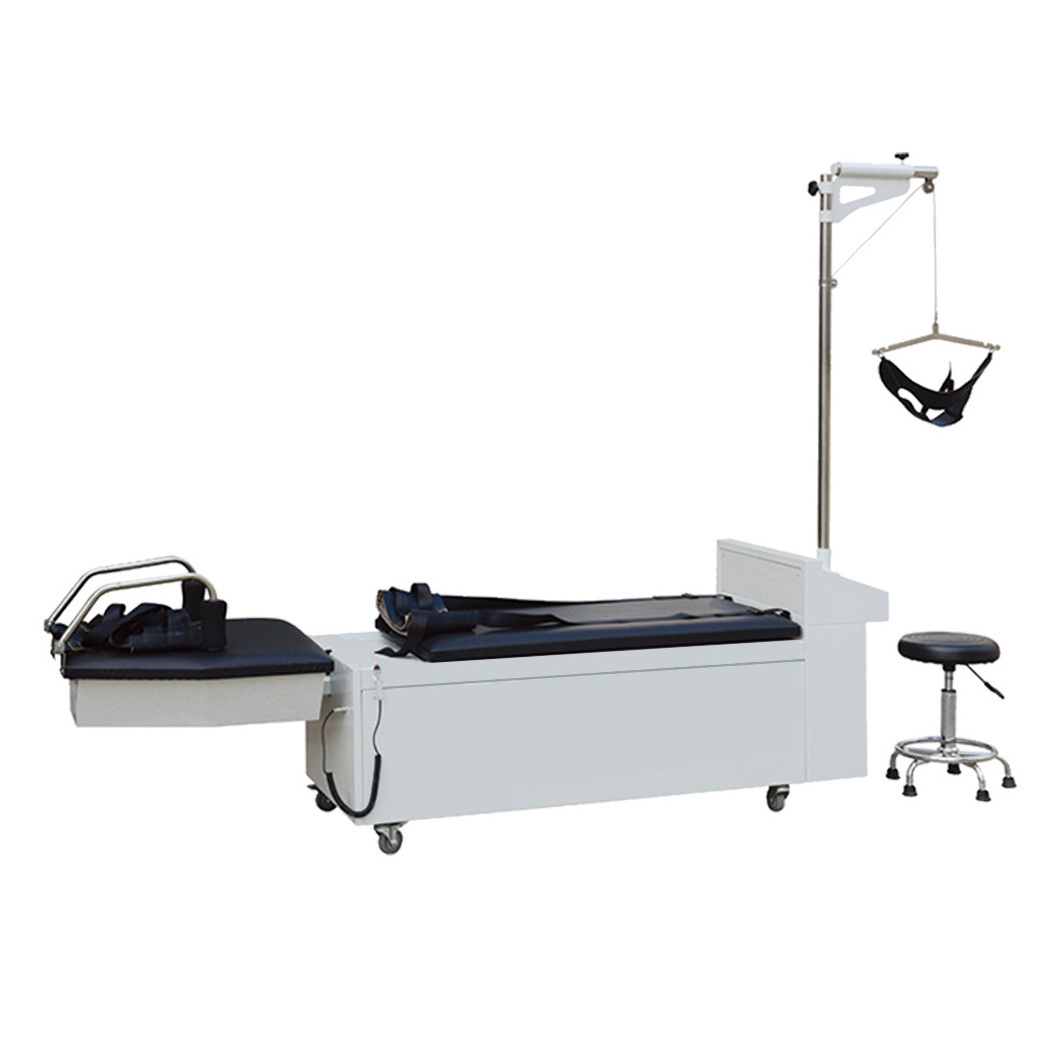

HDQ-02B Electric cervical and lumbar orthopedic physiotherapy traction bed
1. Scope of application:
This product is suitable for the treatment of cervical spondylosis and lumbar spondylosis. It can carry out traction modes such as continuous, gap, angulation, swing, etc., controlled by microcomputer software, and input signals by touching the key. Lumbar spine and cervical spine can be traction at the same time. With monitoring program traction process protection to ensure patient safety.
2. Main structure:
This product is composed of digital display console, traction bed frame, main bed surface, swing bed surface, cervical vertebra traction frame and other components.
3. Technical parameters:
1. Power supply: 220V/50HZ
2. Power: 360VA
3. Traction force: waist pull 10～970 N, neck pull: 10～294 N
4. Set total traction time: 1～60 minutes
5. Continuous traction time: 0-9 minutes
6. Set intermittent traction time: 0～90 seconds
7. Lumbar traction stroke: 0～200 mm
8. Neck traction stroke: 0～250 mm
9. Angular angle: -5°±2°～28°±2°
10. Swing angle: -25°～25°±2°
4. Operating performance:
1. Lumbar traction function: straight traction of the lumbar spine, the maximum traction stroke is 200mm, and the maximum traction force is 970N;
2. Cervical traction function: the maximum traction stroke is 250mm, the maximum traction force is 294N during automatic traction, and the traction force depends on the patient's feeling during manual traction.
3. The system has a total of eight traction modes.
4. The system is equipped with dual emergency stop operations, that is, both doctors and patients can perform emergency stop operations during treatment. During the treatment process, the patient will hold the emergency stop button in his hand so that he feels uncomfortable during the traction process. Press this button to make the system enter the emergency stop reset action to avoid accidents.
5. Basic configuration:
1. 1 main bed 2. 1 set of neck brace
3. One neck brace 4. One seat
5. 1 power cord 6. 2 fuse tubes
7. One emergency back button 8. Two body straps
