Quick Details
-
Transmit frequency:
-
76.00~77.00GHz
-
Transmit capacity:
-
16.0dBm
-
Power consumption:
-
2.5W
-
Distance-measuring range:
-
0.10~20m
-
Distance-measuring accuracy:
-
±0.1m
-
Velocity-measuring range:
-
±60km/h
-
Beam width/TX:
-
Azimuth (-6dB) 120°/Elevation(-6dB) 120°
-
Interface:
-
1xCAN- accordance with ISO11898-2:2016 Standard / 1xTTL
-
Protection class:
-
IP67
-
Operating temperature:
-
-40~85 ℃
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Nanoradar
-
Model Number:
-
SR71
-
Transmit frequency:
-
76.00~77.00GHz
-
Transmit capacity:
-
16.0dBm
-
Power consumption:
-
2.5W
-
Distance-measuring range:
-
0.10~20m
-
Distance-measuring accuracy:
-
±0.1m
-
Velocity-measuring range:
-
±60km/h
-
Beam width/TX:
-
Azimuth (-6dB) 120°/Elevation(-6dB) 120°
-
Interface:
-
1xCAN- accordance with ISO11898-2:2016 Standard / 1xTTL
-
Protection class:
-
IP67
-
Operating temperature:
-
-40~85 ℃
Video Description

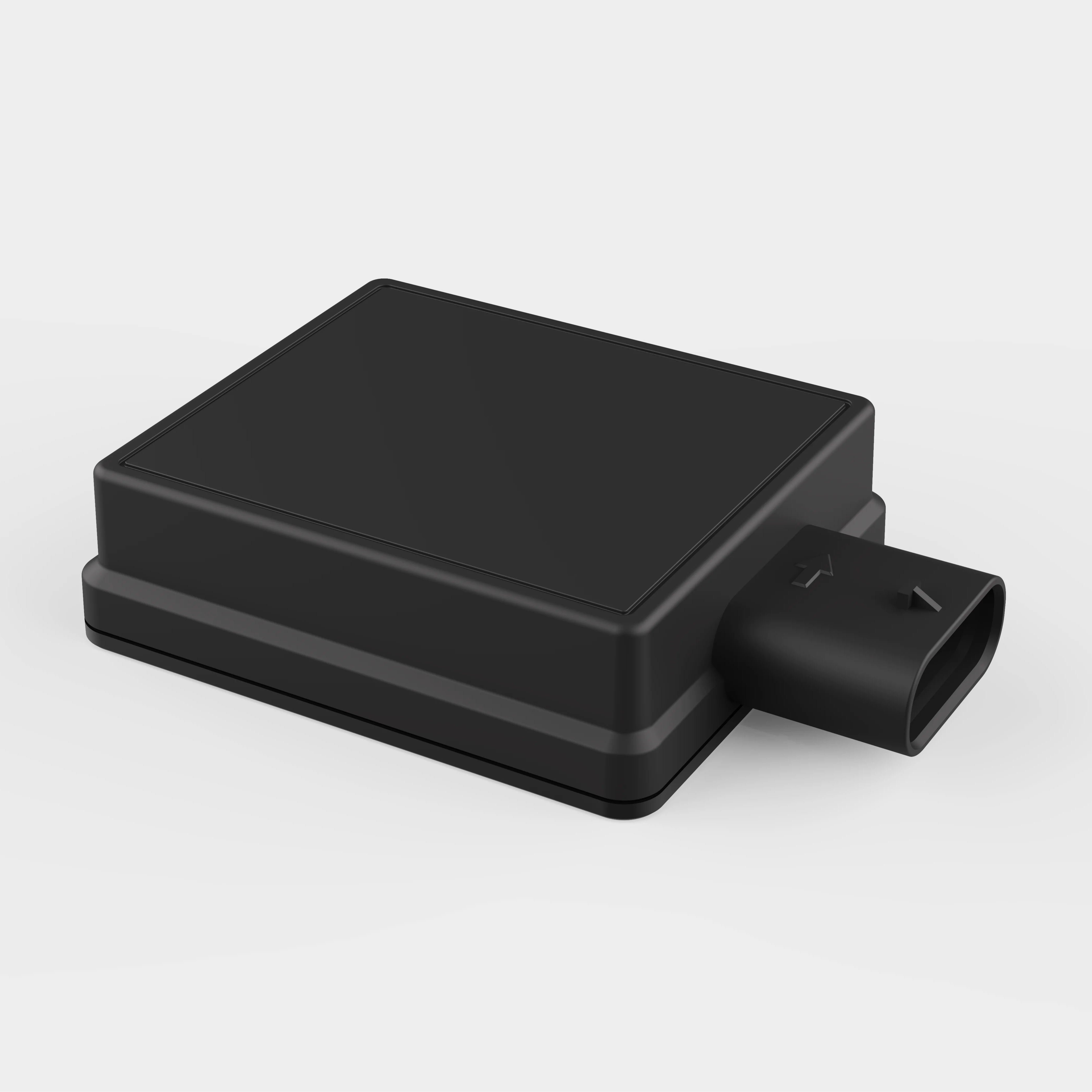

Nanoradar 77GHz SR71 Low Speed Collision Avoidance Radar with 30 meters Short Distance
SR71 is one type 77GHz frequency range compact type short distance middle and low speed avoid obstacles radar. SR71 radar test the electromagnetism wave reflect situation through forward launch cone electromagnetism wave, judge whether has obstacles at front, feedback the opposite distance, angle, speed and other information between obstacles and radar; correctly remind the obstacles information to driver during low speed vehicle forward or during the reverse driving.
This product adopt multiply launch and retrieve antenna, measure distance 0.1~30m, small size, high sensitivity, stable performance, light weight, easy to integrate, product performance already been accepted by the many cooperating partners.
Application
* RCW
*
Multiply sensors merge
*
Teach exhibition
The products applied in unmanned sweeping vehicle, environment protection vehicle, drive train vehicle, mining vehicle and other low speed vehicle application scenes.
*
Work in 77GHz Band for the detection of moving objects;
Features
*
Dual wide-angle detection angle: 120° horizontal, 120° pitch;
* Compact size (77.5×52×18mm);
* Accurately measure the direction, range, velocity and angle of moving targets;
* Protection class IP66 for outdoor use;
* Able to detect 64 targets simultaneously;
* Hige detection rate;
* Protection class IP66 for outdoor use;
* Able to detect 64 targets simultaneously;
* Hige detection rate;
*
Intelligent sensing, realizing 4D height detection.
Specificatio
n
Application scenarios &
Installation cases
Professional Nanoradar team produce professional radar products!
With over 10 years experience radar manufacturer, meanwhile collaborate with car company provide high quality Millimeter Wave Radar.
