Quick Details
-
Optical Resolution:
-
1280*800
-
Scan Speed:
-
120 frames per second
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Barcode Scanner Module
-
Image sensor:
-
1280*800 CMOS
-
Application:
-
Kiosk, ATM, Access Control
-
Interface:
-
RS232/USB
-
Scan Mode:
-
Auto Sense/Trigger /command trigger
-
Interfaces Supported:
-
Wiegand/RS485/RS232/TTL-5v/TTL-3.3v/USB HID POS
-
Certification:
-
CE, FCC, ROHS
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
OEM/ODM
-
Optical Resolution:
-
1280*800
-
Scan Speed:
-
120 frames per second
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Barcode Scanner Module
-
Image sensor:
-
1280*800 CMOS
-
Application:
-
Kiosk, ATM, Access Control
-
Interface:
-
RS232/USB
-
Scan Mode:
-
Auto Sense/Trigger /command trigger
-
Interfaces Supported:
-
Wiegand/RS485/RS232/TTL-5v/TTL-3.3v/USB HID POS
-
Certification:
-
CE, FCC, ROHS

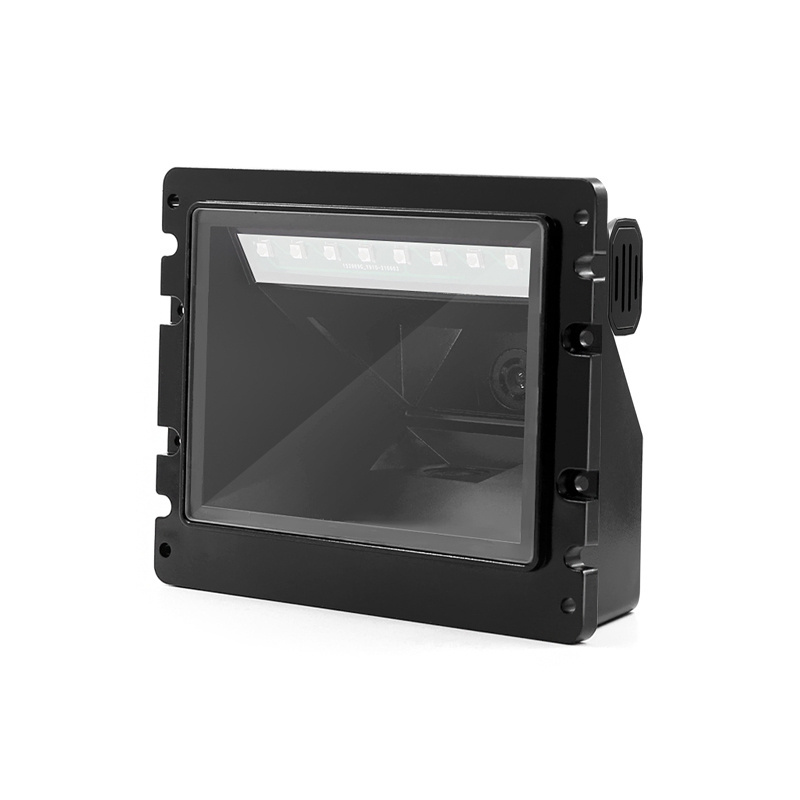

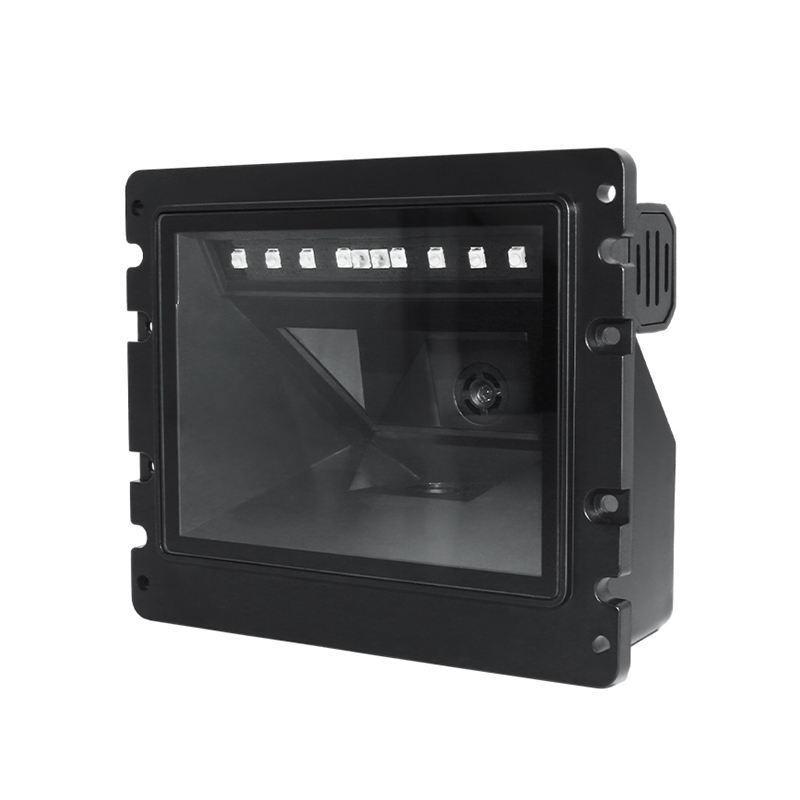

Product Description
Specification
|
Model Name
|
EP9500Y
|
|
Interface
|
USB/RS232
|
|
Decode Capacity
|
All common 1d and 2d codes
|
|
Protocol
|
Serial Port
|
|
Scan Rate
|
120 fps
|
|
Operating Voltage
|
5V
|
|
Image Sensor
|
1280*800
|
|
FOV
|
Horizontal 60°， Vertical 40°
|
|
Dimension
|
115.2(W)×96.2(D)×50.6(H)mm
|
|
Typical Power Consumption
|
250mA
|
|
Warranty
|
3 Years
|
