Quick Details
-
Brand Name:
-
Darhor
-
keyword:
-
high pressure solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
orifice:
-
1.0,1.2,1.5,2.0,2.5,3.0
-
warranty:
-
one year guaranteed
-
sample lead time:
-
5~7 days
-
Order lead time:
-
7~10 days
-
Thread:
-
NPT, BSP, G
-
Seal Material:
-
NBR, EPDM,FKM
-
Medium:
-
Base Oil Water Gas
Quick Details
-
Port Size:
-
1/8" 1/4" 3/8"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHLZ11
-
Brand Name:
-
Darhor
-
keyword:
-
high pressure solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
orifice:
-
1.0,1.2,1.5,2.0,2.5,3.0
-
warranty:
-
one year guaranteed
-
sample lead time:
-
5~7 days
-
Order lead time:
-
7~10 days
-
Thread:
-
NPT, BSP, G
-
Seal Material:
-
NBR, EPDM,FKM
-
Medium:
-
Base Oil Water Gas

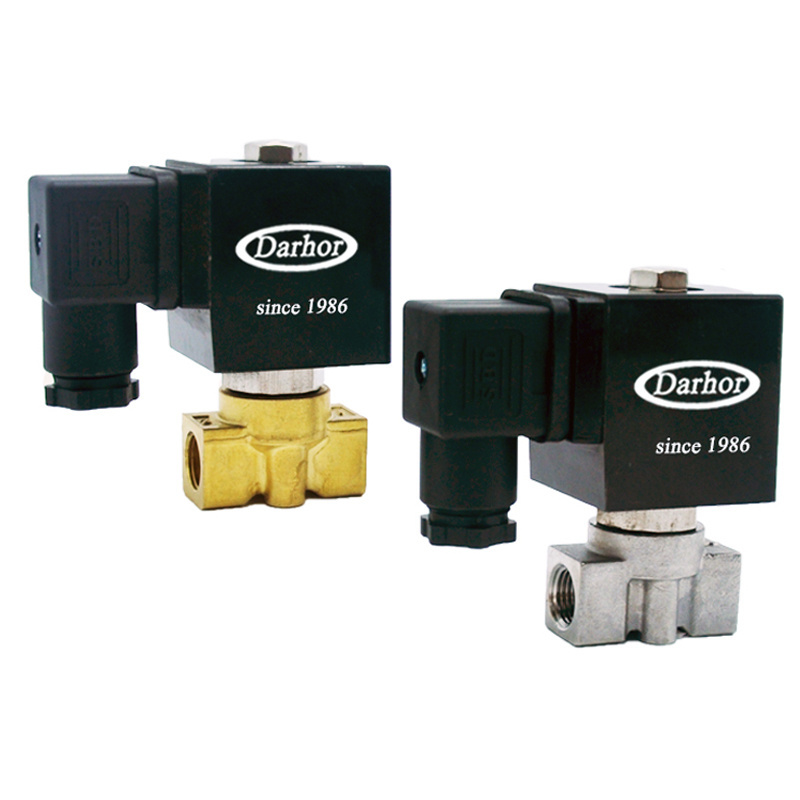

DHLZ11 12v 24v 20bar 30bar 60bar 100bar mini high pressure solenoid valve 150bar
Characteristic:
2. Small size, low power consumption.
Material:
Body-Brass/ SUS304
Seal- NBR,EPDM,VITON
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304
|
Medium:
|
High pressure liquid, gas, light oil.
|
|
Temperature:
|
NBR Seal:-10℃ to 80℃ EPDM:-10℃ to 120℃
|
|
Pressure:
|
0-17.0 MPa
|
|
Port Size:
|
1/8",1/4", 3/8"
|
|
Port Thread:
|
BSP,NPT
|
|
Orifice(mm):
|
1.0, 1.2, 1.5, 2.0, 2.5, 3.0
|
|
Voltage:
|
DC - 12V,24V,36V AC - 24V,120V,240V/60Hz;110V,220V/50Hz
|
|
Coils:
|
S71B,19VA(AC),17W(DC),IP65,100%ED NASS COIL 0543 on request
|
|
DHLZ11 Series Normally Closed, with Coil S71B, DIN
|
|
|
|
|
|
|
|
|
||||||||
|
Valve
Body |
Port
Size |
Orifice
|
Cv
|
Min
Pressure (MPa) |
Max Pressure(MPa)
|
|
Seals
Material |
Body
Material |
||||||||
|
|
|
|
|
|
AC(19VA)
|
DC(17W)
|
|
|
||||||||
|
DHLZ1111XXX
|
1/8''
|
1.0
|
0.04
|
0
|
17
|
11
|
NBR,
EPDM, or VITON |
Brass or
Stainless steel |
||||||||
|
DHLZ1121XXX
|
|
1.2
|
0.05
|
0
|
15
|
10
|
|
|
||||||||
|
DHLZ1131XXX
|
|
1.5
|
0.08
|
0
|
13
|
8.6
|
|
|
||||||||
|
DHLZ1141XXX
|
|
2.0
|
0.14
|
0
|
9
|
6.0
|
|
|
||||||||
|
DHLZ1151XXX
|
|
2.5
|
0.23
|
0
|
6
|
4.0
|
|
|
||||||||
|
DHLZ1161XXX
|
|
3.0
|
0.25
|
0
|
3
|
2.0
|
|
|
||||||||
|
DHLZ1112XXX
|
1/4''
|
1.0
|
0.04
|
0
|
17
|
11
|
|
|
||||||||
|
DHLZ1122XXX
|
|
1.2
|
0.05
|
0
|
15
|
10
|
|
|
||||||||
|
DHLZ1132XXX
|
|
1.5
|
0.08
|
0
|
13
|
8.6
|
|
|
||||||||
|
DHLZ1142XXX
|
|
2.0
|
0.14
|
0
|
9
|
6.4
|
|
|
||||||||
|
DHLZ1152XXX
|
|
2.5
|
0.23
|
0
|
6
|
4.0
|
|
|
||||||||
|
DHLZ1162XXX
|
|
3.0
|
0.25
|
0
|
3
|
2.0
|
|
|
||||||||
|
DHLZ1172XXX
|
3/8''
|
2.5
|
0.23
|
0
|
6
|
4.0
|
|
|
||||||||
|
DHLZ1182XXX
|
|
3.0
|
0.25
|
0
|
30
|
2.0
|
|
|
||||||||
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
