Quick Details
-
Voltage:
-
100-240V
-
Power:
-
70W
-
Dimension(L*W*H):
-
315*300*200mm
-
Product name:
-

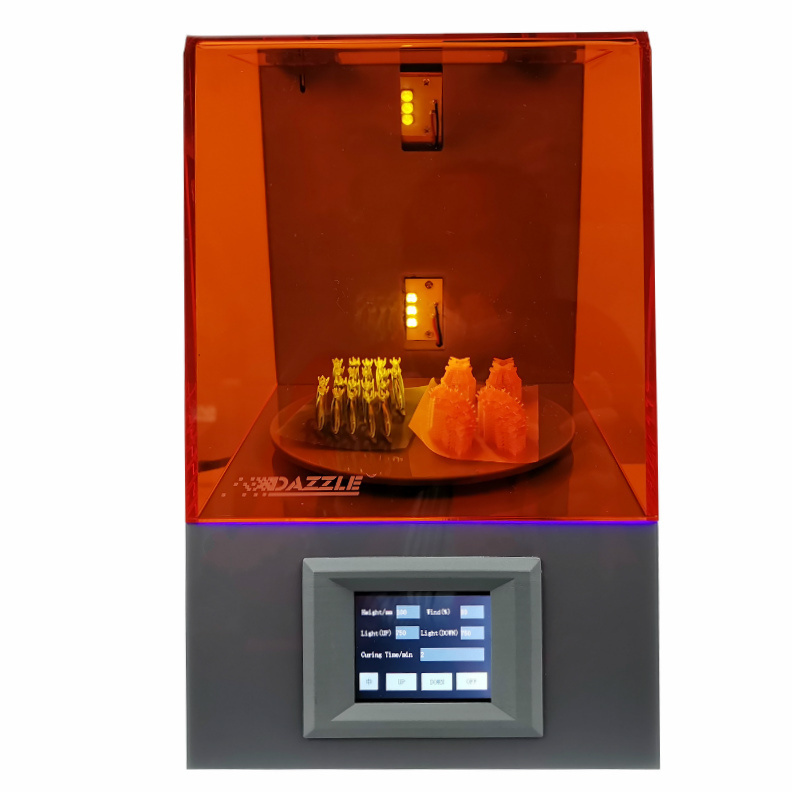

UV Cure Chamber
-
Net Weight:
-
3.8 KG
-
Gross Weight:
-
5 KG
-
Curing size:
-
200*190*200mm
-
Equipment size:
-
315*300*200mm
-
Input voltage:
-
100 ~ 240V 50/60hz
-
Ultraviolet wavelength:
-
405nm
-
Ultraviolet power:
-
390 mW (100mm away from LED lamp)
-
Device power consumption:
-
70W
-
Keywords:
-
UV Dryer, 3D Printing Cure,UV lamp for resin 3D printer
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
Quick Details
-
Type:
-
UV dryer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAZZLE 3D
-
Voltage:
-
100-240V
-
Power:
-
70W
-
Dimension(L*W*H):
-
315*300*200mm
-
Product name:
-
UV Cure Chamber
-
Net Weight:
-
3.8 KG
-
Gross Weight:
-
5 KG
-
Curing size:
-
200*190*200mm
-
Equipment size:
-
315*300*200mm
-
Input voltage:
-
100 ~ 240V 50/60hz
-
Ultraviolet wavelength:
-
405nm
-
Ultraviolet power:
-
390 mW (100mm away from LED lamp)
-
Device power consumption:
-
70W
-
Keywords:
-
UV Dryer, 3D Printing Cure,UV lamp for resin 3D printer
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
Certification:
-
CE
Parameters：
1. Solidified platform with rotation function (6 RPM)
2. The cooling fan air volume is adjustable from 0 to 100 (flow rate: 20.3 CFM)
3. UV LED lamp source can be independently controlled up and down to meet the curing requirements of special products
4. Ultraviolet LED lamp source can be irradiated vertically and tilted 45 degrees, which is convenient for curing products in an all-round way
5. Adjustable range of ultraviolet light intensity from 0 to 1500 (measuring power from 0 to 390mw at 100mm)
6. The upper and lower uv lamp plate can independently adjust the curing power
7. Color 2.8-inch resistive touch screen
8. The touch screen interface can be switched between Chinese and English
9. Overheating protection of LED lamp source (50)℃
10.
UV
open cover protection
|
Equipment size
|
315*300*200mm
|
Curing size
|
200*190*200mm
|
|
Gross weight
|
5kg
|
Net weight
|
3.8kg
|
|
Input voltage
|
100 ~ 240V 50/60hz
|
Wavelength
|
405nm to 385nm
|
|
Ultraviolet power
|
390mW (100mm away from LED lamp)
|
Device power
|
70W
|
Related Products
After Sales Service
Company Introduction
Shenzhen Dazzle Laser Forming Technology Co.,Ltd.
is a high-tech enterprise specializing in R&D, manufacturing and sales of 3D printers and resins, which was established in 2012, born with passion in 3D printing. Started by providing 3D printing services, including SLS, SLM, MJP, SLA, and have been serving over 9000 clients for multiple industries, such as dental, electric tools, automobile.
In 2014,
SLA 3D printer program was started, after one year in 2015 we successful released the S130 SLA 3D printer. And then we started developing DLP 3D printer. Our driven is to make the excellent level products.
To improve
the quality of our products, we have dedicated around 25% of our revenue back into R&D. In 2017, the D100 3D printer was launched in China. Quickly it become one of the most popular high-end DLP 3D printer in local Jewelry market.
In 2018,
Dazzle focused on dental and jewelry by launching the Dazz 3D L120 LCD 3D printers , which have been sold to over 80 countries.
We have
established 2 producing lines, expand production area to 2000 m², certificated by CE,FCC,RoHS,PSE and CSA .
Over the
passed 8 years, we released 5 models of 3D printer and over 45 types of photosensitive resins for different applications. Most of our resins and 3D printers have been widely used in industries requiring high accuracy , such as dental and Jewelry.
We bring
passion, reliability and innovation with the 3D Printers and resins we made. We believe 3D printing technology will change the world.
