Quick Details
-
Brand Name:
-
GALOCE
-
Theory:
-
load cell
-
Output:
-
mv/v, Analog Sensor
-
Description:
-
Rice Cooker Micro Load Cell Weight Sensor 3 kg
-
Product name:
-
GML623A Auto Rice Cooker Micro Load Cell Weight Sensor 3 kg
-
Excitation voltage (V):
-
5-10(DC)
-
Capacity:
-
3kg
-
Accuracy:
-
C2/ C3
-
Dimension:
-
26*26*1mm
-
Comprehensive error (%F.S):
-
±0.15
-
Ultimate overload (%F.S):
-
200
-
Safe overload (%F.S):
-
150
Quick Details
-
Usage:
-
kitchen scale, Pressure Sensor
-
Model Number:
-
GML623A
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GALOCE
-
Theory:
-
load cell
-
Output:
-
mv/v, Analog Sensor
-
Description:
-
Rice Cooker Micro Load Cell Weight Sensor 3 kg
-
Product name:
-
GML623A Auto Rice Cooker Micro Load Cell Weight Sensor 3 kg
-
Excitation voltage (V):
-
5-10(DC)
-
Capacity:
-
3kg
-
Accuracy:
-
C2/ C3
-
Dimension:
-
26*26*1mm
-
Comprehensive error (%F.S):
-
±0.15
-
Ultimate overload (%F.S):
-
200
-
Safe overload (%F.S):
-
150
GML623A Auto Rice Cooker Micro Load Cell Weight Sensor 3 kg
Features:
1. Made of manganese steel
2. S uit able for electronic balances, kitchen scales and other small weighing devices.
|
Specification |
|
|
Range (KG ): 3 |
Temp. effect on zero (%F.S/10 ℃ ): ±0. 1 |
|
Comprehensive error (%F.S): ±0. 15 |
N onlinearity error ( %F.S ): ±0. 1 |
|
Rated output (m V / V ): 1 .0±0. 15 |
R epeatability error ( %F.S ): ±0. 05 |
|
Creep (%F.S/ 3 min): ±0. 15 |
H ysteresis error ( %F.S ): ±0. 05 |
|
Zero balance (%F.S): ± 0 . 5 |
Operation temp. range ( ℃ ): - 1 0 ~ + 4 0 |
|
Input resistance (Ω): 500 ± 10 |
Excitation voltage (V): 5- 1 0 (DC) |
|
Output resistance (Ω): 500 ± 10 |
Ultimate overload (%F.S): 150 |
|
Insulation resistance (MΩ): ≥ 2 000 |
Dimension (mm): 26×26×1 |
|
Temp. effect on span (%F.S/10 ℃ ): ±0. 1 |
Position error ( %F.S ): 0.15 |

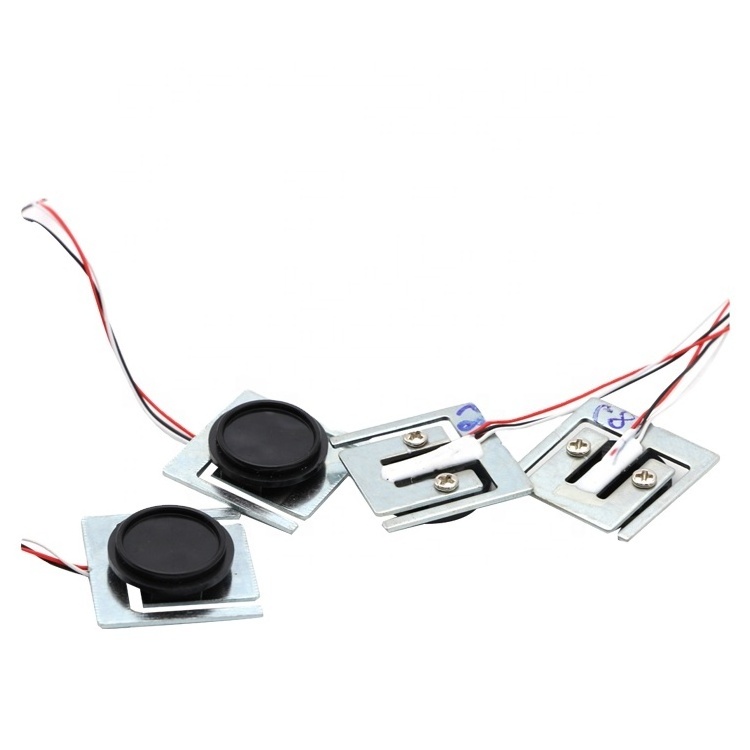

Product show:
Dimension:
Application:
