Quick Details
-
Productivity:
-
8M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luheng
-
Weight:
-
600kg
-
Dimension(L*W*H):
-
1400*1320*1480MM
-
Warranty:
-
1 Year
-
Model:
-
LH15-05-22
-
Maximum theoretical working pressure:
-
5.3Mpa
-
Theoretical displacement:
-
15m3/h
-
Maximum horizontal delivery distance:
-
200m
-
Maximum vertical delivery distance:
-
80m
-
Maximum grain size:
-
≤20mm
-
Cylinder diameter and stroke:
-
140*800mm
-
Delivery hose diameter:
-
80, 50mm
-
Net weight:
-
1580kg
-
Dimension (L*W*H):
-
3400*1320*1480mm
-
Certification:
-
ISO9001
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
30M
-
Max. horizontal conveying distance:
-
50M
-
Productivity:
-
8M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luheng
-
Weight:
-
600kg
-
Dimension(L*W*H):
-
1400*1320*1480MM
-
Warranty:
-
1 Year
-
Model:
-
LH15-05-22
-
Maximum theoretical working pressure:
-
5.3Mpa
-
Theoretical displacement:
-
15m3/h
-
Maximum horizontal delivery distance:
-
200m
-
Maximum vertical delivery distance:
-
80m
-
Maximum grain size:
-
≤20mm
-
Cylinder diameter and stroke:
-
140*800mm
-
Delivery hose diameter:
-
80, 50mm
-
Net weight:
-
1580kg
-
Dimension (L*W*H):
-
3400*1320*1480mm
-
Certification:
-
ISO9001

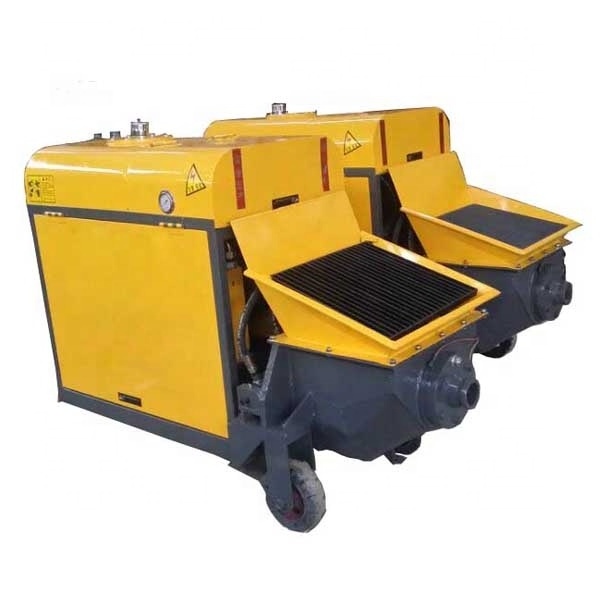

The HengwangTrailer Pumps are powerful, reliable, durable and flexible. They provide exceptional convenience to meet the
requirements of the most demanding of jobs. Hengwang's unique technology combines high output and high pressure with the same setup. The Trailer Pumps make quick work of tough mixes for a variety of applications, including high rise buildings, long
distance concrete pumping, tunnel construction, sludge pumping and other specialty jobs. Outstanding features of the pumps include
heavy duty tandem axles, high pressure S- Valve and rugged delivery cylinders. They are just what you need to deliver high
performance and high pressure.
Features of shotcrete Pump
* Ideal for pumping long distances and high altitudes, tunnels, mines, and other civil constructions.
* Convenient controls for smooth operations
* Equipped with free flow hydraulics for powerful performance across multiple applications
* Powerful performance over a long life span
* Reinforced frames and hoppers to withstand pressures of challenging sitesConvenient controls
for smooth operations
|
Specification for concrete pump |
|||||
|
Model |
Conveying height |
Conveying distance |
Power |
Max. aggregate size |
Power type |
|
HW1-15 |
15M |
30M |
15KW |
1.5cm |
Electric/Diesel |
|
HW2-15 |
15M |
30M |
15KW |
2cm |
Electric/Diesel |
|
HW3-22 |
20M |
50M |
22KW |
3cm |
Electric/Diesel |
|
HW3-30 |
30M |
80M |
30KW |
3cm |
Electric/Diesel |
|
HW3-37 |
50M |
120M |
37KW |
3cm |
Electric/Diesel |
|
HW4-45 |
80M |
150M |
45KW |
4cm |
Electric/Diesel |
|
HW4-55 |
120M |
200M |
55KW |
4cm |
Electric/Diesel |
|
HW3-38 |
30M |
80M |
38HP |
2cm |
Electric/Diesel |
|
HW3-48 |
50M |
120M |
48HP |
3cm |
Electric/Diesel |
|
HW4-60 |
80M |
150M |
60HP |
4cm |
Electric/Diesel |
|
HW4-74 |
120M |
200M |
74HP |
4cm |
Electric/Diesel |
This trailer pump is ideal for long distance pumping in high rises, tunnels, mines and other civil constructions.
For big type concrete pump we will load it in the 20'FCL and send it to you.
1 YEAR WARRANTY , If any parts break down within warranty we will send you free part !!!
Although out of the WARRANTY, we can offer you the part in cost price !!!
We are a supplier with good credit on Alibaba :
- No COMPLAINT and VIOLATION.
- No CUMULATIVE PENALTY.
- No SERIOUS INFRINGEMENT.
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of rock drill machines and concrete construction machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
