Truck Trailer Aluminum Wheel wheels 22.5 used semi truck wheels 24.5

Truck Trailer Aluminum Wheel 22.5 Information:

WONDEE AUTOPARTS Wheel Rim Factory can supply more than 100 sizes auto wheels.

1.Tube wheel sizes are from 5.5-15 to 8.5-24.

2.Tubeless wheel sizes are from 6.0x17.5 to 11.75 x 22.5.

3.The demountable wheel rim 8.25 x 22.5 are available.

4.Our yearly production is 3,000,000 pieces for different sizes.

Aluminum Wheel 22.5 Dimension:

Size(inch)	No Studs	Stud Dia	PCD	CBD	OFFSET		Weight(kg)	Max Load(KG)
22.5*8.25	10	26.75	285.75	220	144.5/168.5		23.8	3550
22.5*8.25	10	32.5	335	281.2	144.5/168.5		21.8	3550
22.5*8.25	10	26.75	335	281.2	144.5/168.5		22.16	3550
22.5*8.25	10	32.5R22	285.75	221	144.5/168.5		23.43	3550
22.5*8.25	10	26	335	281.2	144.5/168.5		22.5	3550
22.5*8.25	10	26	285.75	220	144.5/168.5		24	3550
22.5*8.25	10	26	285.75	221	144.5/168.5		24	3550
17.5*6.75	6	26.75	245	202	120 / 141		13.88	2500
17.5*6.75	6	26	245	202	120 / 141		13.94	2500
17.5*6.75	6	26	225	176	120 / 141		14.38	2500
22.5*7.5	10	32.5	335	281.2	138 / 162		22.5	3550
22.5*7.5	10	26.75	285.75	220.1	138 / 160		23	3550
22.5*7.5	10	26	335	281.2	138 / 160		22.42	3550
22.5*9.00	10	26	335	281.2	152 / 177		24.56	4125
22.5*9.00	10	26.75	335	281.2	152 / 177		24.3	4125
22.5*9.00	10	32.5	335	281.2	152 / 177		24	4125
22.5*9.00	10	32.5R22	335	281.2	152 / 177		23.4	4125
22.5*9.00	10	26	285.75	221	152 / 177		25	4125
22.5*9.00	10	26.75	285.75	220	152 / 177		25	4125
22.5*11.75	10	26.75	335	281.2	120		25.41	4500
22.5*11.75	10	26	335	281.2	120		25.41	4500
22.5*11.75	10	26	285.75	220	120		26	4500

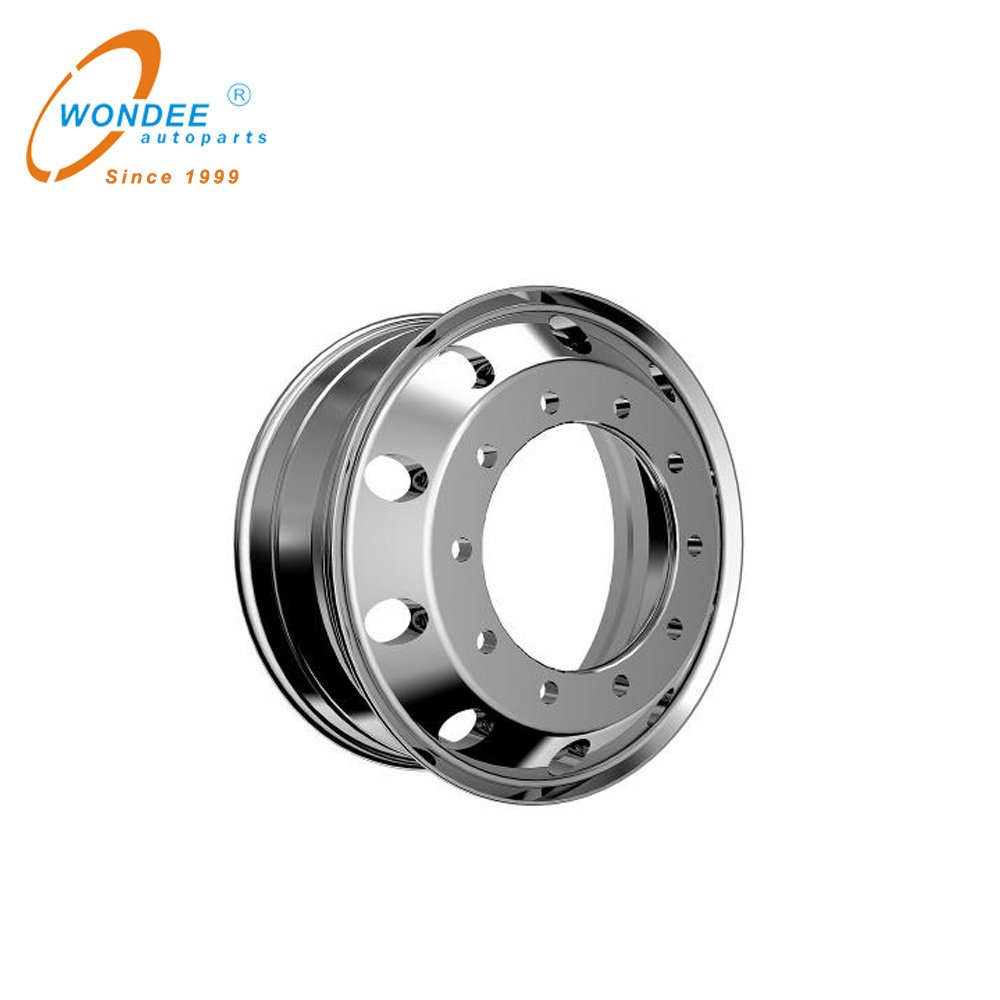

Truck Trailer Aluminum Wheel Detail Photos:

About Us :

WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying

a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From

2009,WONDEE has expanded the business to special steel , agricultural machinery parts &

wheel rim production line.

In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are

certified to the ISO/TS16949 international system.
