Quick Details
-
Service:
-
One-stop service
-
Package:
-
Original Package
-
Quality:
-
new and original
-
Lead time:
-
In stock
-
Warrenty:
-
1 year
-
Delivery Detail:
-
3-5 working days after payment
-
Points:
-
32+32
-
Type:
-
DC in+out (sink)
-
Width:
-
31mm
-
Rated voltage:
-
24 VDC
Quick Details
-
Brand Name:
-
Omron
-
Place of Origin:
-
china/japan
-
Model Number:
-
CJ1W-MD263
-
Service:
-
One-stop service
-
Package:
-
Original Package
-
Quality:
-
new and original
-
Lead time:
-
In stock
-
Warrenty:
-
1 year
-
Delivery Detail:
-
3-5 working days after payment
-
Points:
-
32+32
-
Type:
-
DC in+out (sink)
-
Width:
-
31mm
-
Rated voltage:
-
24 VDC

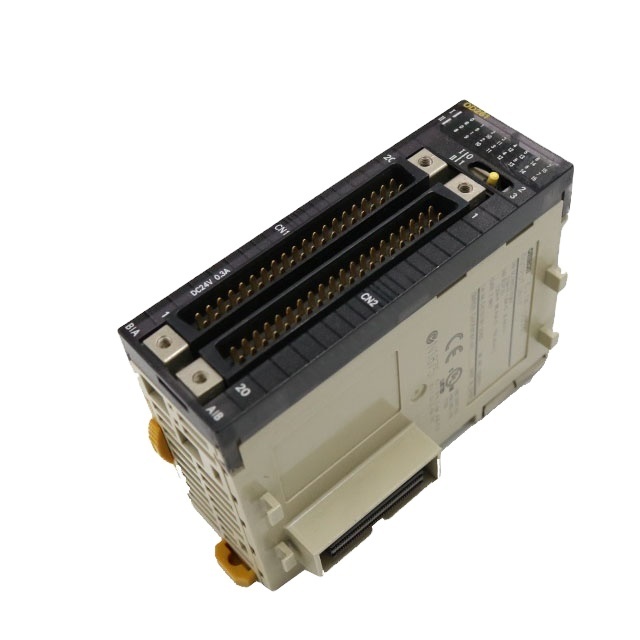

Omron CJ1W-MD263 (new original) 100% new with one year Warranty Price List
8 to 64 points per unit - input, output or mixed
Digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt CJ1 to your needs.
CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin 'flatcable'-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.
|
Points |
Type |
Rated voltage |
Rated current |
Width |
Remarks |
Connection type |
Order code |
|
8 |
DC output (sink) |
12 to 24 VDC |
2 A |
31 mm |
- |
M3 |
CJ1W-OD201 |
|
8 |
DC output (source) |
24 VDC |
2 A |
31 mm |
With short-circuit protection, alarm |
M3 |
CJ1W-OD202 |
|
8 |
DC output (source) |
24 VDC |
0.5 A |
31 mm |
With short-circuit protection, alarm |
M3 |
CJ1W-OD204 |
|
16 |
DC output (sink) |
12 to 24 VDC |
0.5 A |
31 mm |
- |
M3
|
CJ1W-OD211
|
|
16 |
DC output (source) |
24 VDC |
0.5 A |
31 mm |
With short-circuit protection, alarm |
M3
|
CJ1W-OD212
|
|
16 |
DC output (sink) |
24 VDC |
0.5 A |
31 mm |
Fast-response (15 µs ON, 80 µs OFF) |
M3 |
CJ1W-OD213 |
|
32 |
DC output (sink) |
12 to 24 VDC |
0.5 A |
20 mm |
- |
1 × Fujitsu |
CJ1W-OD231 |
|
32 |
DC output (source) |
24 VDC |
0.3 A |
20 mm |
With short-circuit protection, alarm |
1 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-OD232 |
|
32 |
DC output (sink) |
24 VDC |
0.5 A |
20 mm |
Fast-response (15 µs ON, 80 µs OFF) |
1 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-OD234 |
|
64 |
DC output (sink) |
12 to 24 VDC |
0.3 A |
31 mm |
- |
2 × Fujitsu |
CJ1W-OD261 |
|
64 |
DC output (source) |
24 VDC |
0.3 A |
31 mm |
- |
2 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-OD262 |
|
16+16 |
DC in+out (source) |
24 VDC |
0.5 A |
31 mm |
- |
2 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(20 pt)
|
CJ1W-MD232 |
|
32+32 |
DC in+out (sink) |
24 VDC |
0.3 A |
31 mm |
- |
2 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-MD263 |
|
32+32 |
DC in+out (TLL) |
5 VDC |
35 mA |
31 mm |
- |
2 × MIL
1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-MD563 |
