Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
5995*2300*2720
-
Cargo Tank Dimension:
-
4000*2100*600
-
Product name:
-
Dumper Truck
-
Year:
-
Brand new
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
5-10T
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
5995*2300*2720
-
Cargo Tank Dimension:
-
4000*2100*600
-
Product name:
-
Dumper Truck
-
Year:
-
Brand new
Product Overview

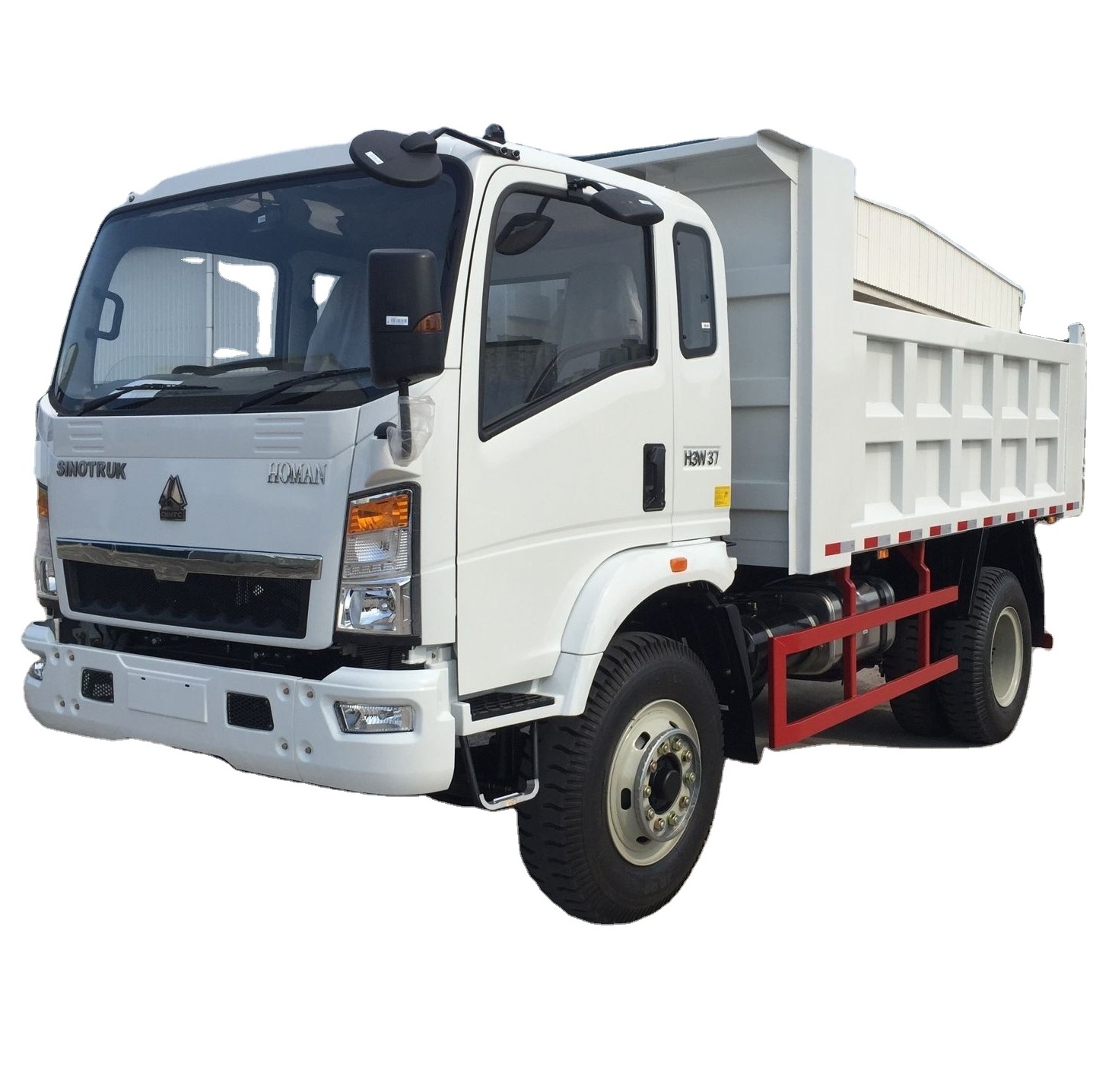

HOWO 4X4 4x2 small light duty 10tons/15tons tipper dump truck
The frame, tires, axle, and leaf spring of this model are all weighted, and can be selected as 4X2 or 4X4, which can meet a load capacity of about 10-20 tons. The size of the cargo box can be selected, including 4 meters, 5 meters, 6 meters, etc.
FEATURES AT A GLANCE
Front elevation
Left elevation
Back elevation
|
Truck Brand
|
|
SINOTRUK-HOWO
|
|
|
Driving wheel
|
|
4x2
|
|
|
Drving type
|
|
left /right Hand Driving
|
|
|
Chassis Mode
|
|
ZZ1047D3315C145
|
|
|
Dimension(Lx Wx H)(unloaded)(mm)
|
|
5760*2350*2550
|
|
|
body dimension(LxWxH)mm
|
|
3600*2100*600
|
|
|
Approaching angle/Departure angle()
|
|
20/18
|
|
|
Wheel base (mm)
|
|
3300
|
|
|
Leaf spring
|
|
11/9+7H
|
|
|
Max speed(km/h)
|
|
90
|
|
|
Curb weight(kg)
|
|
4000
|
|
|
Loading Weight(kg)
|
|
10000-15000
|
|
|
Engine
|
Model
|
4100,4- strake direct injection diesel engine, 4 cylinders in line with
water cooling
|
|
|
|
Fuel type
|
Diesel
|
|
|
|
Horse Power
max(kwirpm)
|
95HP
|
|
|
|
Displacement(L)
|
3.3
|
|
|
|
Emission
|
EUROⅡ
|
|
|
Fuel tanker capacity (L)
|
|
120L
|
|
|
Transmission
|
Model
|
WLY10H446，fonwards 10and 2reverse
|
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
|
|
Parking brake
|
spring enengy, compressed air operating on rear wheels
|
|
|
Front axle
|
2.8T
|
|
|
|
Rear axle
|
6.5T
|
|
|
|
Color
|
Optiona
|
|
|
|
Tyre
|
825R16 Steel,6+1 Spare
|
|
|
|
Cab
|
1760 Cabin with AC.
|
|
|
|
Hydraulic cylinder
|
110 Double Top
|
|
|
