Quick Details
-
Thermal Conductivity:
-
0.085(400C)/0.132(800C)/0.180(1000C)
-
Thickness:
-
10-50mm
-
Width:
-
300/600/1000mm
-
Length:
-
600/900/1000/1200mm
-
Working Temperature:
-
1260C
-
Shrinkage (1800℉, 3h):
-
3%(24h)
-
Place of Origin:
-
Henan, China
-
Model Number:
-
1350
-
Brand Name:
-
GOLDENWOOL
-
Product name:
-
lowes fire proof kaowool silica board
-
Density:
-
280/300/320/350g/cm3
-
Raw material:
-
Ceramic Fiber Bulk
-
Certification:
-
ISO9001:2000
-
Type:
-
Thermal Insulation Material
-
Character 1:
-
lowes fire proof insulation
-
keywords:
-
lowes fire proof insulation ceramic board
-
name:
-
refractory ceramic fiber plate
-
Size:
-
600x300/900x600/1200x1000mm
Quick Details
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.5MPa
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.085(400C)/0.132(800C)/0.180(1000C)
-
Thickness:
-
10-50mm
-
Width:
-
300/600/1000mm
-
Length:
-
600/900/1000/1200mm
-
Working Temperature:
-
1260C
-
Shrinkage (1800℉, 3h):
-
3%(24h)
-
Place of Origin:
-
Henan, China
-
Model Number:
-
1350
-
Brand Name:
-
GOLDENWOOL
-
Product name:
-
lowes fire proof kaowool silica board
-
Density:
-
280/300/320/350g/cm3
-
Raw material:
-
Ceramic Fiber Bulk
-
Certification:
-
ISO9001:2000
-
Type:
-
Thermal Insulation Material
-
Character 1:
-
lowes fire proof insulation
-
keywords:
-
lowes fire proof insulation ceramic board
-
name:
-
refractory ceramic fiber plate
-
Size:
-
600x300/900x600/1200x1000mm

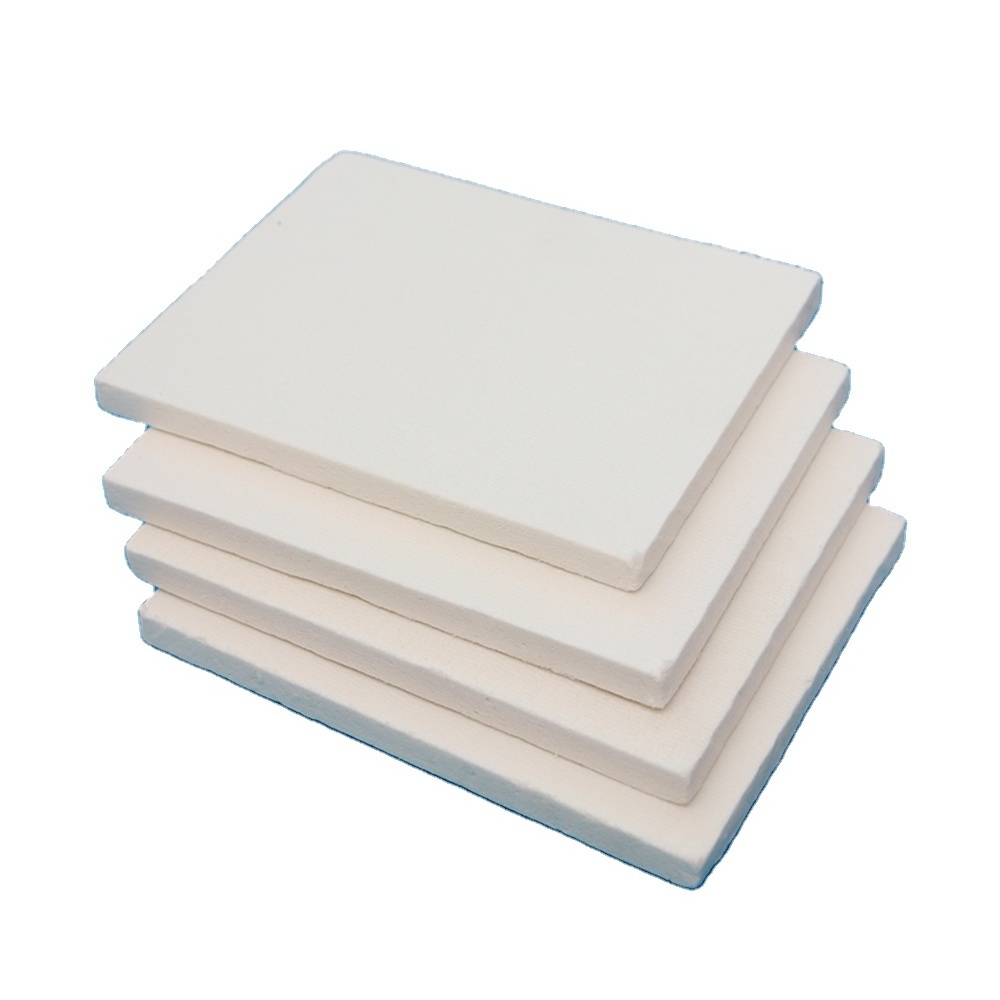

Lowes Fire Rroof Kaowool Silica Insulation Mullite Ceramic Fiber Wool Board with msds Refractory
|
Product Introduction of Lowes Fire Proof Kaowool Silica Board
|
Ceramic Fiber Board is made through automation control and continuous production process, with a host of features such as precise size, good flatness, high compressive strength, lightweight, excellent thermal shock resistance and anti-stripping, which can be widely used for insulation in the linings around and at the bottom of kilns, as well as ceramic kilns fire position, craft glass mold and other positions.
|
Product Line of Lowes Fire Proof Kaowool Silica Board
|
|
Character of Lowes Fire Proof Kaowool Silica Board
|
· Low heat storage and low thermal conductivity
· High compression strength
· Non –fragile materials and good toughness
· Accurate dimension and good planeness
· Structure homogeneity and easy machining
· Easy to install
· Continual production, even fiber with stable property
· Excellent heat stability and thermal shock resistance
|
Data of Lowes Fire Proof Kaowool Silica Board
|
| COM Board | ST Board | HP Board | HA Board | HZ Board | |
| Classification Temperature(℃) | 1100 | 1260 | 1260 | 1360 | 1430 |
| Working Temperature(℃) | 1000 | 1050 | 1100 | 1250 | 1350 |
| Color | White | Pure White | Pure White | Pure White | Pure White |
| Density(kg/m3) | 260-320 | 280-600 | 280-600 | 280-600 | 280-600 |
| Shrinkage (1800℉, 3h) | -4 (1000℃) | -3 (1000℃) | -3 (1100℃) | -3 (1250℃) | -3 (1350℃) |
| Thermal Conductivity |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
0.085(400℃) 0.132(800℃) 0.180(1000℃) |
| Chemical Composition | AL2O3+SIO2 | AL2O3+SIO2 | AL2O3+SIO2 | AL2O3+SIO2 | AL2O3+SIO2 |
| Ultimate Strength (≥ MPa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Size(mm) |
600*400*10-50, 1000*500*10-50 Other is made according to customers' requirement. |
||||
|
Application of Lowes Fire Proof Kaowool Silica Board
|
♦ The wall liner and back lining materials of high-temperature reaction, reheating equipment and various industrial furnace .
♦ Insulating and fire proof plate of furnace door and roof or house chimney and fireplace.
♦ Lows fire proof and insulation for chimney cake ovens, pizza oven.
♦ boilers and heater combustion chamber
| Shipping and Packing of Lowes Fire Proof Kaowool Silica Board |
1. Our packaging is as per customer's request.
2. Normal goods delivered by sea transport.
3. Sample shipping by express.
|
Certification of Lowes Fire Proof Kaowool Silica Board
|
Quality is us promise to you. Provide you with quality products, that is our responsibility.
