Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
GA-11048MHG
-
Input Voltage:
-
90-280VAC±3V(Normal Mode)170-280VAC±3V (UPS Mode)
-
Output Voltage:
-
220/230/240VAC±5%
-
Output Current:
-
Dependent on connected load and conditions
-
Output Frequency:
-
50/60Hz±0.1%
-
Size:
-
570.8*500*148.2mm
-
Certificate:
-
CE,ISO,RHOS
-
Warranty:
-
1year
-
Weight:
-
19.25kg
-
Inverter type:
-
Off-grid high frequency solar Inverter
-
Maximum PV Array Power:
-
2*5500W
-
Maximum PV Voltage:
-
500VDC
-
PV voltage range:
-
90~500VDC
-
Controller type:
-
mppt
-
Maximum solar charging current:
-
150A
-
Maximum AC Charge Current:
-
60A
-
Battery type:
-
Lead Acid/GEL/AGM/LiFePO4
-
Waveform:
-
Pure Sine Wave
-
Operating Temperature Range:
-
-15℃~60℃
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
>98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techfine
-
Model Number:
-
GA-11048MHG
-
Input Voltage:
-
90-280VAC±3V(Normal Mode)170-280VAC±3V (UPS Mode)
-
Output Voltage:
-
220/230/240VAC±5%
-
Output Current:
-
Dependent on connected load and conditions
-
Output Frequency:
-
50/60Hz±0.1%
-
Size:
-
570.8*500*148.2mm
-
Certificate:
-
CE,ISO,RHOS
-
Warranty:
-
1year
-
Weight:
-
19.25kg
-
Inverter type:
-
Off-grid high frequency solar Inverter
-
Maximum PV Array Power:
-
2*5500W
-
Maximum PV Voltage:
-
500VDC
-
PV voltage range:
-
90~500VDC
-
Controller type:
-
mppt
-
Maximum solar charging current:
-
150A
-
Maximum AC Charge Current:
-
60A
-
Battery type:
-
Lead Acid/GEL/AGM/LiFePO4
-
Waveform:
-
Pure Sine Wave
-
Operating Temperature Range:
-
-15℃~60℃

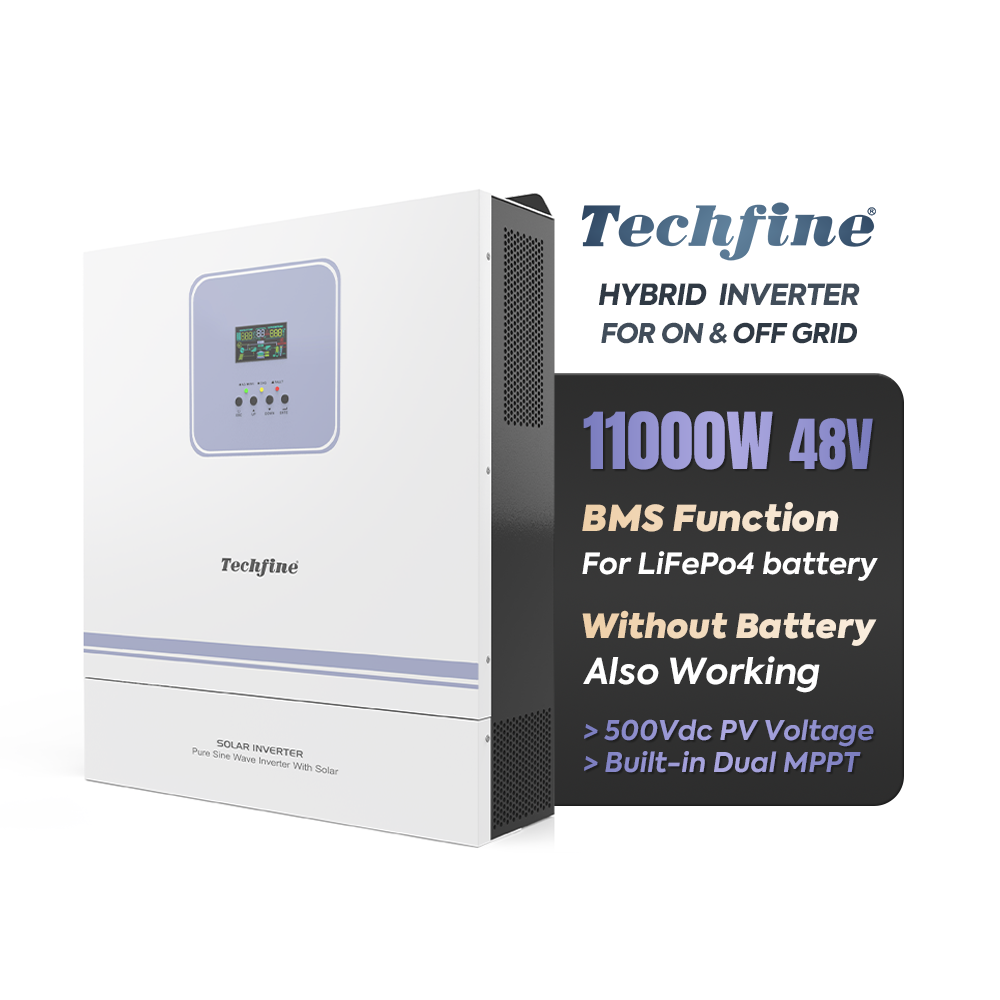

Source Factory
8000W 11000W
48VDC 110VAC 220VAC 230VAC
High Frequency Off Grid Solar Hybrid Inverter
Strictly comply with ISO quality management system
products have passed [UL,CE,IEC, ROHS, SONCAP,SASO,PVOC] and other CERTIFICATIONS.
The GA series
multi-function inverter/charger is a compact device that combines the functions of an inverter, MPPT solar charger,and battery charger to provide uninterrupted power support.
This inverter supports different types of batteries such as lead-acid and lithium-ion.
Build-in BMS Function
And also Support Working without Battery.
With its user-friendly LCD display, users can easily configure settings such as battery charging current, AC/solar chargerpriority, and acceptable input voltage for various applications.
According to your needs,
please feel free to
contact us
and know about other possible system architectures.
This inverter can be used to power most places, such as islands, showrooms, engineering projects.
Product Parameters
|
Model
|
GA8048JMH
|
GA11048JMH
|
|
|
Nominal Voltage
|
220/230/240VAC
|
|
|
|
Voltage Range
|
90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
|
|
|
|
Frequency
|
50-60Hz Auto sensing
|
|
|
|
Rated Output Power
|
8000W
|
11000W
|
|
|
Output Voltage(Ac)
|
220/230]240VAC±5%
|
|
|
|
Output Frequency
|
50/60Hz±0.1%
|
|
|
|
Waveform
|
Pure sine wave
|
|
|
|
Transfer time(AC to DC)
|
10ms for Computer Equipment, 20ms for Household Equipment
|
|
|
|
Peak Power
|
16000VA
|
22000VA
|
|
|
Overload Capacity(Battery Mode)
|
21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load
|
|
|
|
Peak Efficiency(Battery Model)
|
98%
|
|
|
|
Norminal Voltage
|
48VDC
|
|
|
|
constant charging Voltage
|
56.4VDC
|
|
|
|
Float Charging Voltage
|
54VDC
|
|
|
|
Pv Charging Way
|
MPPT
|
|
|
|
Max PV Input Power
|
2*4000W
|
2*5500W
|
|
|
MPPT Controller Voltage
|
90-500VDC
|
|
|
|
MAX PV Input Voltage
|
500VDC
|
500VDC
|
|
|
MAX Pv Charge Current
|
120A
|
150A
|
|
|
MAX AC Charge Current
|
60A
|
60A
|
|
|
MAX Charge Current
|
120A
|
150A
|
|
|
LCD Display
|
AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
|
|
|
|
RS232
|
5PIN/Pitch2.0mm
|
|
|
|
Expansion Slot Communication Interface
|
2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc
|
|
|
|
Parallel Interface
|
Yes
|
|
|
|
Operating Temperature
|
0-40°C
|
|
|
|
Humidity
|
20%~95%(Non-condensing)
|
|
|
|
Storage Temperature
|
-15~60°C
|
|
|
|
Altitude
|
<1000m
|
|
|
|
Noise(dB)
|
≤50db
|
|
|
Product Overview
Designed to be slimmer in size compared to other products with the same power output.
This makes it incredibly easy to install and transport, saving you time and effort. With its compact design
you can easily find the perfect spot for it in your home or business.
With Intelligent Power Supply Mode, the inverter intelligently adjusts its output to match the load demand, maximizing energy utilization and minimizing waste.
The PF1.0 Energy Conservation feature ensures that power factor is optimized,
reducing energy consumption and saving you money on your electricity bills.
Experience the benefits of advanced solar technology with our solar power inverter.
Remind:
To ensure the appropriate matching of the battery capacity for the system, it is crucial to consider the specific usage requirements of the load and application scenarios. Failing to do so can result in either insufficient battery capacity or excessive waste of power generation.
For more information, please consult the manual recommendation or
CONTACT
our online
customer service.
Parallel Capability up to 9 units
If you opt for the Parallel function model, the parallel kit is already included and there is no need for you to purchase and install it separately.
You can enjoy the WIFI function
of this Hybrid Inverter by purchasing the WIFI module separately and connecting it to the APP. This will allow you to monitor the inverter's performance.
Our Factory
Industry-leading One-stop Customized Services
Guangdong Techfine Electronic Co., Ltd.
Professional manufacturer for solar & UPS system products in China.
Offer stable quality products with reasonable price and nice sales/after-sales service.
You can get suitable products with
long time service
and
market sales support
from us.
Of course, we also support
OEM/ODM
cooperation.
Techfine
will be your reliable partner!
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pc
for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
