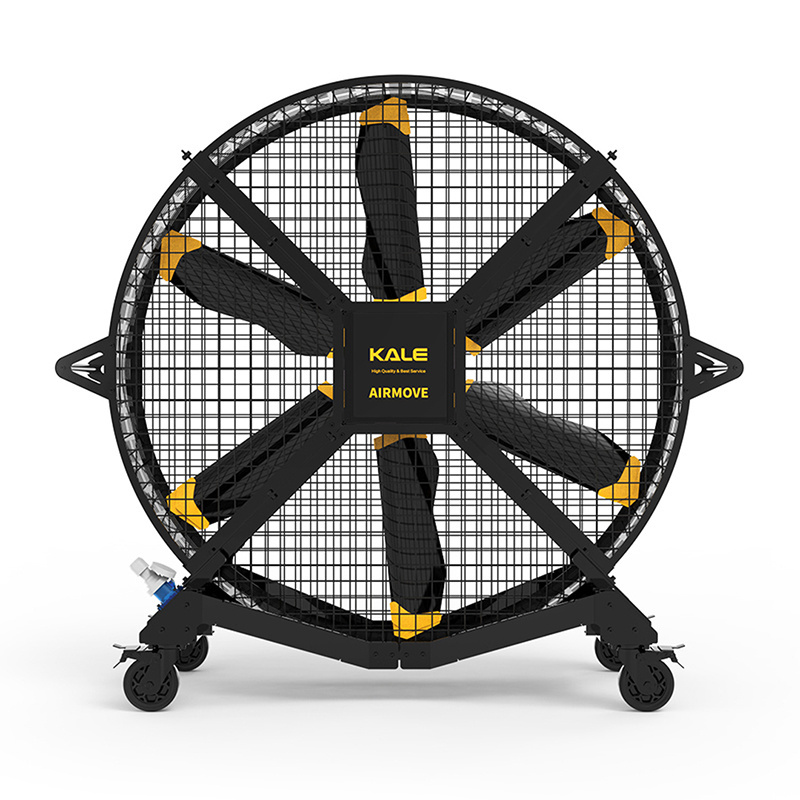

Airmove series is the latest hand-push mobile fan with large air volume developed by Kale; the total height of the fan is 2m, and the four casters can move freely indoors and outdoors. The fan blades are driven by PMSM permanent magnet synchronous motors with
large output. Airmove can bring the cooling effect equivalent to more than 20 sets of small fans.The fan is light and durable as a whole, and can be applied to most places with more complicated environments.
Ultra-long air supply distance, the effective distance of wind speed exceeds 24m, which can cover most of the length of the
basketball court.
Designed with 4 casters, it can be moved freely to any place where wind is needed indoors or outdoors.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KALE FANS
-
Voltage:
-
220V/380V
-
Warranty:
-
3 Years
-
Fan Diameter:
-
2.0M
-
Blade:
-
6 Blades large industrial standing fan
-
Max Speed:
-
220RPM
-
Color:
-
Yellow and Black
-
Function:
-
Ventilate & Cool
-
Fan Weight:
-
176KG
-
Size:
-
2190X2050X748mm
-
Air volume:
-
1208m³/min
-
Application:
-
Warehouse/Fitness Center/Gym
-
Keywords:
-
Ventilation HVLS Stand Fan
Quick Details
-
Mounting:
-
FREE STANDING
-
Power:
-
550W
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KALE FANS
-
Voltage:
-
220V/380V
-
Warranty:
-
3 Years
-
Fan Diameter:
-
2.0M
-
Blade:
-
6 Blades large industrial standing fan
-
Max Speed:
-
220RPM
-
Color:
-
Yellow and Black
-
Function:
-
Ventilate & Cool
-
Fan Weight:
-
176KG
-
Size:
-
2190X2050X748mm
-
Air volume:
-
1208m³/min
-
Application:
-
Warehouse/Fitness Center/Gym
-
Keywords:
-
Ventilation HVLS Stand Fan
Product Description
large industrial standing fan
Specification
|
Model
|
Air volume
|
Max speed
|
Power
|
Full load current
|
|
SHVLS-Y6BAA20
|
1208m³/min
|
320RPM
|
0.55KW
|
2.7Amps/220V
|
|
SHVLS-Y6BAA16
|
723m³/min
|
360RPM
|
0.36KW
|
2.0Amps/220V
|
|
Noise level
|
<43.0dB（A）
|
Protection level
|
IP55
|
Waterproof Fan
|
Brief Introduction of AIRMOVE Series Fan
1. Large air volume, long distance air feel, up to 36m
2. Portable, easy to move with 4 wheels
3. Low power with only 400W
4. Waterproof, low noise with BLDC motor
2. Portable, easy to move with 4 wheels
3. Low power with only 400W
4. Waterproof, low noise with BLDC motor
Packing & Delivery
The hvls portable floor fans will be packed separately and all the parts will be packed in standard wooden boxes.For delivery, depending on the quantity of the order, less than 10 units, the delivery time is 3 days.
