Quick Details
-
TYPE:
-
WET BARREL TYPE 2 WAY FIRE HYDRANT
-
SIZE:
-
4 INCH
-
BODY MATERIAL:
-
CAST IRION
-
LANDING VALVE MATERIAL:
-
COPPER ALLOY
-
LANDING VALVE SIZE:
-
2 1/2 INCH
-
WORKING PRESSURE:
-
10 BRA
-
TESTING PRESSURE:
-
20 BAR
-
FINISHED:
-
RED EXPOXY PAINTED
-
INLET:
-
4 INCH FLANGE
-
WEIGHT:
-
34KG
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BAIAN
-
Model Number:
-
BS750
-
TYPE:
-
WET BARREL TYPE 2 WAY FIRE HYDRANT
-
SIZE:
-
4 INCH
-
BODY MATERIAL:
-
CAST IRION
-
LANDING VALVE MATERIAL:
-
COPPER ALLOY
-
LANDING VALVE SIZE:
-
2 1/2 INCH
-
WORKING PRESSURE:
-
10 BRA
-
TESTING PRESSURE:
-
20 BAR
-
FINISHED:
-
RED EXPOXY PAINTED
-
INLET:
-
4 INCH FLANGE
-
WEIGHT:
-
34KG

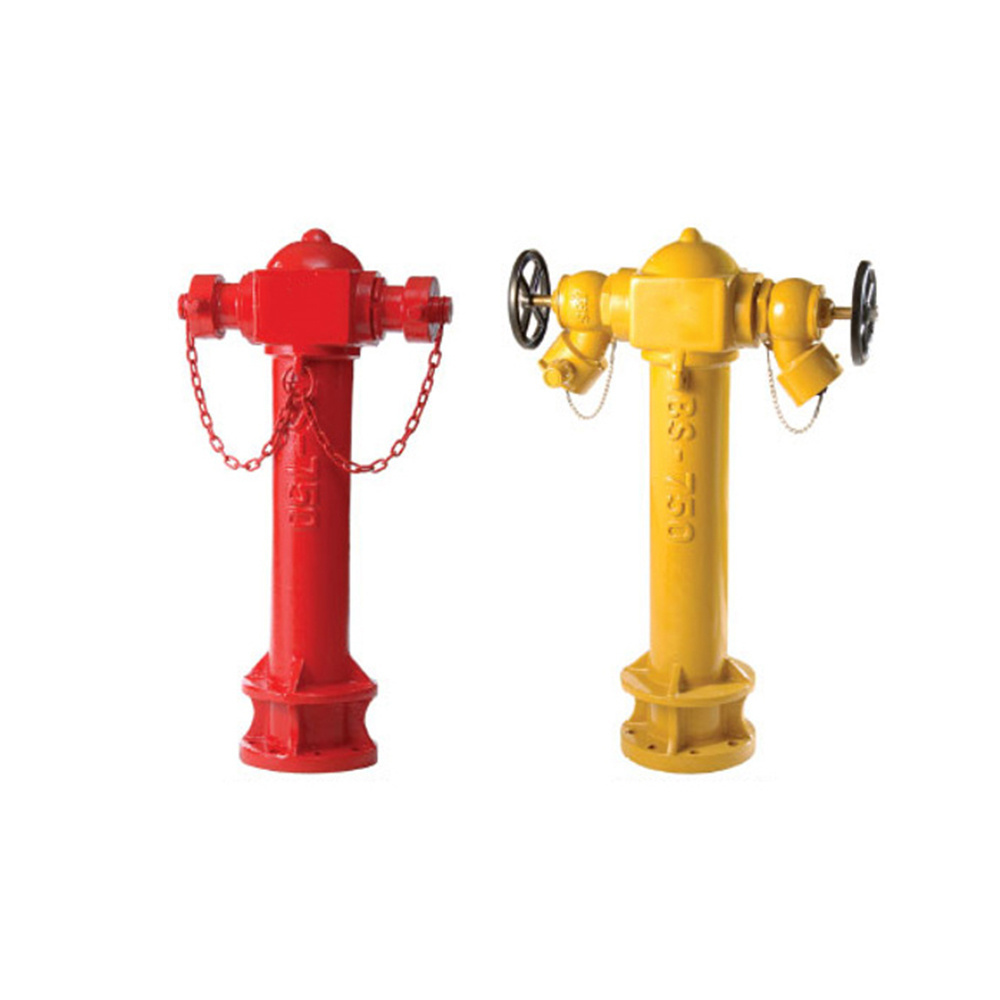

TWO WAY FIRE HYDRANT
DESCRIPTION&OPERATION
TECHNICAL SPECIFICATION
Features
• Fully maintainable.
• Ductile iron construction.
• 2½” London round thread outlet to BS 750.
• Universal drilled inlet flange BS Standard
• Low weight design.
TESTS
Hydraulic test to BS 750
Seat: 1.1 x PN. Body: 1.5 x
PN. Operating torque test.
|
TYPE
|
WET BARREL TYPE 2 WAY FIRE HYDRANT
|
|
SIZE
|
4 INCH
|
|
BODY MATERIAL
|
CAST IRON /MILD STEEL SEAMLESS PIPE
|
|
LANDING VALVE MATERIAL
|
COOPER ALLOY
|
|
LANDING VALVE SIZE
|
2 1/2 INCH
|
|
WORKING PRESSURE
|
10 BAR
|
|
TESTING PRESSURE
|
20 BAR
|
|
FINISHED
|
RED EXPOXY PAINTED /YELLOW COLOR
|
|
INLET
|
4 INCH FLANGED
|
|
OUTLET
|
2 NOS 2 1/2 INCH LANDING VALVE OBLIQUE TYPE WITH FEMALE INSTANTANEOUS COOECTION
|
|
COLOR
|
RED OR YELLOW
|
|
WEIGHT
|
34KG
|
|
NO.
|
NAME
|
MATERIAL
|
QTY
|
|
1
|
COVER
|
PLASTIC
|
2
|
|
2
|
OUTLET
|
BRASS
|
2
|
|
3
|
CHAIN
|
IRON
|
2
|
|
4
|
HYDRANT BODY
|
QT450
|
1
|
|
FLANGE SIZE
|
|
|
|
|
|
D
|
D1
|
n-d
|
|
LPSB
|
220
|
180
|
8-18
|
|
ANSI
|
229
|
190.5
|
8-19
|
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
BAIAN FIRE PROTECTION TECHNOLOGY.,LTD (BAFF FIRE
FIGHTING ) which is a fire fighting equipment export manufacturer .Our head office is in Singapore and have branch in China
welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire
fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and
others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other
country .
We have 34 years experience and advantages in this industry .It is able to quickly develop new design and new products according
to our customer’s specific requirement and pricing .
FIGHTING ) which is a fire fighting equipment export manufacturer .Our head office is in Singapore and have branch in China
welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire
fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and
others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other
country .
We have 34 years experience and advantages in this industry .It is able to quickly develop new design and new products according
to our customer’s specific requirement and pricing .
