Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Swift
-
Model Number:
-
F
-
Product name:
-
R series precision lock nut
-
Material:
-
42CrMo, 45# Steel, 40Cr
-
Size:
-
M12-M300
-
Thread precision:
-
ISO4H
-
Hardness:
-
HRC28-32
-
Run Out:
-
0.005mm
-
Surface treatment:
-
Phosphated
Quick Details
-
Finish:
-
Black Oxide
-
Measurement system:
-
Metric
-
Application:
-
Automotive Industry
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Swift
-
Model Number:
-
F
-
Product name:
-
R series precision lock nut
-
Material:
-
42CrMo, 45# Steel, 40Cr
-
Size:
-
M12-M300
-
Thread precision:
-
ISO4H
-
Hardness:
-
HRC28-32
-
Run Out:
-
0.005mm
-
Surface treatment:
-
Phosphated

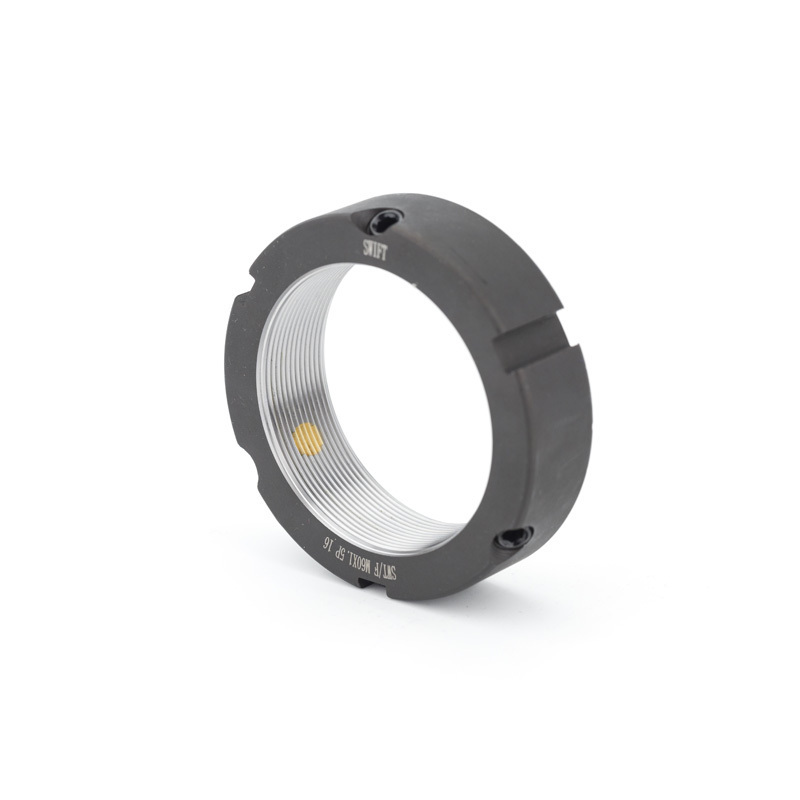

SWT/F lock nuts employ 30°, 3-point locking. Once the nut is tightened, the axial load is not relived o the thread and no deformation would occur. The equal spaced locking pins are used to adjust the deviation of the parts that are mounted onto the shaft. SWT/F nuts could ensure their precision even after multiple assembly and dis-assembly.
Material:42CrMo, 40Cr, #45 steel
Hardness: HRC28-32
Thread precision:ISO4H
Run out: 0.005mm
Delivery Time:
In stock: shipped within 3 working days
Need to be put into production: 20-25 days
