Quick Details
-
Size:
-
10-100CBM
-
Place of Origin:
-
Shandong, China
-
Usage:
-
LIQUID FUEL / WATER TRANSPORTATION
-
Logo:
-
By customer Needs
-
Condition:
-
New/Customize by needs (production time 15 days)
-
Axle Style:
-
13Tons
-
Suspension:
-
Mechanic/Rigid Optional
-
Color:
-
By customer needs
-
Tire:
-
12.00R20
-
Landing Gear:
-
Standard 28Ton
-
Braking System:
-
Dual Line Braking System
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
20-80Tons
-
Brand Name:
-
Eleph
-
Size:
-
10-100CBM
-
Place of Origin:
-
Shandong, China
-
Usage:
-
LIQUID FUEL / WATER TRANSPORTATION
-
Logo:
-
By customer Needs
-
Condition:
-
New/Customize by needs (production time 15 days)
-
Axle Style:
-
13Tons
-
Suspension:
-
Mechanic/Rigid Optional
-
Color:
-
By customer needs
-
Tire:
-
12.00R20
-
Landing Gear:
-
Standard 28Ton
-
Braking System:
-
Dual Line Braking System

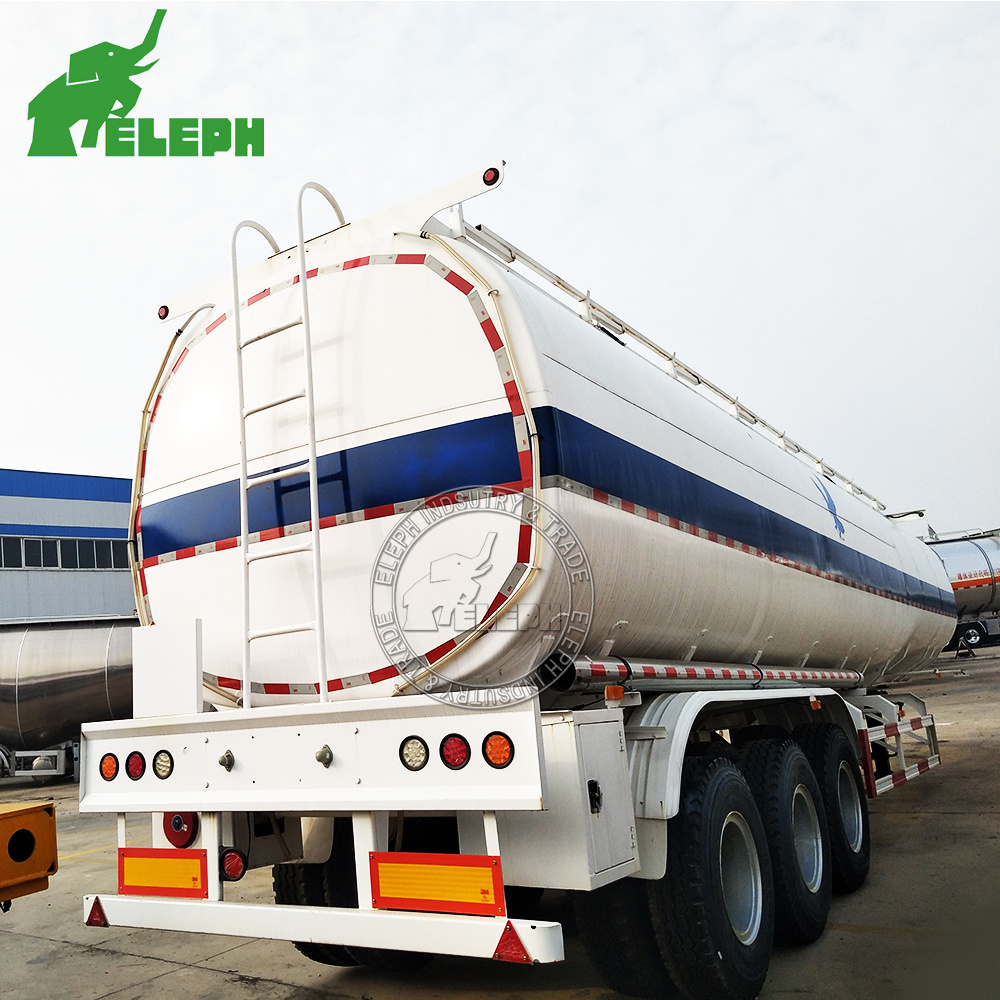

Liquid Fuel/Water Tank Truck Semi Trailer
|
Liquid Fuel / Water Tank Truck Semi Trailer |
|||||
|
Model |
ALP 9350 YGBGC |
||||
|
Dimension(Optional) |
Axle N o. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
10000-30000liters/10-30cbm |
2 |
40000 |
8 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
30000-60000liters/30-60cbm |
3 |
60000 |
12 |
||
|
Above 60000liters/60cbm |
4 |
75000 |
16 |
||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
||||
|
Wheel Base (mm) |
1310 |
||||
|
leaf-spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q 345 B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Landing gear |
28T loading capacity with 80T static lifting capacity. |
||||
|
Tanker body |
5mm , sealing end: 6mm |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four double and two single chamber |
||||
|
Electrical System |
24V, 7 core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Tool Box |
1 box of standard tools |
||||
|
Spare tire carrier |
2 sets |
||||
|
Color and Logo |
Depends on the buyer’s requirement. |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
|
Painting |
Three coats painting; Any color will be available |
||||
|
Manhole |
2pcs |
||||
|
Body Material |
Carbon Steel/ Stainless Steel/Aluminium |
||||
|
Ladders |
Steel with anti slipper walking way |
||||
|
Fire extinguisher |
2x 4kgs |
||||
|
handrail |
Steel, manual |
||||
|
Application |
For liquid transportation |
||||
