Quick Details
-
Filling Accuracy:
-
Semi Solid Filling Machine
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rarbon
-
Dimension(L*W*H):
-
1060*360*390mm
-
Weight:
-
45 KG
-
Item:
-
Filling Machine
-
Function:
-
quantitative volume filling
-
Hopper:
-
30L
-
Machine body:
-
stainless steel
-
Other device:
-
heating mixing
-
Filling volume:
-
adjustable
-
Cylinder:
-
Taiwan Airtac
-
Working principle:
-
driven by air compressor
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Glass, Metal, Plastic
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
Semi Solid Filling Machine
-
Voltage:
-
220V/50HZ
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Rarbon
-
Dimension(L*W*H):
-
1060*360*390mm
-
Weight:
-
45 KG
-
Item:
-
Filling Machine
-
Function:
-
quantitative volume filling
-
Hopper:
-
30L
-
Machine body:
-
stainless steel
-
Other device:
-
heating mixing
-
Filling volume:
-
adjustable
-
Cylinder:
-
Taiwan Airtac
-
Working principle:
-
driven by air compressor
Product Description
Introduction:

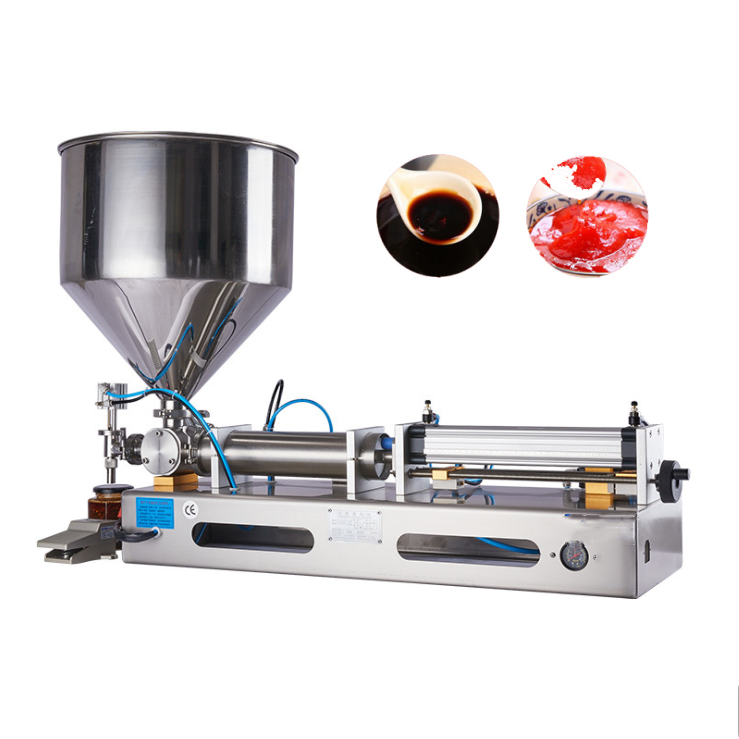

Horizontal single head paste filling machine is the ideal equipment for filling paste and liquid.
The machine is made of stainless steel, removable tool-free clean, simple and reasonable structure, The machine can be
foot-operated or auto mode control filling. It is widely used in pharmaceutical, chemicals for daily use, food, pesticides and
special industries.
Applications:
It is not only suitable for ketchup, detergent, honey and other paste, but also suitable for a variety of liquids, a wide range of uses.
Filling Principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.
Features:
1. This machine has two pneumatic filling ways, foot and automatic, and they can be switched randomly.
2. Parts in contact with materials are made of 304 stainless steel, in line with food grade requirements.
3. Its structure design is reasonable, small size, easy to operate.
4. There are filling volume adjustment handle, filling speed can be adjusted, filling high precision.
5. We can accord to customer's requirements to design the filling volume.
Horizontal single head paste filling machine is the ideal equipment for filling paste and liquid.
The machine is made of stainless steel, removable tool-free clean, simple and reasonable structure, The machine can be
foot-operated or auto mode control filling. It is widely used in pharmaceutical, chemicals for daily use, food, pesticides and
special industries.
Applications:
It is not only suitable for ketchup, detergent, honey and other paste, but also suitable for a variety of liquids, a wide range of uses.
Filling Principle:
The machine is a semi-automatic piston filling machine, which is driven by a cylinder to extract and eject material. The material flow is controlled by a three-way rotary valve. The stroke of the cylinder can be controlled by the reed switch. The filling volume can be adjusted, You can adjust the intake air cylinder to achieve rapid or slow filling.
Features:
1. This machine has two pneumatic filling ways, foot and automatic, and they can be switched randomly.
2. Parts in contact with materials are made of 304 stainless steel, in line with food grade requirements.
3. Its structure design is reasonable, small size, easy to operate.
4. There are filling volume adjustment handle, filling speed can be adjusted, filling high precision.
5. We can accord to customer's requirements to design the filling volume.
|
Model
|
|
RBGG
|
|
|
|||
|
Voltage
|
|
220V/110V 50HZ/60HZ
|
|
|
|||
|
Air pressure
|
|
0.4-0.6MPa
|
|
|
|||
|
Hopper volume
|
|
30L
|
|
|
|||
|
Filling range
|
|
5-100ml,20-300ml,20-500ml,100-1000ml,300-2000ml,500-3000ml,1000-5000ml
|
|
|
|||
|
Filling precision
|
|
less than 1%
|
|
|
|||
|
Filling speed
|
|
1-50 bottles per min
|
|
|
|||
|
Weight
|
|
35kg(20-500ml)
|
|
|
|||
|
Size
|
|
1060*360*390mm (100-1000ml)
|
|
|
|||
Product Images
Details Images
Suitable for filling good liquidity products, such as paste, sauce, water, oil, beverage, juice, drink, oil, shampoo, perfume etc
Packing & Delivery
1). Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably
2). After inspection, machine is wrapped by plastic film against damp and then carefully packed in standard export wooden case.
3). Air express, air freight and sea transportation can be provided by us.
shipping by sea: recommend big product or order batching .
air express : TNT, EMS, DHL, Fedex, UPS etc
2). After inspection, machine is wrapped by plastic film against damp and then carefully packed in standard export wooden case.
3). Air express, air freight and sea transportation can be provided by us.
shipping by sea: recommend big product or order batching .
air express : TNT, EMS, DHL, Fedex, UPS etc
