Quick Details
-
Brand Name:
-
LUY
-
Dimension(L*W*H):
-
20000*4000*4200mm
-
Capacity:
-
Customized
-
Weight:
-
3000
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
0.85-4.5Mpa
-
Design Standard:
-
1
-
Working Temperature(℃):
-
100 - 450 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
type:
-
vacuum autocalve price
-
temperature:
-
150-450 degree
-
diameter:
-
500-4500mm
-
length:
-
1000-20000m
-
design pressure:
-
0.5-5.0Mpa
-
cool down speed:
-
0.5-7 degree/min continouns adjustment
-
cool down ways:
-
water cool or wind cool
-
point temperature difference:
-
±1.2 degree
-
model vacuum degree:
-
-0.098Mpa
Quick Details
-
Volume (m³):
-
50
-
Max Working Pressure(MPa):
-
5 MPa
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LUY
-
Dimension(L*W*H):
-
20000*4000*4200mm
-
Capacity:
-
Customized
-
Weight:
-
3000
-
Inner Material:
-
Stainless steel
-
Outer Material:
-
Carbon steel
-
Design Pressure(MPa):
-
0.85-4.5Mpa
-
Design Standard:
-
1
-
Working Temperature(℃):
-
100 - 450 ℃
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
type:
-
vacuum autocalve price
-
temperature:
-
150-450 degree
-
diameter:
-
500-4500mm
-
length:
-
1000-20000m
-
design pressure:
-
0.5-5.0Mpa
-
cool down speed:
-
0.5-7 degree/min continouns adjustment
-
cool down ways:
-
water cool or wind cool
-
point temperature difference:
-
±1.2 degree
-
model vacuum degree:
-
-0.098Mpa

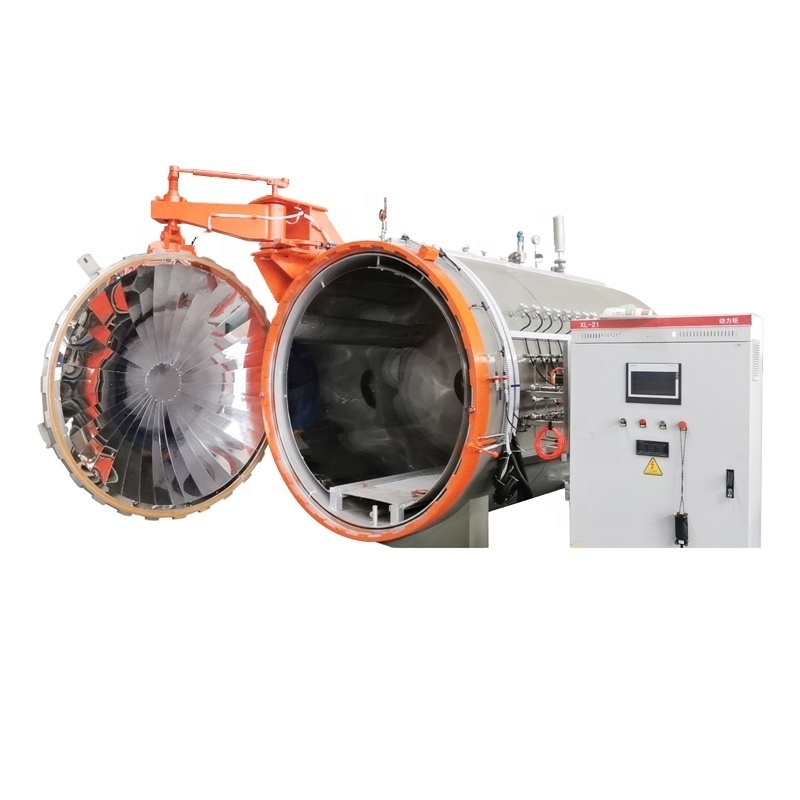

Best quality promotional composite curing autoclave for carbon fiber commercial
Technical Parameters:
| Item | data |
| Type | horizontal ,vertical |
| Heating ways | steam heat ,thermal oil heating ,elecricity heating ,electric heating air |
| Operation ways | automatic |
| Effective length | 1000-40000mm |
| Effective diameter | 500-5000mm |
| Working temperature | 100-450 degree |
| Working pressure | 0.5-5.0Mpa |
| Raising temperation speed | 0.1Mpa/min continuous adjustment |
| Temperature go down speed | ± 0.01Mpa |
| Cooling ways | 0.5-7 degree/min continuous adjustment |
| Point difference temperature | 0.5-7 degree/min continuous adjustment |
| Control temperature and test temperature point | Water cool and wind cool |
| Vacuum degree of cavity | -0.098Mpa (absolutely pressure ) |
| Extra vacuum pipe | Extract 2-20 pipe extract and test is independent |
| Test vacuum pipe | Test 2-20 pipe extract and test is independent |
| Safety device | automatic discharge pressure ,automatic feed water ,automatic alarm, the door has double safty interlock device |
Autoclave can realize temperature ,pressure ,cooling and process parameters timing ,real-time on line controlled equipment .Mainly device into below systems:
1. tightness of tank :it is made from tank ,tank door ,high temperature motor ,air duct heat partition layer to form into one high pressure resistant ,high temperature tank.
2. safety interlock : it is made from pressure automatic interlock ,manual interlock ,over pressure alarm device.
3. Quickly open door device :manual or automatic quickly open design ,even If power off ,it can start and close the door
4. Sealing device: the door adopt silica gel filling air ,it can bear 500 degree ,forming into one high temperature high pressure sealed container
5. Pressure system: pressure transfer and control system include air compressor ,storage tank ,pressure control valve ,pipe ,pressure transformer ,and pressure gauge .
6. Heating system: stainless steel heating pipe ,high temperature fan ,wind plate ,insulation layer ,temperature control system .heating power satisfy with inside tank max temperature requirement and raising temperature
7. Temperature circulation system :it made up of circulation fan ,wind plate ,and guide flow cover to improve heating transfer and circulation form into uniform temperature
8. Vacuum system :it made up of vacuum pump ,pipe ,vacuum gauge ,vacuum vale ,to supply composite material vacuum condition
9. Automatic control system: adopt PLD and fuzzy control ,to realize the pressure ,temperature ,cooling and so on full process high –precision control and in time record.
Usage:
why to choose industrial autoclave prices ?
1.Our ram material is national goverment pointed facmous steel factory ,and standard pressure vessel special plate ,Q345R .Each steel is tested before leaving factory .It have good bear pressure
2.heating area is uniform ,according to your working technology to design inside heating system ,we have special design heating sink ,,it is arranged in the up side ,bottom ,left side ,right side ,
3.Adopt external insulation ,the galvanized sheet is welded around the tank (it wont rust within 10 years),inside are 80mm insulation cottom ,heat insulation head add 60mm thermal insulation , then add fixed bolt .To make inside heating value can be used enough ,and reduce consumtion , save cost . and it is easy for transportation.
