Quick Details
-
Warranty:
-
25YEARS Power Output Warranty
-
Brand Name:
-
N.K Solar
-
Model Number:
-

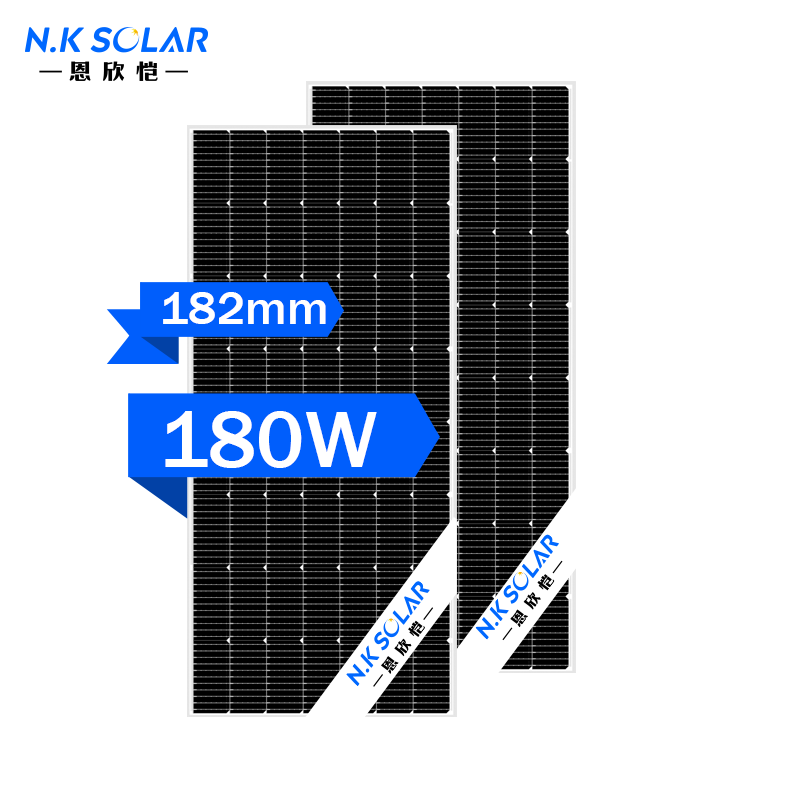

N.K-180W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*680*30mm
-
Weight:
-
10.3KG/Pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
monocrystalline silicon
-
Junction Box:
-
IP67 MC4 Connector
-
Packaging:
-
31pcs/ Pallet 1872pcs/ 40'HQ Container
-
Power Tolerance:
-
0~+3%
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Certificates:
-
CE,IEC61215
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
17.90%
-
Warranty:
-
25YEARS Power Output Warranty
-
Brand Name:
-
N.K Solar
-
Model Number:
-
N.K-180W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1480*680*30mm
-
Weight:
-
10.3KG/Pcs
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
monocrystalline silicon
-
Junction Box:
-
IP67 MC4 Connector
-
Packaging:
-
31pcs/ Pallet 1872pcs/ 40'HQ Container
-
Power Tolerance:
-
0~+3%
-
Front Glass:
-
3.2mm High Transparency Tempered Glass
-
Certificates:
-
CE,IEC61215
Product Paramenters
|
Electrical Parameters at STC
|
|
|
|
|
|
|
||||||
|
Maximum Power (Pmax/W)
|
180
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Module Efficiency(%)
|
17.90%
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
||||||
|
Open Circuit Voltage (Voc/V)
|
24.84
|
49.15
|
49.35
|
49.55
|
49.75
|
49.95
|
||||||
|
Short Circuit Current (lsc/A)
|
9.13
|
13.74
|
13.82
|
13.89
|
13.97
|
14.05
|
||||||
|
Voltage at Pmax (Vmp/V)
|
20.52
|
41.27
|
41.45
|
41.62
|
41.80
|
41.97
|
||||||
|
Current at Pmax (Imp/A)
|
8.78
|
12.85
|
12.91
|
12.98
|
13.05
|
13.11
|
||||||
|
Temperature Coefficient of Isc
|
+0.046%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Voc
|
-0.276%℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax
|
-0.350%℃
|
|
|
|
|
|
||||||
|
Mechanical Specification
|
|
|
|
|
|
|
||||||
|
Dimension
|
1480*680*30mm
|
530
|
535
|
540
|
545
|
550
|
||||||
|
Weight
|
10.3kg/pcs
|
20.50
|
20.70
|
20.90
|
21.10
|
21.30
|
||||||
|
Solar Cell
|
56pcs(7*8)
|
49.15
|
49.35
|
49.55
|
49.75
|
49.95
|
||||||
|
Junction Box
|
IP67
|
13.74
|
13.82
|
13.89
|
13.97
|
14.05
|
||||||
|
Connector
|
MC4, 4mm
2
, (+)1000mm,(-)1000mm [customizable]
|
41.27
|
41.45
|
41.62
|
41.80
|
41.97
|
||||||
|
Packing
|
31Pcs/Pallet
|
12.85
|
12.91
|
12.98
|
13.05
|
13.11
|
||||||
Quality Control
Before and Following Lamination ,Ensure NO micro crack or any other problem.
Ensure 100% perfect solar panel appearance
Ensure the parameters of the solar panel meet the power requirements
Packing
