Quick Details
-
Brand Name:
-
Juntuo
-
Weight:
-
12 KG, 10000KGS
-
Dimension(L*W*H):
-
4500x2300x2100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
High quality scrap iron tire steel wire copper baling press machine
-
Model:
-
Y81F-160
-
Nominal force:
-
1600KN
-
Chamber size:
-
1400*900*800mm
-
Bale Size:
-
350*350mm
-
Capacity:
-
2-2.5tons/ h
Quick Details
-
Voltage:
-
380V
-
Power:
-
22KW, 22KW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Juntuo
-
Weight:
-
12 KG, 10000KGS
-
Dimension(L*W*H):
-
4500x2300x2100mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
High quality scrap iron tire steel wire copper baling press machine
-
Model:
-
Y81F-160
-
Nominal force:
-
1600KN
-
Chamber size:
-
1400*900*800mm
-
Bale Size:
-
350*350mm
-
Capacity:
-
2-2.5tons/ h

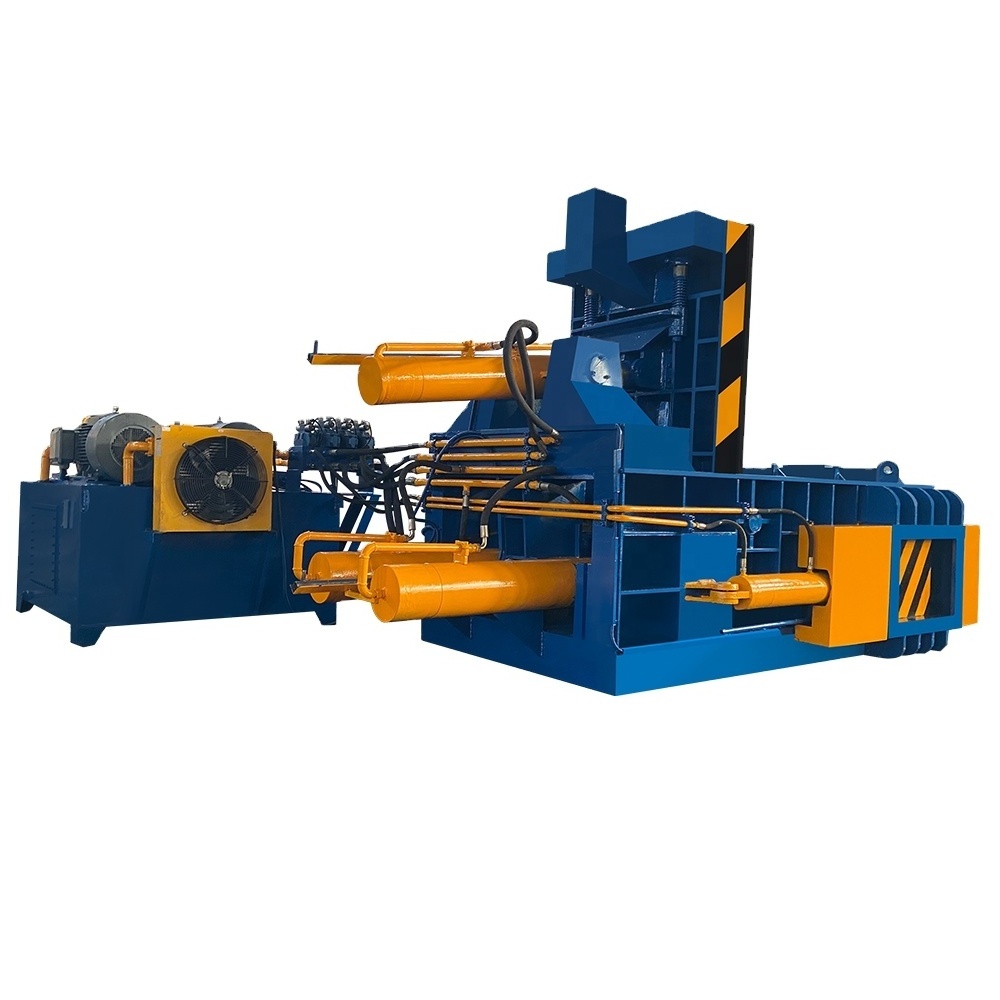

Hot sale 160 tons scrap metal compactor baling press machine for sale
|
Model |
Nominal Force (KN) |
Chamber size (mm) |
Bale size (mm) |
Capacity (KG/H) |
Single cycle time(s) |
Motor power(KW) |
|
Y81F-125A |
1250 |
1200x700x600 |
300x300 |
1200-1800 |
≤100 |
15 |
|
Y81F-135A |
1350 |
1400x900x700 |
350x350 |
1800-2200 |
≤110 |
22 |
|
Y81F-160 |
1600 |
1400x900x800 |
350x350 |
2000-2800 |
≤120 |
22 |
|
Y81F-160A |
1600 |
1600x1000x800 |
400x400 |
2000-3500 |
≤120 |
22 |
|
Y81F-160B |
1600 |
1600x1200x800 |
400x400 |
2200-4000 |
≤130 |
30 |
|
Y81T-200A |
2000 |
1600x1200x800 |
450x450 |
2500-4500 |
≤130 |
30,37 |
|
Y81F-250A |
2500 |
1800x1200x900 |
500x500 |
4000-6000 |
≤140 |
44,60 |
|
Y81F-250B |
2500 |
2000x1400x900 |
500x500 |
5000-6300 |
≤150 |
44,60 |
|
Y81F-315A |
3150 |
2000X1400X1200 |
500X500 |
5000-6500 |
≤150 |
60,74 |
|
Y81F-315B |
3150 |
2000x1750x1200 |
600x600 |
5000-7000 |
≤160 |
60,74 |
|
Y81F-315C |
3150 |
2500x2000x1200 |
600x600 |
6000-7500 |
≤160 |
74 |
|
Y81F-400B |
4000 |
2500x2000x1200 |
600x600 |
7500-9000 |
≤160 |
90 |
|
Y81F-400C |
4000 |
3000x2000x1300 |
700x700 |
8000-10000 |
≤180 |
90 |
|
Y81F-400D |
4000 |
3000x2500x1300 |
700x700 |
9000-12000 |
≤180 |
135 |
Package: Film wrapped, eco-friendly and well protect the machine.
Shipping: Based on rich export experience, always choose the favourable and profesional shipping line, to
save the cost and transport time.
1. Installation, training and after-sale service
2. ExcellentOEM, o ur design, producing, QC and R&D are strictly followed ISO9001, the best process and quality control system
3. Top brand parts, prompt delivery time and 12-24 months warranty.
