Quick Details
-
Brand Name:
-
SWFS
-
Material:
-
High quality imported steel
-
Chain pitch:
-
3/8"
-
Chain gauge:
-
0.063"/1.6mm
-
Chain saw inch:
-
20-inch
-
Chain length:
-
72 links / 36 segments
-
One roll length:
-
100foot / 30.4meters/ 816 segments / 1632 links
-
Weight:
-
0.68kg
-
OEM:
-
Accepted
Quick Details
-
Type:
-
Garden tool parts
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
3/8.063
-
Brand Name:
-
SWFS
-
Material:
-
High quality imported steel
-
Chain pitch:
-
3/8"
-
Chain gauge:
-
0.063"/1.6mm
-
Chain saw inch:
-
20-inch
-
Chain length:
-
72 links / 36 segments
-
One roll length:
-
100foot / 30.4meters/ 816 segments / 1632 links
-
Weight:
-
0.68kg
-
OEM:
-
Accepted
|
Brand name
|
SWFS
|
Chain gauge
|
0.063"/1.6mm
|
|
Chain pitch
|
3/8"
|
Characteristic
|
every link has one blade
|
|
Chain saw inch
|
20-inch
|
Chain length
|
72 link /36 blades
|
|
Weight
|
0.7kg
|
Material
|
High quality imported steel
|
|
OEM
|
Accepted
|
Carton size
|
47x24x27cm/30sets,21.5kgs/ctn
|

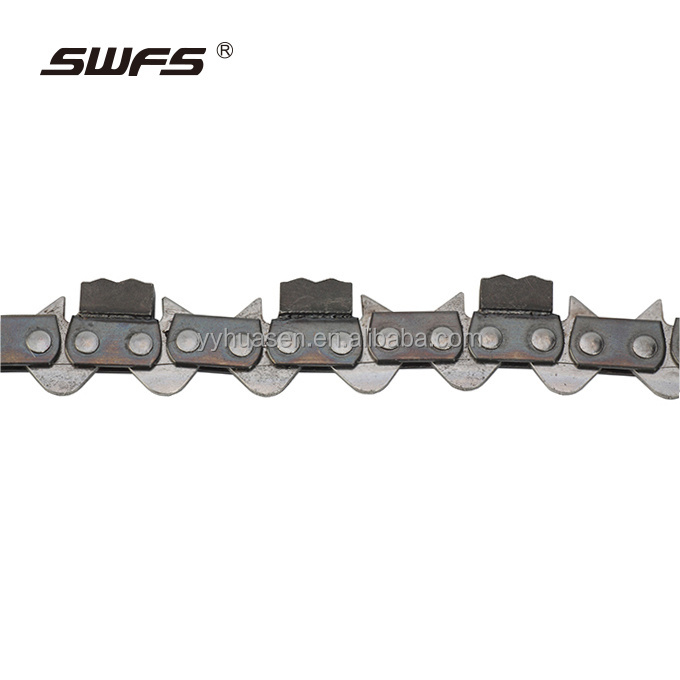

Chain Saw for Stone S pecifications
The Diamond Chain is equipped
with high frequency PRIMETM technology, making it a very powerful electric chain cutter.The high power output and low vibrations make the machine very efficient and easy to use. With Diamond Chain it is possible to cut 450 mm deep from one side, making the machine a great complement to wall saws to avoid overcutting at corners.
It is a also ideal for cutting irregular or small openings (as small as 11x11 cm).The PRIMETM product range enables you to combine the system that is most efficient for your business.
3/8" Gauge 0.063 Diamond C hain Saw for Chinese ChainSaw Chain Application
·450 mm deep cuts
·Deep cutting
·Precise cut of corners
·Irregular deep cutting perfect for small openings
·Adjustment to openings
·Pipe trenches
·Pipes
·Ventilation ducts
·Load-bearing beams installation
·Concrete, stone and masonry
About process innovation,we used 3 key technologies
(1) Welding technology----the diamond are arranged in order
It forces diamonds evenly distributed in the blade and thus every diamond bears same pressure while cutting.Using this technology will optimize both the service life and cutting ability.
(2) Laser welding technology---saltatory
It minimizes negative effects of plasma generated in the laser welding process.So,our diamond concrete chain saw has reached global advanced level.
(3) Incorporating seal technology
Laser welded diamond segments incorporating Seal technology for longer life than competing chains.
Proper Chian Tension:
A properly tensioned chain will optimize cutting performance. The tensioning rule of thumb for a concrete cutting chain saw is that a properly tensioned diamond chain must not be bowstring tight and can be pulled freely around the guide bar by hand easily without binding.
Additional Tensioning Tips:
1. To reduce chain stretch and tensioning downtime,use 20 psi (1.5 bar) or greater water pressure.
2. Oil the chain at the end of the day to prevent rust but be careful not to over tension in this condition.
3. When pulling the chain around the bar by hand,be careful not to touch the bar with thumb or forefinger.The bar rails can be very sharp. Grab only the diamond segments to pull the chain.
4. Always pull the chain away from the WallWalker.The point of the WallWalker® can also be very sharp.
5. Always turn the engine off before tensioning the chain.
