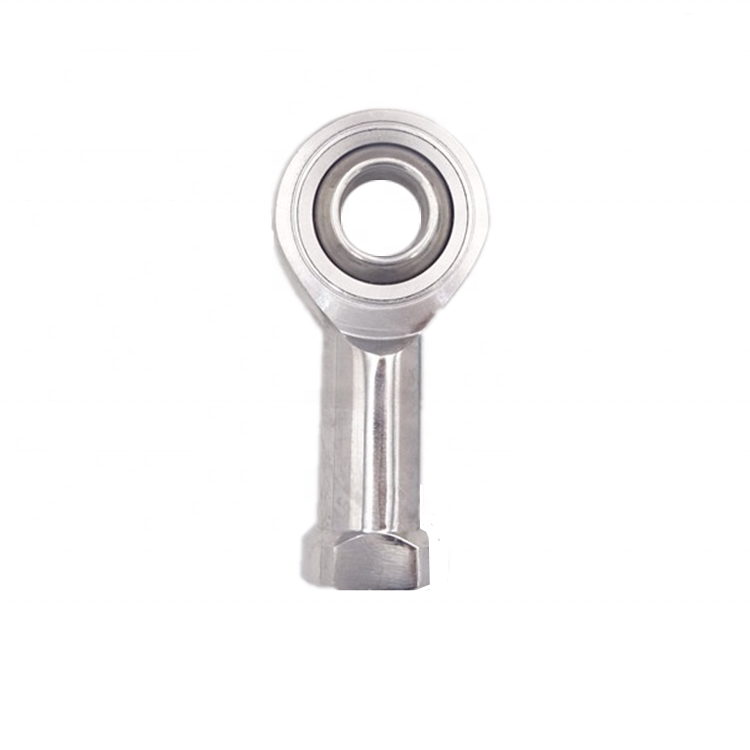

SI16T/K Self-lubricating fish eye stainless steel ball joint rod end bearing M16x2.0 internal thread rod end joint bearing

SI16T/K Self-lubricating fish eye stainless steel ball joint rod end bearing M16x2.0 internal thread rod end joint bearing

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5

≥100 Pieces

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SI16T/K

Place of Origin:: Shandong, China

Material:: Chrome steel

Payment::: Paypal/TT/Western Union

Material::: Chrome steel/GCr15 stainless steel

Cage Material:: Steel Cage, Copper Cage,Brass Cage

Application:: machines,roller skate

Certificate:: ISO9001:2000

Service:: OEM Customized Services

Packing:: Boxes

Quick Details

Applicable Industries:: Printing Shops

Precision Rating:: P0 P6 P5 P4 P2

Brand Name:: LLH

Model Number:: SI16T/K

Place of Origin:: Shandong, China

Material:: Chrome steel

Payment::: Paypal/TT/Western Union

Material::: Chrome steel/GCr15 stainless steel

Cage Material:: Steel Cage, Copper Cage,Brass Cage

Application:: machines,roller skate

Certificate:: ISO9001:2000

Service:: OEM Customized Services

Packing:: Boxes

Product Description

Joint bearing structure than simply rolling bearing, which is dominated by an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for tilting movement within a certain range of angles (ie,aligning movement), the supporting shaft misalignment and shaft housing bore when a large degree, still work.

Feature :

Self-aligning,High temperature resistance,carrying capability,self-lubrication

Application :

Engineering hydraulic cylinders,Forging machines,Construction machinery, Auto shock absorber etc

Product Name	Rod End Bearing
Precision Rating	P0, P6, P5, P4, P2
Material	Bearing Steel (GCr15)
Clearance	C0 C1 C2 C3 C4 C5
Vibration & Noisy	Z1,Z2,Z3 V1,V2,V3
Seal	2RS, RS
Features	High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction
Certification	ISO 9001:2008
Packing	1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize
Delivery Time	30 - 45 Days After The Order is Confirmed
Shippment	1.By Sea 2.By Air 3.By Express
Website	https://www.bearing-manufacturers.com/

Related Models

ITEM	Dimension(mm)														Weight
	d	d3	B	C1	L3	W	d2	h1	L4	L5	d4	d5	dk	a	kg
		6H			min									≈
SI5T/K	5	M5x0.8	8	6	10	9	18	27	36	4	8.5	11	11.11	13	0.016
SI6T/K	6	M6x1.0	9	6.75	12	11	20	30	40	5	10	13	12.7	13	0.022
SI8T/K	8	M8x1.25	12	9	16	14	24	36	48	5	12.5	16	15.875	14	0.047
SI10T/K	10	M10x1.5	14	10.5	20	17	28	43	57	6.5	15	19	19.05	13	0.077
SI10-1T/K	10	M10x1.25	14	10.5	20	17	28	43	57	6.5	15	19	19.05	13	0.077
SI12T/K	12	M12x1.75	16	12	22	19	32	50	66	6.5	17.5	22	22.225	13	0.1
SI12-1T/K	12	M12x1.25	16	12	22	19	32	50	66	6.5	17.5	22	22.225	13	0.1
SI14T/K	14	M14x2.0	19	13.5	25	22	36	57	75	8	20	25	25.4	16	0.16
SI14-1T/K	14	M14x1.5	19	13.5	25	22	36	57	75	8	20	25	25.4	16	0.16
SI16T/K	16	M16x2.0	21	15	28	22	42	64	85	8	22	27	28.575	15	0.22
SI16-1T/K	16	M16x1.5	21	15	28	22	42	64	85	8	22	27	28.575	15	0.22
SI18T/K	18	M18x1.5	23	16.5	32	27	44	71	93	10	25	31	31.75	15	0.32
SI20T/K	20	M20x1.5	25	18	33	30	50	77	102	10	27.5	34	34.925	14	0.42
SI22T/K	22	M22x1.5	28	20	37	32	54	84	111	12	30	38	38.1	15	0.54
SI25T/K	25	M24x2.0	31	22	42	36	60	94	124	12	33.5	42	42.86	15	0.72
SI28T/K	28	M27x2.0	35	24	51	41	66	103	136	14	37	46	47.63	15	0.82
SI30T/K	30	M30x2.0	37	25	51	41	70	110	145	15	40	50	50.8	17	1.1
SI30-1T/K	30	M27x2.0	37	25	51	41	70	110	145	15	40	50	50.8	17	1.1
SI35T/K	35	M36x2.0	43	28	56	50	81	125	165.5	17	46	58	57.15	16	1.6
SI40T/K	40	M42x2.0	49	33	60	55	91	142	187.5	19	53	65	66.67	16	2.4
SI50T/K	50	M48x2.0	60	45	65	65	117	160	218.5	23	65	75	82.5	12	5

Our Service

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Our company

Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.

The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.

We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.

FAQ

Q: Are you trading company or manufacturer ?

A: We are the manufacture of bearings for more than 20 years, "Quality is our culture".

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What causes bearing noise?

A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
