Quick Details
-
Power:
-
472kW
-
Dimension(L*W*H):
-
41500*35000*2300mm
-
Weight:
-
2250 kg
-
Maximum stand-alone power:
-
110kW
-
Total installed power:
-
472kW
-
Dust emission concentration (bag dust):
-
≤20(Washing material)mg/Nm³
-
Mixing capacity:
-
2250kg /batch
-
Fuel consumption rate:
-
≤6.5kg/t
Quick Details
-
Place of Origin:
-
Jiangsu,China
-
Brand Name:
-
top brand
-
Voltage:
-
220V/380V-50HZ
-
Power:
-
472kW
-
Dimension(L*W*H):
-
41500*35000*2300mm
-
Weight:
-
2250 kg
-
Maximum stand-alone power:
-
110kW
-
Total installed power:
-
472kW
-
Dust emission concentration (bag dust):
-
≤20(Washing material)mg/Nm³
-
Mixing capacity:
-
2250kg /batch
-
Fuel consumption rate:
-
≤6.5kg/t
Contact way
Mila Zhang
Sales Manager
Mobile / Whatsapp/ Wechat: +86-15300613007
E-mail: mila@newindu.com
Web: www.newindu.com

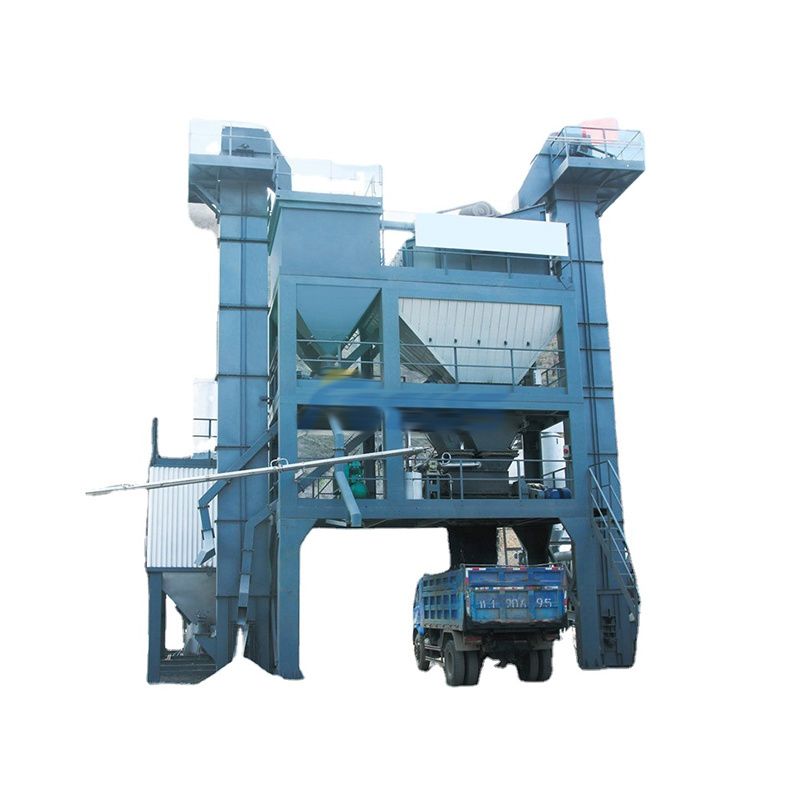

Portable Factory Price 160t/h Asphalt Batching Plant XAP160 With Ce Certification
Products Description
1. XAP160 Asphalt Mixture Mixing Plant is a self-developed product of China top brand which has internationally advanced level.
2. The equipment can produce various gradations of asphalt mixture, modified asphalt mixture and warm mixing asphalt mixture, support the use of hot regeneration equipment and foam asphalt equipment, it can fully meet the engineering need of highway, grade roads, municipal roads, airports, dams, freight yard.
2. The equipment can produce various gradations of asphalt mixture, modified asphalt mixture and warm mixing asphalt mixture, support the use of hot regeneration equipment and foam asphalt equipment, it can fully meet the engineering need of highway, grade roads, municipal roads, airports, dams, freight yard.
3. XAP160 Asphalt Mixture Mixing Plant has obtained many inventions and utility model patents, which have been applied to the equipment.
4. The equipment has a screening accuracy control technology, expert database intelligent precision weighing technology, asphalt secondary weighing technology, intelligent feeding material compensation technology, PID control and expert control technology, intelligent combustion technology, high efficiency dust removal technology, intelligent fault diagnosis technology, which embody the core features of reliable, advanced, intelligent, green of Asphalt Mixture Mixing Plant.
4. The equipment has a screening accuracy control technology, expert database intelligent precision weighing technology, asphalt secondary weighing technology, intelligent feeding material compensation technology, PID control and expert control technology, intelligent combustion technology, high efficiency dust removal technology, intelligent fault diagnosis technology, which embody the core features of reliable, advanced, intelligent, green of Asphalt Mixture Mixing Plant.
Technical Specifications
|
Description
|
Unit
|
|
Parameter value
|
|
|
Rated production rate |
t/h |
|
160 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mixing capacity
|
kg /batch
|
|
2250
|
|
|
Fuel consumption rate
|
kg/t
|
|
≤6.5
|
|
|
Dust emission concentration (bag dust)
|
mg/Nm³
|
|
≤20(Washing material)
|
|
|
Blackness of exhaustion(Ringelman Level)
|
Level
|
|
≤I
|
|
|
Static measurement accuracy |
Aggregate
|
%
|
±0.3
|
|
|
|
Powder
|
%
|
±0.3
|
|
|
|
Asphalt
|
%
|
±0.2
|
|
|
Dynamic measurement accuracy |
Aggregate
|
%
|
±2.5
|
|
|
|
Powder
|
%
|
±2.5
|
|
|
|
Asphalt
|
%
|
±2.0
|
|
|
Total installed power
|
kW
|
|
472
|
|
|
Maximum stand-alone power
|
kW
|
|
110
|
|
|
Occupied area
|
m2
|
|
1076(33m×32.7m)
|
|
