Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yom
-
Model Number:
-
XZ-600A
-
Output Frequency:
-
50/60HZ
-
Size:
-
255*160*105mm
-
Weight:
-
1.2kg
-
Product name:
-

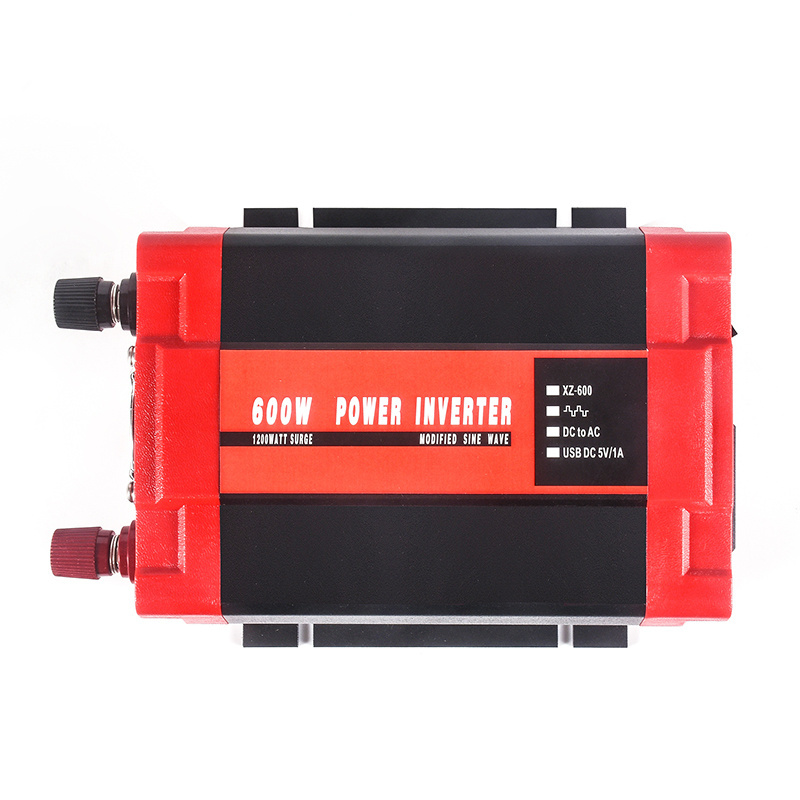

Ups 15a 600W Solar Inverter 600W With Charger 12v 220v
-
Warranty:
-
2 years
-
Protection:
-
Shut off output automatically
-
Rated power:
-
600W
-
Output waveform:
-
Modified Sine Wave Output
-
Efficiency:
-
High Efficiency
-
Certificate:
-
CE ROHS, CE
-
Display:
-
LCD Screen
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Inverter
Quick Details
-
Output Current:
-
1A
-
Network:
-
OFF GRID
-
Customized support:
-
OEM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yom
-
Model Number:
-
XZ-600A
-
Output Frequency:
-
50/60HZ
-
Size:
-
255*160*105mm
-
Weight:
-
1.2kg
-
Product name:
-
Ups 15a 600W Solar Inverter 600W With Charger 12v 220v
-
Warranty:
-
2 years
-
Protection:
-
Shut off output automatically
-
Rated power:
-
600W
-
Output waveform:
-
Modified Sine Wave Output
-
Efficiency:
-
High Efficiency
-
Certificate:
-
CE ROHS, CE
-
Display:
-
LCD Screen
-
Application:
-
Solar Power System Home
-
Inverter type:
-
Off-grid Inverter
Honest marketing
1.
100% full power
of the product.
2.
Six intelligent protection functions to protect your safety.
3.
The enterprise has passed
ISO9001, RoHS and other certification.
4.
The products have passed
CE, FCC and other certification
.
5.
The product has obtained more than 20 patents.
6.
Source enterprises, direct sales of manufacturers.
The engineering and technical team will tailor your exclusive products for you.
Solar Inverter 300W-3000W, LED/LCD digital display, 2times peak power,high frequency type with transformer. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.
| Model | XZ-600A | ||
| Input | DC voltage | 12VDC | 24VDC |
| Voltage range | 9.5-15.5VDC | 19.5-31.5VDC | |
| No load current draw | 0.5A | 0.2A | |
| Efficiency | 90% | ||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |
| Continuous power | 600W | ||
| Surge power | 1200W | ||
| Waveform | Modified sine wave | ||
| Frequency | 50Hz or 60Hz | ||
| USB Output | 5VDC 1A | ||
| Protection | Low voltage alarm | 10.5±0.5VDC | 21.5±0.5VDC |
| Low voltage shut down | 9.5±0.5VDC | 19.5±0.5VDC | |
| Over voltage shut down | 15.5±1VDC | 31.5±0.5VDC | |
| Short circuit | Shut off output automatically | ||
| Over load | Shut off output automatically | ||
| Over thermal | Shut off output automatically | ||
| Environment | Working temperature | -10℃ and +50℃. | |
| Working humidity | 20%~90%RH | ||
| Storage temperature | -30℃ ~ +70℃ | ||
| Package | Machine size(L*W*H)mm | 192*142.2*65.1 | |
| Net weight KG | 0.9 | ||
| Gross weight KG | 1.2 | ||
| Packing size mm | 255*160*105 | ||
| Package quantity pcs | 20 | ||
| Outer packing size mm | 550*340*530 | ||
| Total weight KG | 23.9 | ||
